About this product
A single-row deep groove ball bearing (thrust type) with a 30 mm bore diameter, 60 mm outside diameter, and 21 mm height. The bearing comprises a shaft ring, housing ring, and steel cage with balls, and is suitable for gearboxes, pressure spindles, and stand jacks. It has a dynamic radial load capacity of 35.8 kN and static radial load capacity of 65.5 kN, with a limiting speed of 88.3 r/s (3800 r/min reference rotation speed). The bearing is manufactured from bearing steel with an open sealing arrangement and a flat back face washer, and is designed to absorb axial forces in one direction with low axial installation height and high axial load-bearing capacity. The bearing weighs 261 g and is supplied as a single piece with EAN 7316577058737.
Product details
| Application range | Gearbox, Pressure spindles, Stand jacks |
|---|---|
| Basic radial load dynamic | 35800 N |
| Basic radial load static | 65500 N |
| Bearing material | Bearing steel |

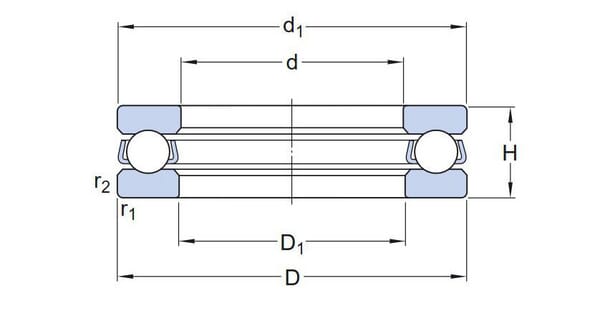

| Bore diameter | 30 mm |
| Cage material | Steel |
| Consists of | Shaft ring, Housing ring, Cage with balls |
| Height | 21 mm |
| Inner diameter | 32 mm |
| Limiting speed | 88.3 r/s |
| Original number equivalent | 51306 |
| Outside diameter | 60 mm |
| Properties | Absorbs axial forces in 1 direction, Low axial installation height, High axial load-bearing capacity |
| Ref rotation speed | 3800 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Washer type | Flat back face |
| Weight | 0.252 kg |
Logistics
| EAN | 7316577058737 |
|---|---|
| Unit of measure | EA |
| Weight | 261 g |
| Dimensions | 70 × 70 × 30 mm |
| Dangerous goods | No |
