£51.88
excl. VAT
£62.26 incl. VAT
£62.26
incl. VAT
£51.88 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | As connection plug for electronics under the engine cover, on transmissions or in cabs |
|---|---|
| Benefits | Designed specifically for dirty environments, Wear-resistant plastic, Very user-friendly |
| Cable position type - connection no 1 | Standard |
| Connection 1, type - male/female | Female |
| Connection 2, connection type | DS16 |
| Connection 3, connection type | DS16 |
| Connection type | DS16 |
| Consists of | Individual components (self-assembly plug) |
| Content in sale unit | 1 pcs |
| Details | Dustproof and waterproof, Thermoplastic housing, Easy mounting |
| DIN standard | 40050 |
| Electric application category | Signal, Sensor |
| Housing material | Plastic |
| Max working temperature | 125 °C |
| Min working temperature | -55 °C |
| Nominal voltage | 250 V |
| Nominal voltage range | 12-48 V |
| Number of poles | 23 |
| Properties | Housing size: Shell 18 & Shell 24, Integrated cable seal, Silicone seal |
| Protection class IP | 6K9K |
| Series | HDP |
| Technical info | HDP20 is the plastic version of HD30 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 52 g |
| Dimensions | 50 × 50 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000250407

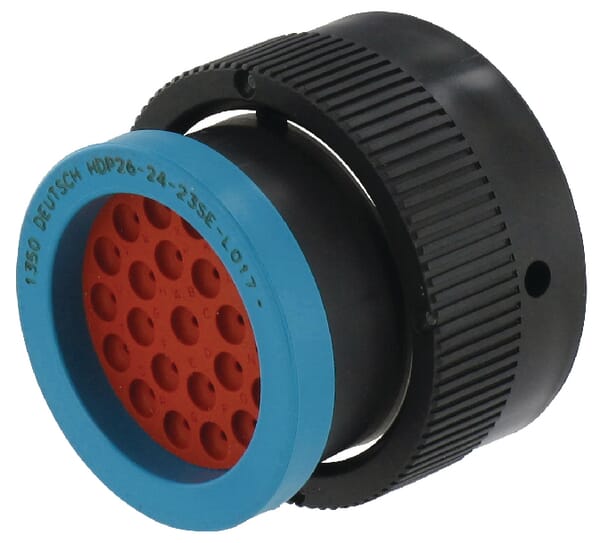

TE Connectivity DEUTSCH Plug housing 23 P. Female HDP20 DSHDP262423SEL017
£69.72 excl.
£83.66 incl.
In stock
Expected to ship on Friday 18 September
BPA000250338

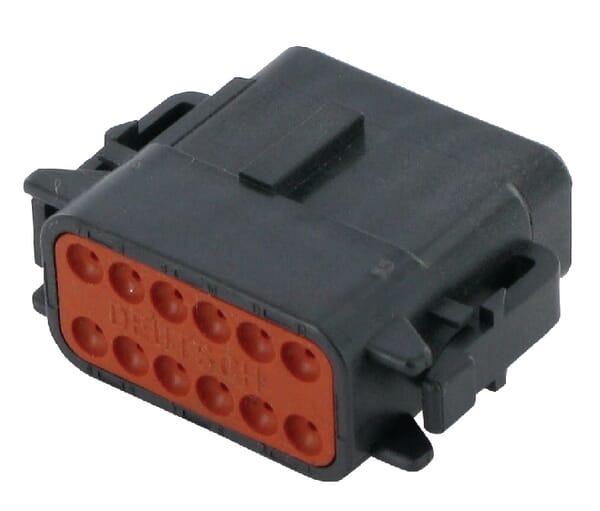

TE Connectivity DEUTSCH Plug housing male, black, 12 poles Series DTM (1x), Deutsch DSDTM0612SB
£5.81 excl.
£6.97 incl.
In stock
Expected to ship on Thursday 17 September
BPA000250301

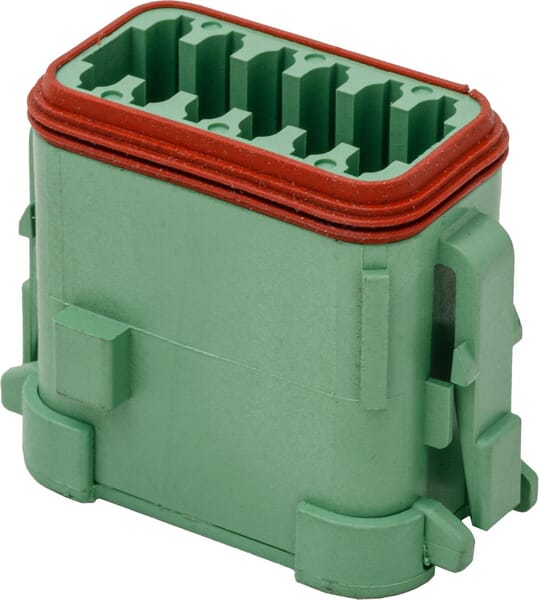

TE Connectivity DEUTSCH Socket 12 Pin DT-C C DSDT0612SCCE05
£13.61 excl.
£16.33 incl.
In stock
Expected to ship on Friday 18 September
BPA000250311

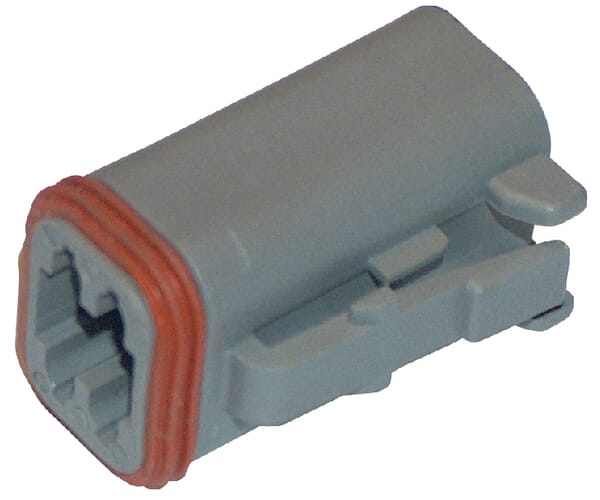

TE Connectivity DEUTSCH Plug housing 4 pole female DT DSDT064S
£2.11 excl.
£2.53 incl.
In stock
Expected to ship on Thursday 17 September
BPA000249806

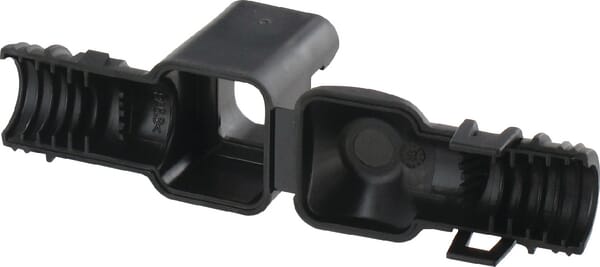

TE Connectivity DEUTSCH Cable guide DT064S 90 DS10112640405
£2.77 excl.
£3.32 incl.
In stock
Expected to ship on Friday 18 September
BPA000250370

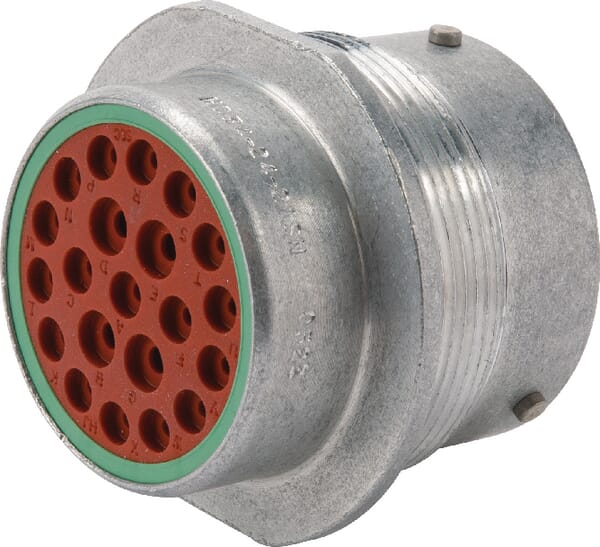

TE Connectivity DEUTSCH Plug housing 21 P. Female HD30 DSHD342421SN
