£73.27
excl. VAT
£87.92 incl. VAT
£87.92
incl. VAT
£73.27 excl. VAT
In stock
Expected to ship on Friday 18 September

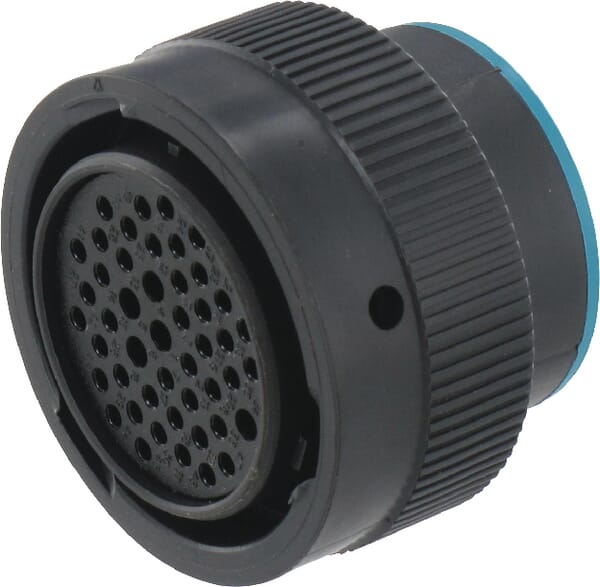

Product details
| Application range | As connection plug for electronics under the engine cover, on transmissions or in cabs |
|---|---|
| Benefits | Designed specifically for dirty environments, Wear-resistant plastic, Very user-friendly |
| Cable position type - connection no 1 | Standard |
| Connection 1, type - male/female | Female |
| Connection 2, connection type | DS20 |
| Connection 3, connection type | DS16 |
| Connection type | DS16 |
| Consists of | Individual components (self-assembly plug) |
| Content in sale unit | 1 pcs |
| Details | Dustproof and waterproof, Thermoplastic housing, Easy mounting |
| DIN standard | 40050 |
| Electric application category | Signal, Sensor |
| Housing material | Plastic |
| Max working temperature | 125 °C |
| Min working temperature | -55 °C |
| Nominal voltage | 250 V |
| Nominal voltage range | 12-48 V |
| Number of poles | 47 |
| Properties | Housing size: Shell 18 & Shell 24, Integrated cable seal, Silicone seal |
| Protection class IP | 6K9K |
| Series | HDP |
| Technical info | HDP20 is the plastic version of HD30 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 57 g |
| Dimensions | 50 × 50 × 37 mm |
| Dangerous goods | No |
You might also like
BPA000249809

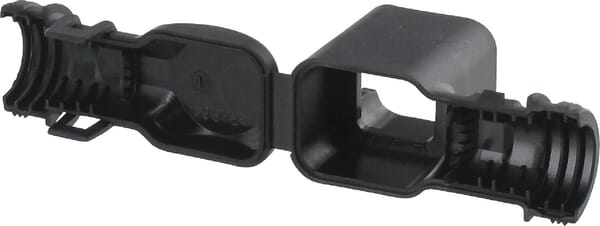

TE Connectivity DEUTSCH Cable guide DT066S 90 DS10112680605
