£1,357.35
excl. VAT
£1,628.82 incl. VAT
£1,628.82
incl. VAT
£1,357.35 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Big balers, Round balers, Mowers |
|---|---|
| Benefits | Torque retention, Smooth transition, Easier coupling when PTO shaft is braked, Wide range of applications |
| Clutch type code | FK96/4R |
| Connection locking type | Clamp cone |
| Cross cap diameter | 36 mm |
| Cross length | 100 mm |

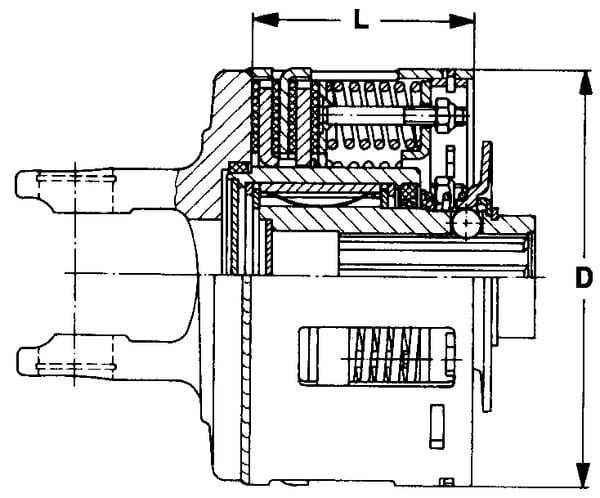

| Details | Combination of freewheel and friction disc clutch, Absorbs peak loads for short periods, Protection for subsequent mass, Max. torque adjustable via circlip |
| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 90 mm |
| Long description | Friction and overrunning clutches with spring pack FK96 / 4 cpl. 2400, 2500 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1500 N·m |
| Original number equivalent | 1101661 |
| Properties | Depending on the direction of rotation, Power transmission via friction discs, No noise during friction, Noise when freewheeling, Suitable as a starting clutch |
| Shaft size code | W2500 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8432970131255 |
|---|---|
| Unit of measure | EA |
| Weight | 12710 g |
| Dimensions | 240 × 165 × 165 mm |
| Dangerous goods | No |
You might also like
BPA000190887
Walterscheid Guard cone SD25-W2480 FLEXO 850102
£24.45 excl.
£29.34 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400928

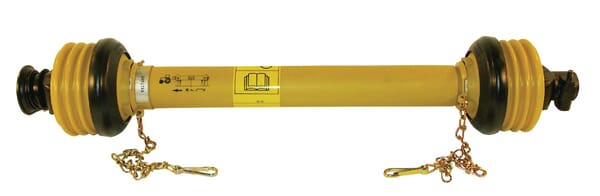

Walterscheid PTO shaft W400E L: 1010mm with shear bolt clutch, W400E1010KB6120
£432.52 excl.
£519.02 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000066654

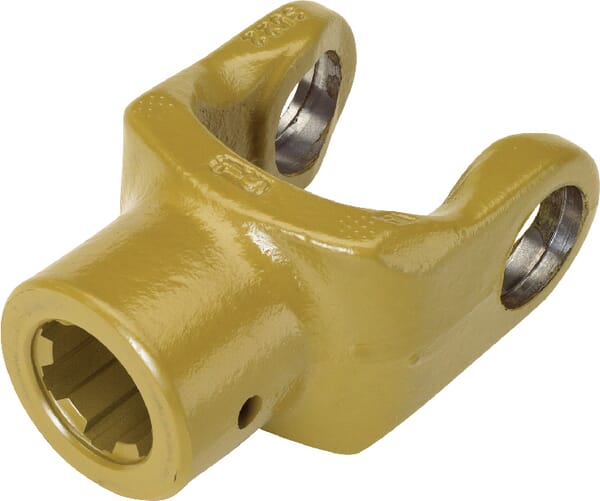

Walterscheid Yoke, Hub, 1-3/8"-6 spline, W2300/P300/W300E 2170123
£161.41 excl.
£193.69 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000356985

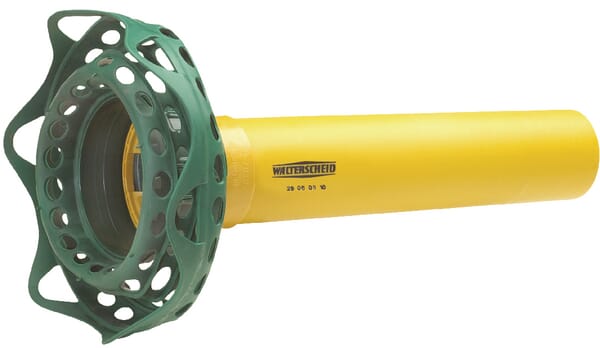

Walterscheid PTO outer half guard SD25, L: 1500mm SD251500AWWZFLEX
£138.61 excl.
£166.33 incl.
In stock
Expected to ship on Thursday 17 September
BPA000056488

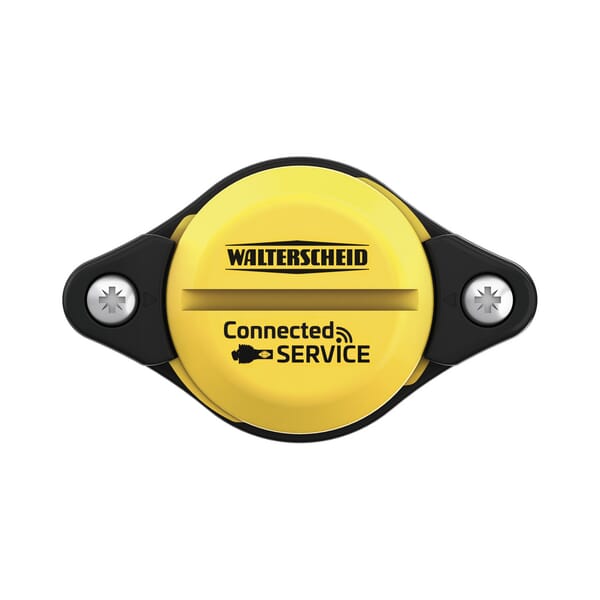

Walterscheid WCS Counter 1697799
£50.95 excl.
£61.14 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000140459

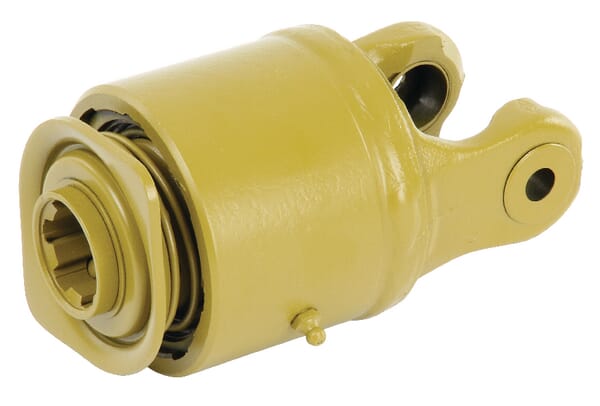

Walterscheid Radial pin clutch K34M 5562203120
