£567.32
excl. VAT
£680.78 incl. VAT
£680.78
incl. VAT
£567.32 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September

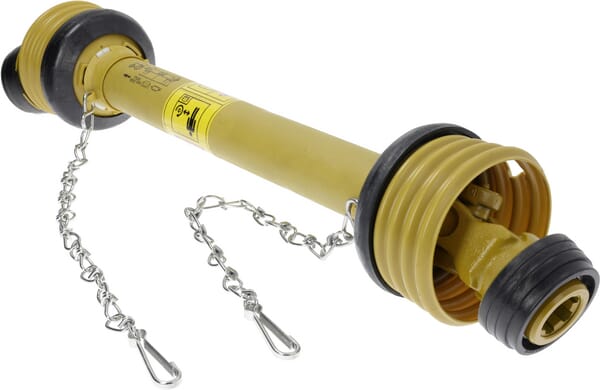

Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Includes | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | Ov |
| Inner tube wall thickness | 4 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max static torque | 2500 N·m |
| Original number equivalent | 1800051 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1 |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |

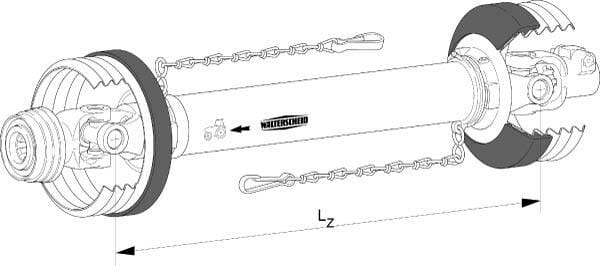

| Product details | Tension side 1-3/8" (6) shaft collar kit, Machine side 1-3/8" (6) collar lock, Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available, See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection, Application: Mower, Harvesters, Seeders |
| Profile tube shape | Lemon |
| Protection type | ST15 |
| Size code | W2300 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12100 g |
| Dimensions | 1400 × 190 × 190 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000143255
Walterscheid Hub FK96/4 1.3/8-6 561963
£514.66 excl.
£617.59 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000152583

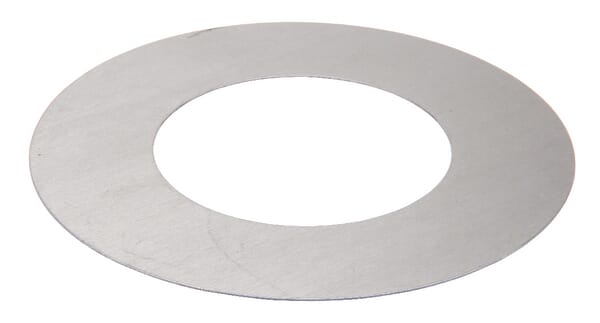

Walterscheid Disc 64x118x0.5 606800
£8.05 excl.
£9.66 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000098235
Walterscheid Yoke, profile tube, 40x36mm -20 spline, W2400/P400 3570103
£180.92 excl.
£217.10 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000143237
Walterscheid Hub F5/1 1.3/8 for clampbolt 561914
£199.41 excl.
£239.29 incl.
In stock
Expected to ship on Thursday 17 September
BPA000044947

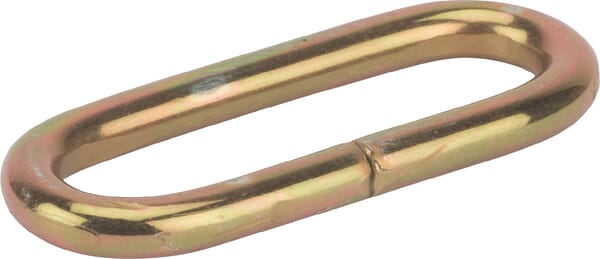

Walterscheid Chain link 1307632
£1.10 excl.
£1.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144485

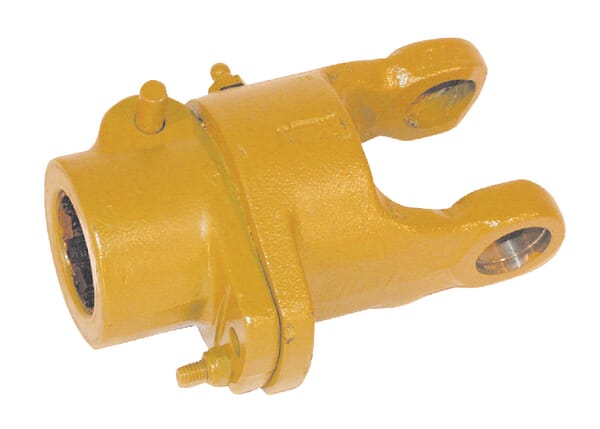

Walterscheid Shearbolt clutch KB61/1 5711312
