£581.38
excl. VAT
£697.66 incl. VAT
£697.66
incl. VAT
£581.38 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mowers, Harvesters, Fertiliser mixers |
|---|---|
| Attachment machine side | Friction clutch |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | K90 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with joint and guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Inner tube large outside diameter | 49 mm |
| Inner tube profile | 1b |
| Inner tube wall thickness | 4.5 mm |
| Length | 1010 mm |
| Locking type by machine side | Clamp bolt (interfering) |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 1350 N·m |
| Max static torque | 3400 N·m |
| Original number equivalent | 1800031 |
| Outer tube large outside diameter | 57.5 mm |
| Outer tube profile | 2a |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Machinery side 1-3/8" (6) quick release coupling, Lubrication interval: 8 hours, CE marking awarded |
| Protection type | SD25 |
| Size code | W400E |
| Technical info | Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at a working angle of 5° and service life 700 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 27000 g |
| Dimensions | 1300 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400927
Walterscheid PTO shaft W400E L: 1010mm with friction clutch, W400E1010K924
£551.50 excl.
£661.80 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000400837

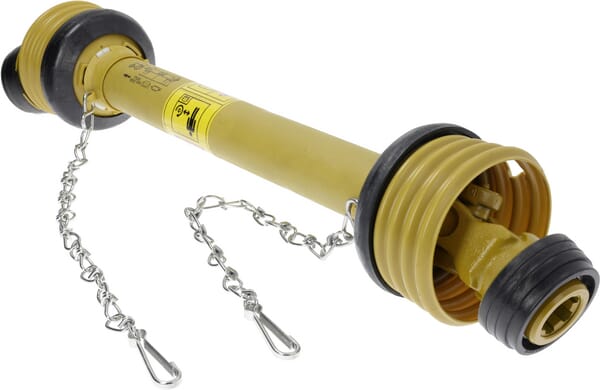

Walterscheid PTO shaft W2400 L: 860mm, W2400860
£480.86 excl.
£577.03 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000092569
Walterscheid Yoke, Clamp bolt, 1-3/8"-21 spline, W2400/P400/W400E 351006
£183.30 excl.
£219.96 incl.
In stock
Expected to ship on Thursday 17 September
BPA000188728

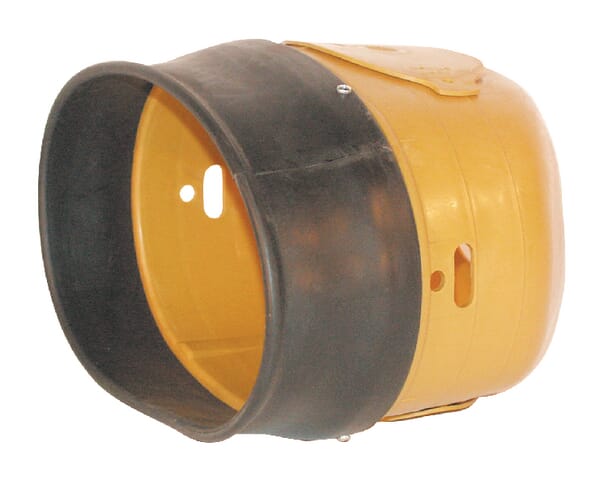

Walterscheid Guard cone+rubber collar 827600
£91.46 excl.
£109.75 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000189722

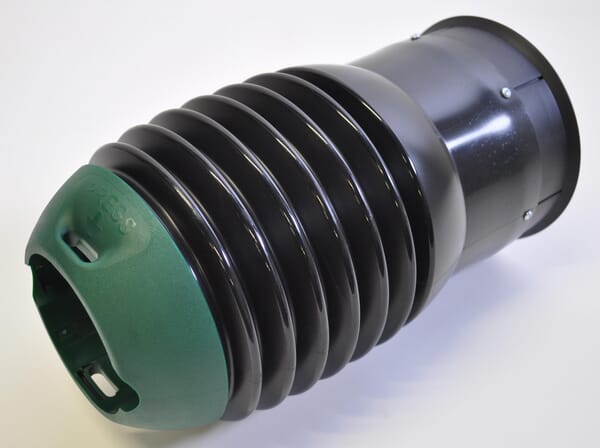

Walterscheid Guard cone PG20 8628603
£138.72 excl.
£166.46 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000144354

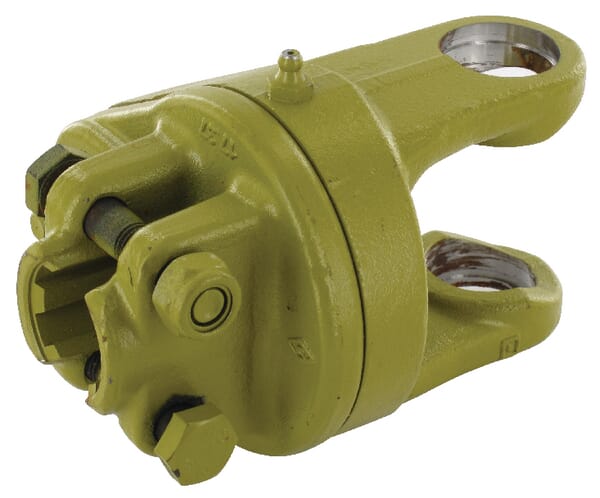

Walterscheid Shearbolt clutch KB61/20 5710218
