£537.94
excl. VAT
£645.53 incl. VAT
£645.53
incl. VAT
£537.94 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| Application range | Mowers, Harvesters, Soil cultivating machinery |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivery without yokes |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Inner tube profile | S4LH |
| Length | 1210 mm |
| Locking type by machine side | Cross |
| Locking type by tractor side | Cross |
| Max static torque | 3800 N·m |
| Original number equivalent | 1800086 |
| Outer tube profile | S5 |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD25 |
| Size code | W2400 |

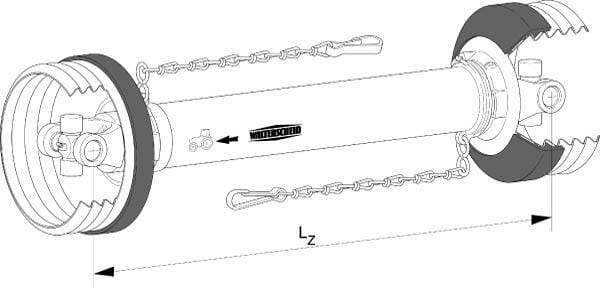

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1,000 rpm: 61 kW, 580 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | 8435194015882 |
|---|---|
| Unit of measure | EA |
| Weight | 19300 g |
| Dimensions | 1330 × 172 × 172 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400830

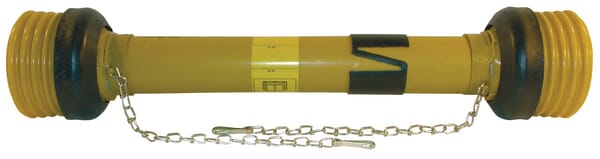

Walterscheid PTO shaft without yokes W2400 L: 1210mm, W24001210OG
£427.41 excl.
£512.89 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000084676

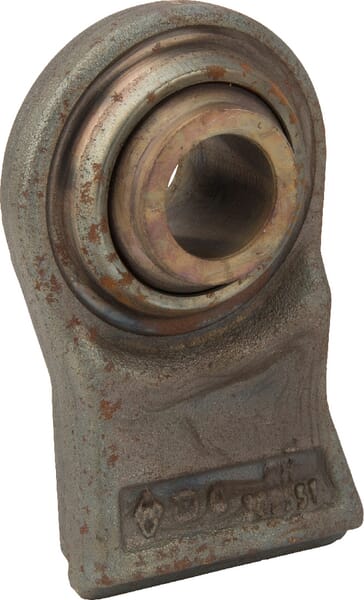

Walterscheid Ball end cat. 2H 28.4 309559
£227.68 excl.
£273.22 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400102
Walterscheid PTO shaft without end yokes WWE238012101B2AOG
£789.55 excl.
£947.46 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000173893

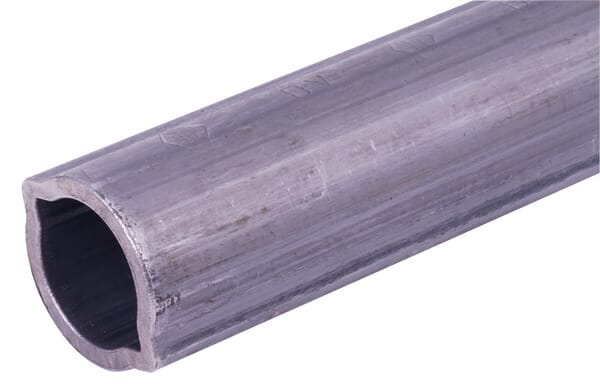

Walterscheid Profile tube lemon Ov diameter in: 32 diameter out: 40x34.5x4mm L: 2.9m 751100
£107.44 excl.
£128.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000084354
Walterscheid Ball end category 3H Hole diameter 37mm 306332
£130.16 excl.
£156.19 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000077831

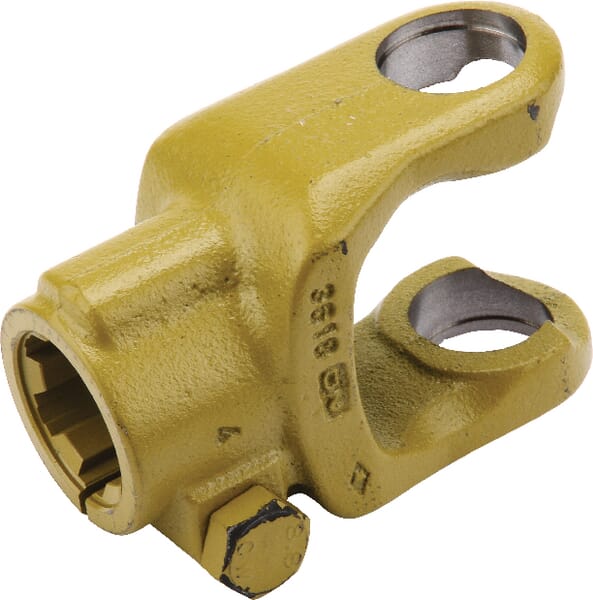

Walterscheid Yoke, clamp bolt, 1-3/8"-6 spline, W2600/P600 261006
