£2,078.10
excl. VAT
£2,493.72 incl. VAT
£2,493.72
incl. VAT
£2,078.10 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Silage wagon |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-21 |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4GA |
| Length | 1210 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Automatic collar lock |

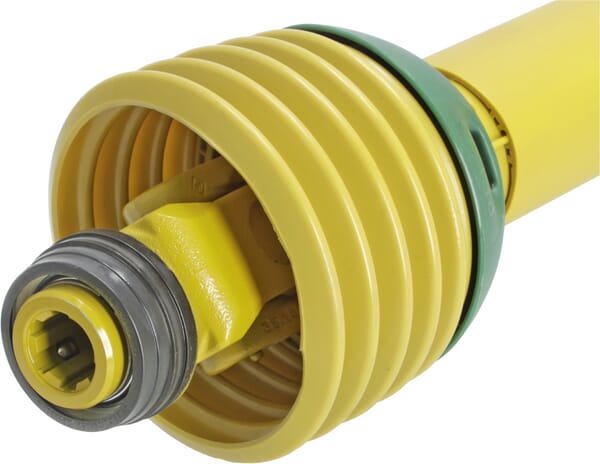

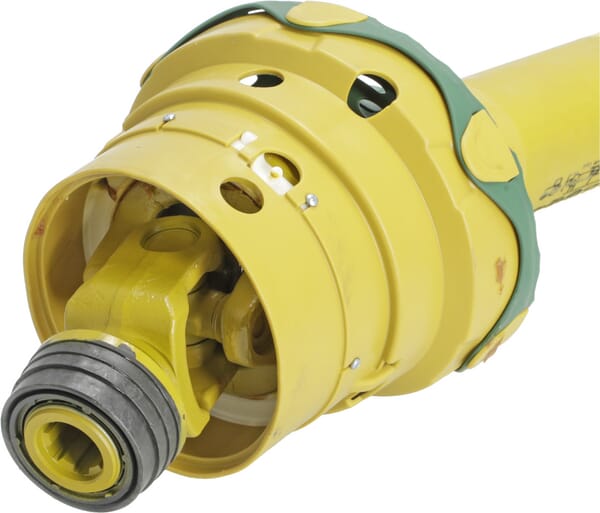

| Long description | PTO drive shafts complete 80° series PWE 580-S4LGAS5 |
| Max static torque | 6000 N·m |
| Original number equivalent | 1113256 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 117 kW |
| Power 540 rpm | 76 kW |
| Profile tube shape | Star |
| Properties | Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG25 |
| Size code | PWE 580 |

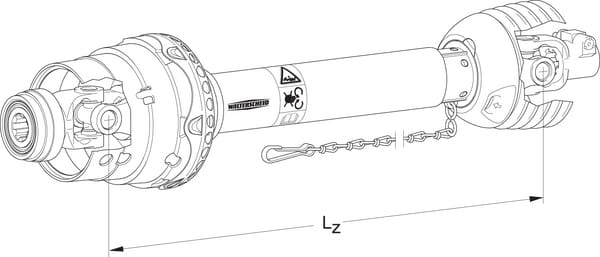

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 37300 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000342464
Walterscheid Wide angle PTO shaft PWE580 L:1210mm PWE5801210Z20
£2,001.65 excl.
£2,401.98 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000142965
Walterscheid Friction clutch K96 561005085
£928.86 excl.
£1,114.63 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000098821

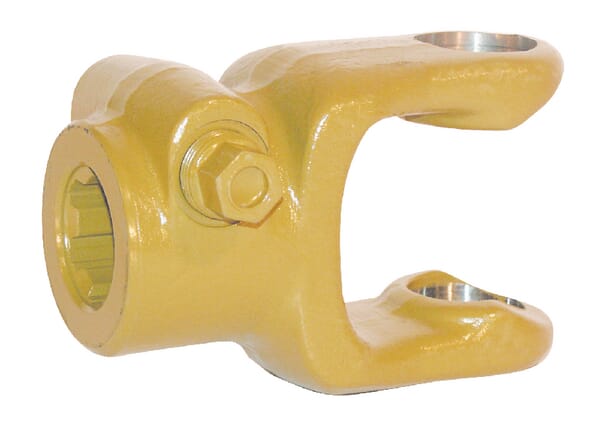

Walterscheid Yoke, Clamp bolt, 1-3/8"-21 spline, W2500/P500 361032
£287.04 excl.
£344.45 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000042017

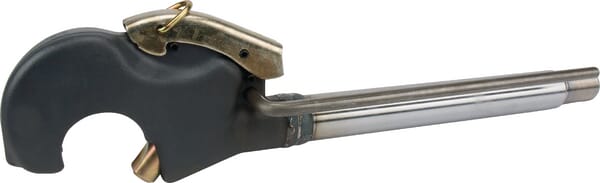

Walterscheid Short piston rod with hook 1309473
£601.39 excl.
£721.67 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000065109
Walterscheid Yoke, quick disconnect, 1-3/4"-6 spline, W2200/W200E 2011101
£149.92 excl.
£179.90 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000084655

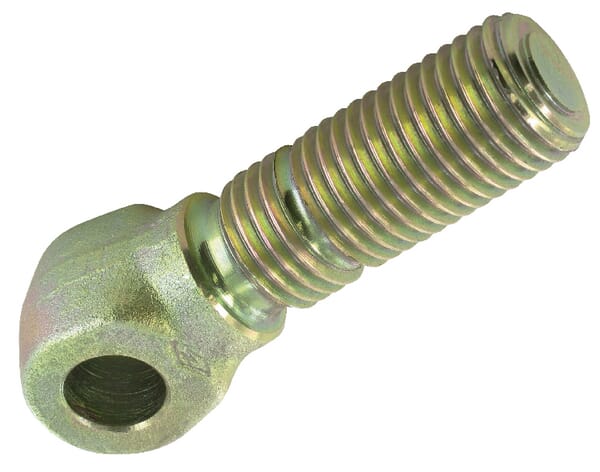

Walterscheid Rod end for ASST-B L=105 309445
