£193.19
excl. VAT
£231.83 incl. VAT
£231.83
incl. VAT
£193.19 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September

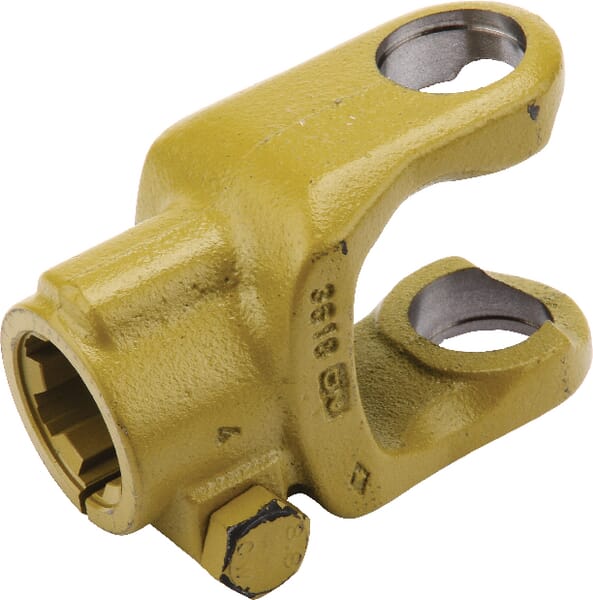

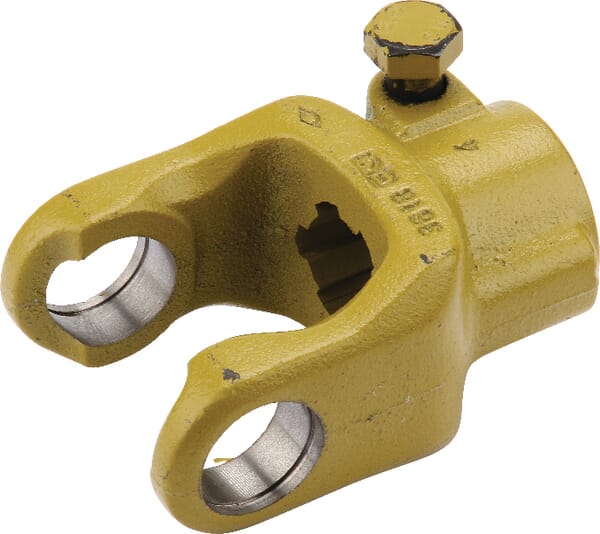

Product details
| Application range | Rotary tillers, Shredders, Wood shredders, Stump grinders |
|---|---|
| Benefits | Assembly with no play |

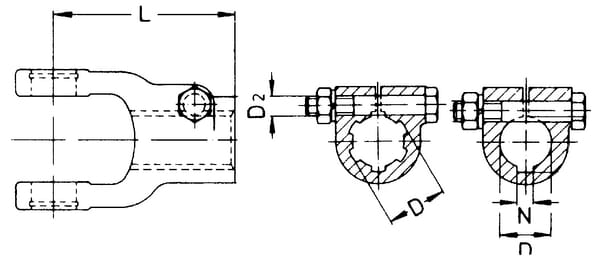

| Bolt thread diameter | M16 |
| Consists of | Fork, Clamping pin |
| Details | Clamping pin provides effective clamping effect on the shaft |
| Includes | Yoke, Clamp bolts |
| Inside connection diamter inch and splines | 1.3/4-6 |
| Length | 112 mm |
| Locking system | Clamp bolt (interfering) |
| Long description | Yokes with clamp bolt closure W series / Power Drive |
| Original number equivalent | 1320685 |
| Outside connection diameter | 44.45 mm |
| Product details | Slack-free installation, Interfering |
| Properties | - Double clamp bolt, |
| Pros | Clamp bolt ensures good hold on the shaft |
| Shaft size code | W2400, P400, W400E |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | 8435194023979 |
|---|---|
| Unit of measure | EA |
| Weight | 1780 g |
| Dimensions | 140 × 85 × 98 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000092818
Walterscheid Yoke, bore 35mm, keyway 10mm, W2400/P400/W400E 352412
£141.30 excl.
£169.56 incl.
In stock
Expected to ship on Thursday 17 September
BPA000084640

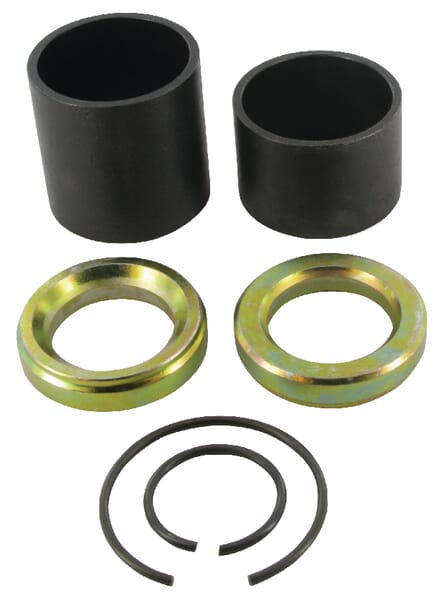

Walterscheid Repair kit Agraset 356 309329
£73.83 excl.
£88.60 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000092564

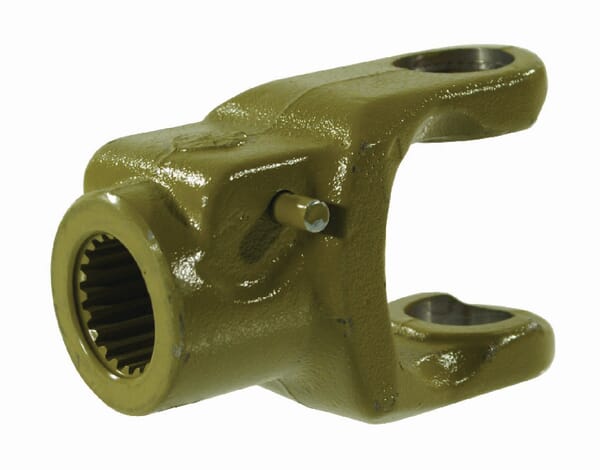

Walterscheid Yoke, quick disconnect, 1-3/8"-21 spline, W2400/P400/W400E 351002
£146.47 excl.
£175.76 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000065182
Walterscheid Yoke, Profile tube, 41mm, W2280 2012810
£183.51 excl.
£220.21 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000356991

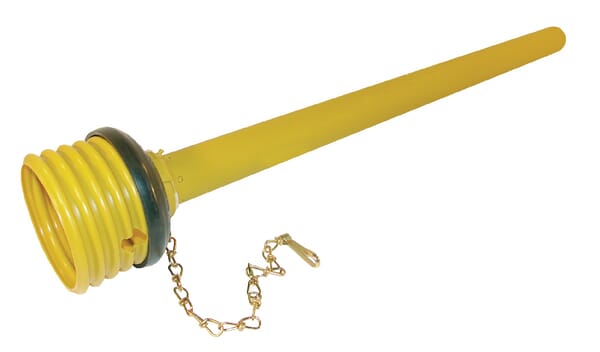

Walterscheid PTO inner half guard diameter 185, L: 2000mm SD252000I
£106.86 excl.
£128.23 incl.
In stock
Expected to ship on Thursday 17 September
BPA000356995

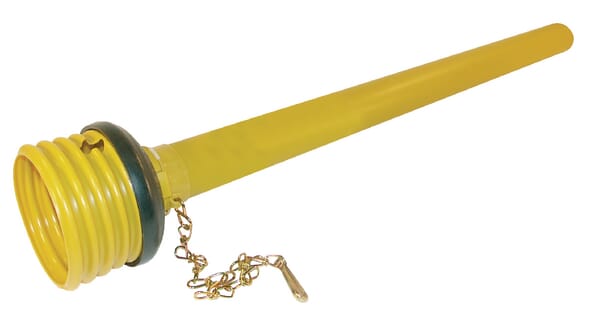

Walterscheid PTO outer half guard diameter 185, L: 550mm SD25550A
