£80.32
excl. VAT
£96.38 incl. VAT
£96.38
incl. VAT
£80.32 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Adjustable pressure range | 180-350 BAR |
|---|---|
| Adjustment type | Socket screw |

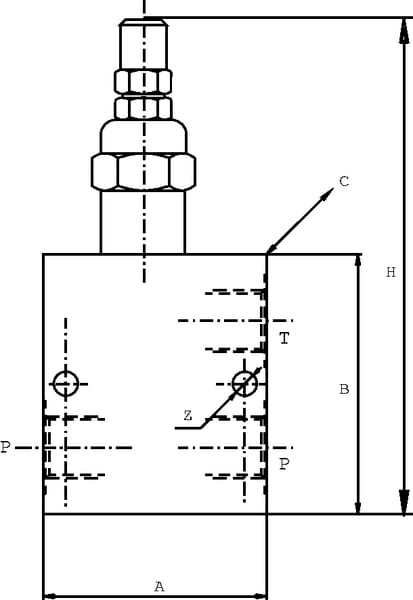

| AHousing length | 100 mm |
| Application range | For installation between lines, High pressure and moderate to high volume flow, For use as a pump safety device |
| CHousing width | 50 mm |
| Connection thread diameter | 3/4 Inch |
| Connection thread type | BSP |
| Connection type | Thread |
| Housing material | Steel |
| HTotal height | 154 mm |
| Max. flow rate | 100 l/min |
| Max working pressure | 350 BAR |
| Properties | Type: spring-loaded valve, direct control, Opens from P to T, Intermittent fast-reacting circuit |
| Type | Spring-loaded valve |
| Unit | Each |
| ZMounting holes diameter | 8.5 mm |
Logistics
| EAN | 8716106983711 |
|---|---|
| Unit of measure | EA |
| Weight | 2490 g |
| Dimensions | 197 × 105 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000384611
Walvoil Pressure relief valve Steel VMPBL05003ST
£47.62 excl.
£57.14 incl.
In stock
Expected to ship on Friday 18 September

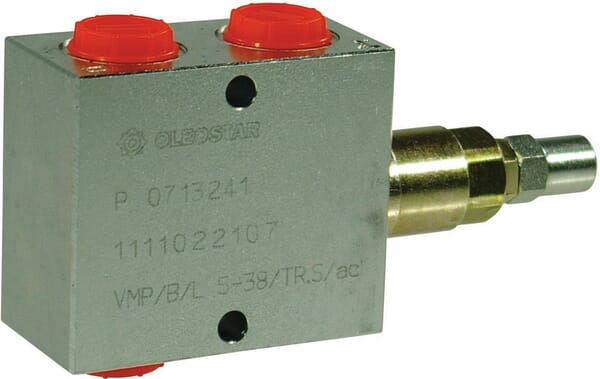

BPA000384614
Walvoil Pressure relief valve Steel VMPBL10001ST
£85.78 excl.
£102.94 incl.
In stock
Expected to ship on Friday 18 September

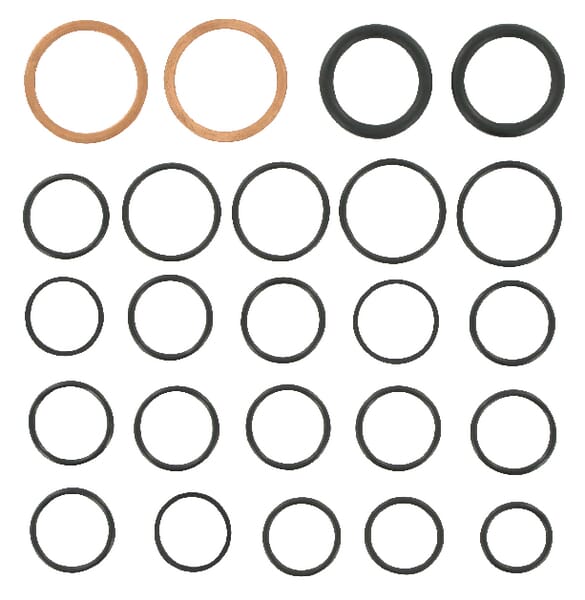

BPA000357606
Walvoil Seal kit for SDS150 SDS9150VAFD
£21.37 excl.
£25.64 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

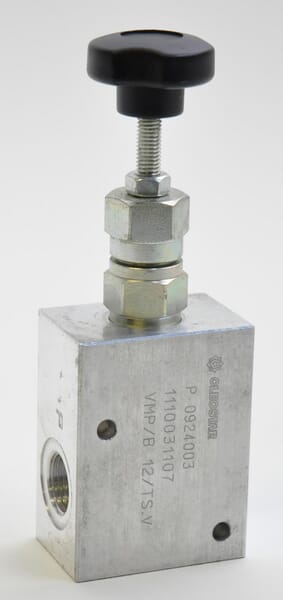

BPA000384607
Walvoil Relief Valve A-12-V-C-3/4" BSP VMPB20002
£158.77 excl.
£190.52 incl.
Backorder available
Usually ships within 3–8 weeks

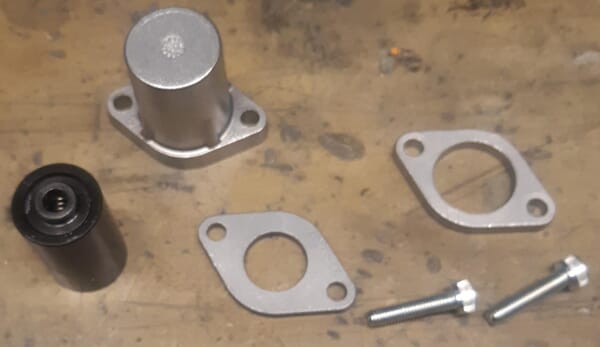

BPA000357370
Walvoil Spool control A10 /S4 stroke 4 mm SD95A10S4
£28.12 excl.
£33.74 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

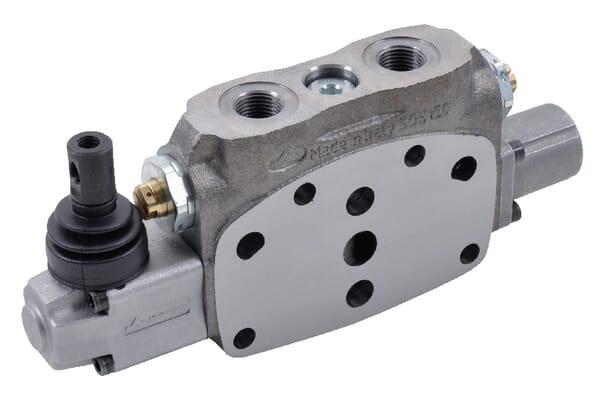

BPA000357571
