£131.77
excl. VAT
£158.12 incl. VAT
£158.12
incl. VAT
£131.77 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

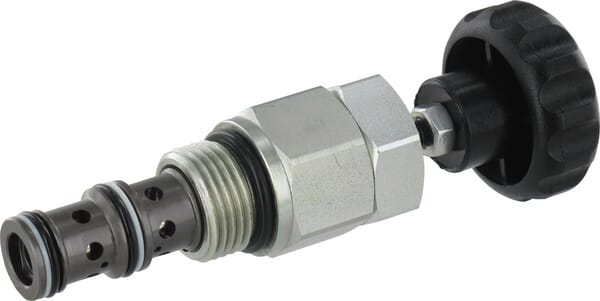

Product details
| Adjustment type | Hand wheel |
|---|---|
| Cavity | CP10-3 |

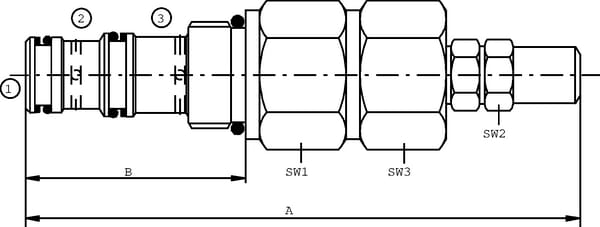

| Length under head | 47.2 mm |

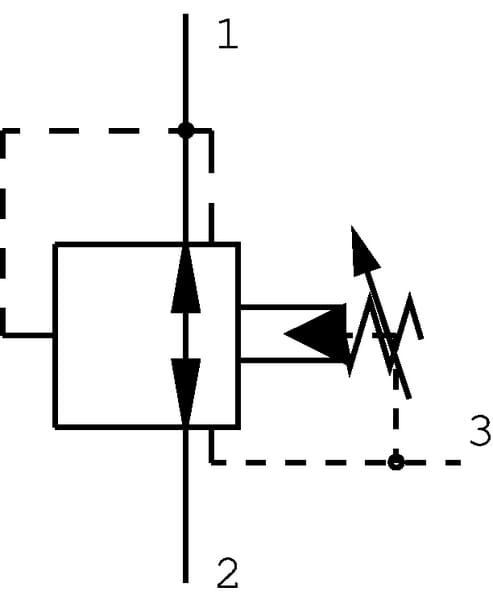

| Long description | This spring-loaded pre-controlled reducing valve functions from 2 to 1. It is used to achieve a constant and reduced output pressure at 1 on changing system pressure. To guarantee good function it is essential to pass 3 direct to the tank. |
| Max. flow rate | 30 l/min |
| Max working pressure | 350 BAR |
| Pressure range | 5-80 BAR |
| Technical info | This spring-loaded pre-controlled reducing valve functions from 2 to 1. It is used to achieve a constant and reduced output pressure at 1 on changing system pressure. To guarantee good function it is essential to pass 3 direct to the tank. |
| Torque range | 50-50 N·m |
| Total length | 99.7 mm |
| Unit | Each |
| Wrench size cover | 27 mm |
| Wrench/spanner size | 27.0 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 228 g |
| Dimensions | 145 × 39 × 39 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000357154

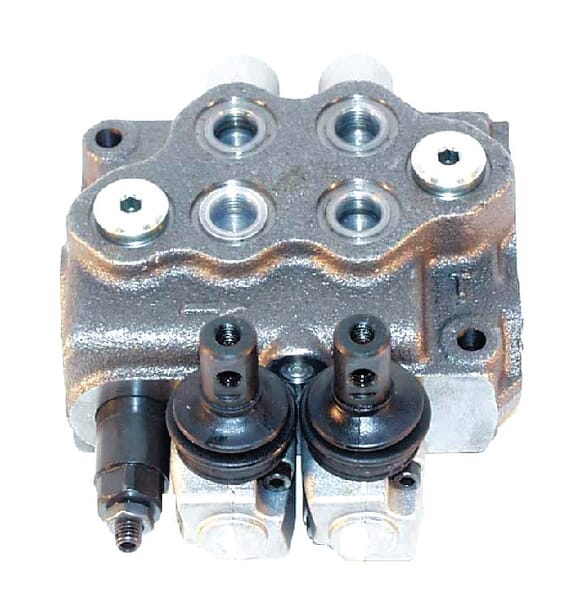

Walvoil Control valve SD5/2-P-38-38-AE SD52005AE
£244.31 excl.
£293.17 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000357285

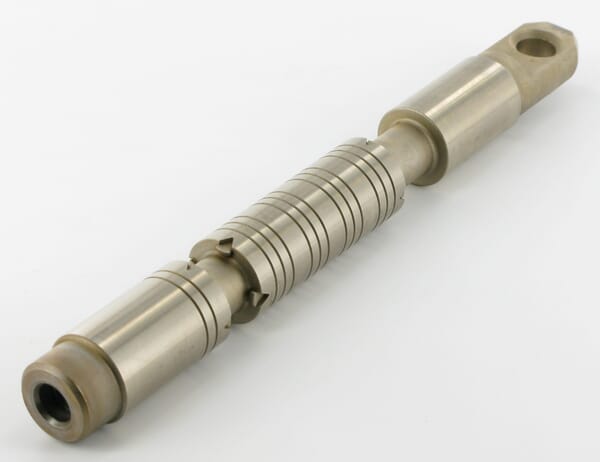

Walvoil Piston Type 3 SD911P3
£27.63 excl.
£33.16 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000395745

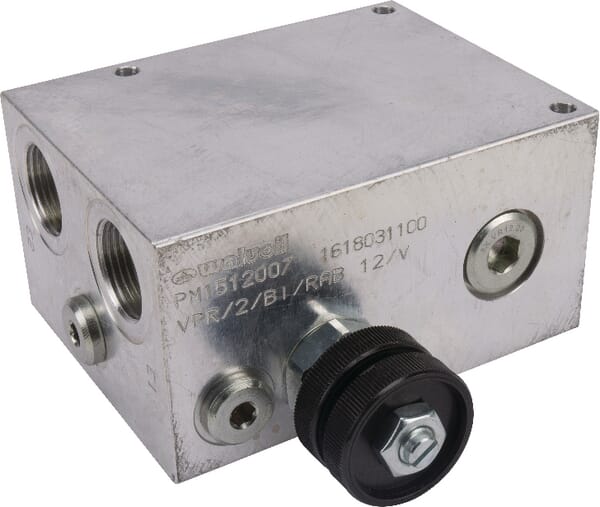

Walvoil 2 way flow control valve DA VPR2BIRAB12V
£328.13 excl.
£393.76 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000357118

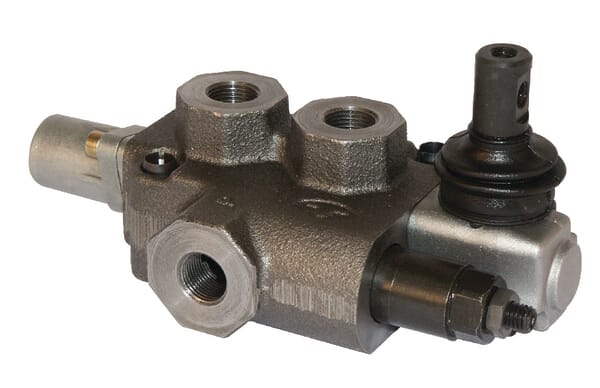

Walvoil Control valve SD4/1-111L-AET SD41003
£109.90 excl.
£131.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000357599

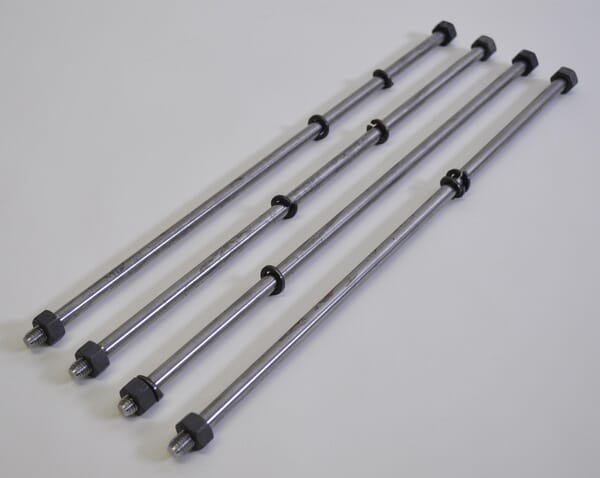

Walvoil Bolt set (4) SDS150 7 Section SDS9150T7
£31.46 excl.
£37.75 incl.
In stock
Expected to ship on Thursday 17 September
BPA000357354

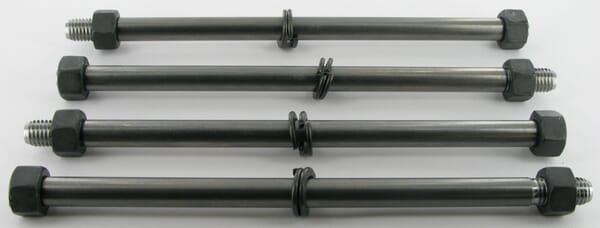

Walvoil Bolt set (4) for SD 25-1 (70 Nm) SD925T1
