£147.39
excl. VAT
£176.87 incl. VAT
£176.87
incl. VAT
£147.39 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

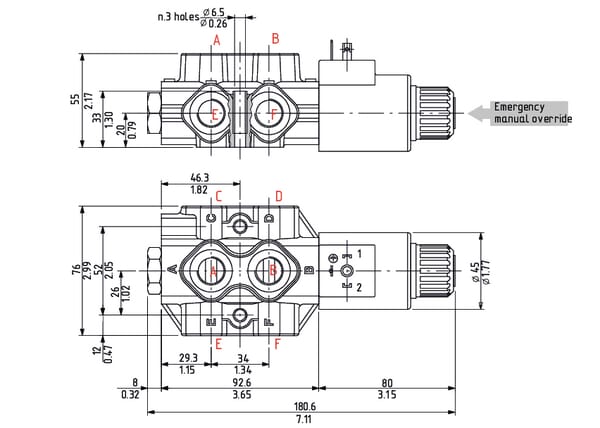

| Coil diameter | 45 mm |
|---|---|
| Includes | Plug SP666 is not included |

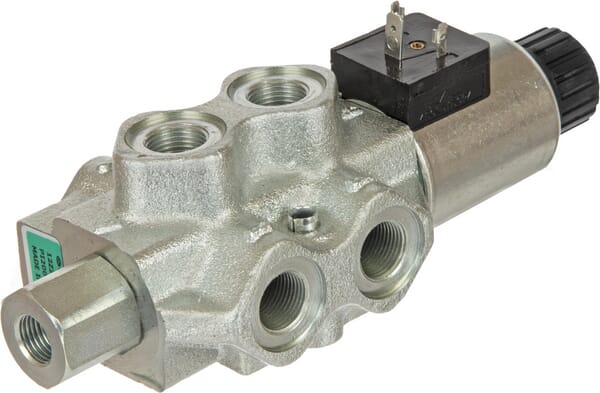

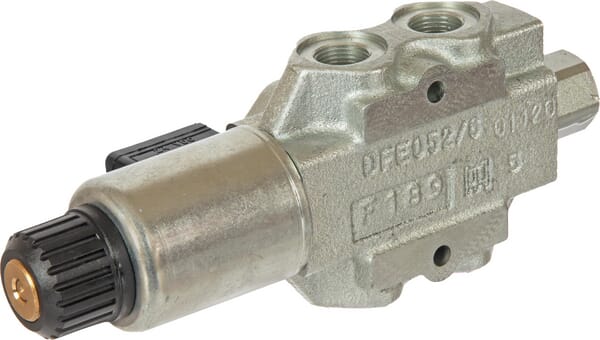

| Long description | Transfer valves allow oil flows to be switched between multiple users in a simple and compact way. This makes it possible to control multiple hydraulic functions with one control valve. These Walvoil 6/2 shuttle valves are available in several construction sizes and electrical voltage versions. The Walvoil DFE valve is designed for tough applications and can withstand extreme environmental conditions, making it ideally suited for use in agriculture, construction and industry. |
| Max. flow rate | 60 l/min |
| Max working pressure | 200 BAR |
| Mounting holes distance | 45 mm |
| Plunger type code | H |
| Ports thread type | BSP |

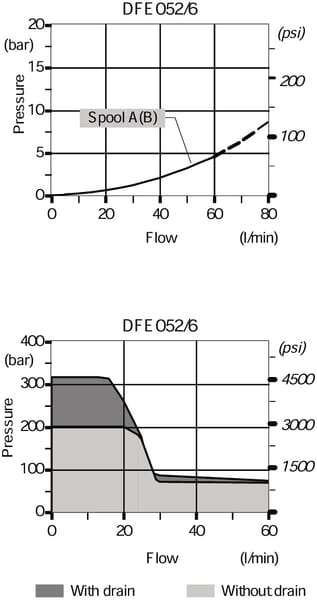

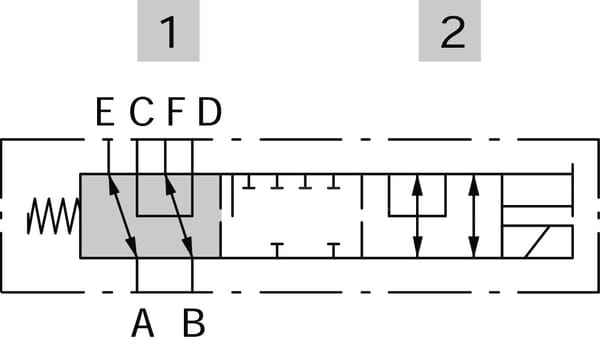

| Product details | Max. Operating pressure: 200 bar without leakage oil connection, 315 bar with leakage oil connection, Limited switchability under pressure, Typ A : ports connected in transition position, Typ B : ports closed in transition position |
| Supply voltage | 24 V |
| Total length | 166 mm |
| Unit | Each |
| Valve size | 5 |
| Working pressure with drain | 315 BAR |
| Workports diameter | 3/8 Inch |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2000 g |
| Dimensions | 180 × 40 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000357231

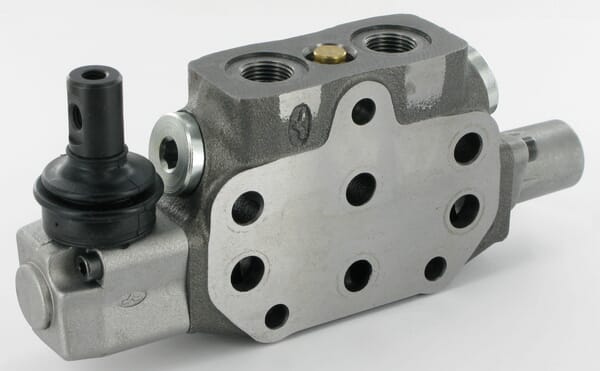

Walvoil Section SD6/P-211L SD61211
£195.16 excl.
£234.19 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000252443

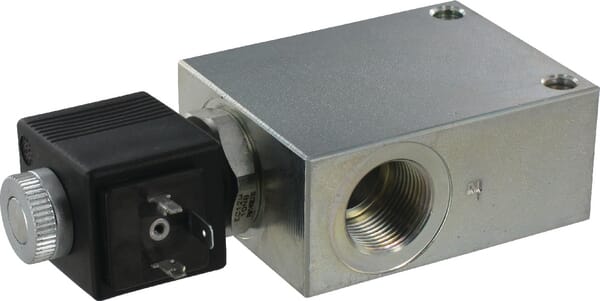

Walvoil Control valve 2/2 EC12M NO 12VDC 3/4" BSP EC12MNO001
£269.46 excl.
£323.35 incl.
In stock
Expected to ship on Friday 18 September
BPA000357281

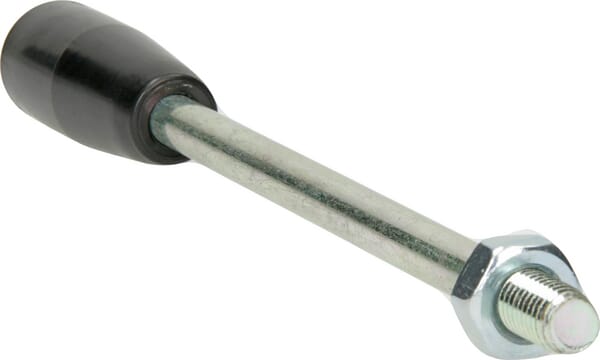

Walvoil Lever only AL01 10X200 SD911L01
£3.58 excl.
£4.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247310

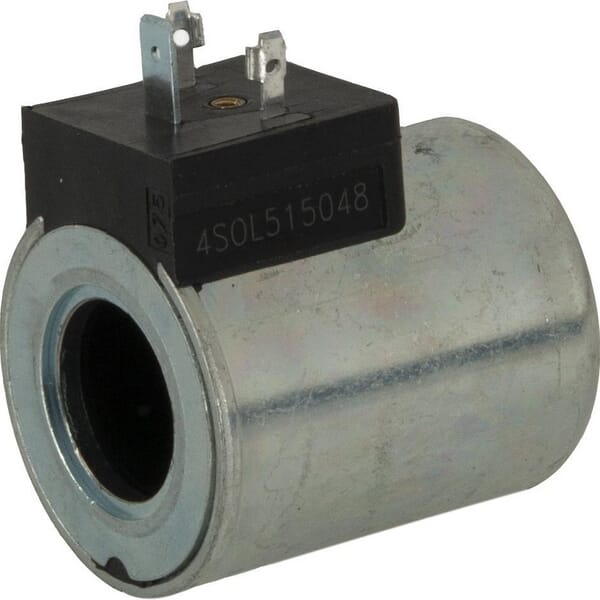

Walvoil Solenoid coil 48-V DC DFE05 DFE90548
£47.12 excl.
£56.54 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000395776

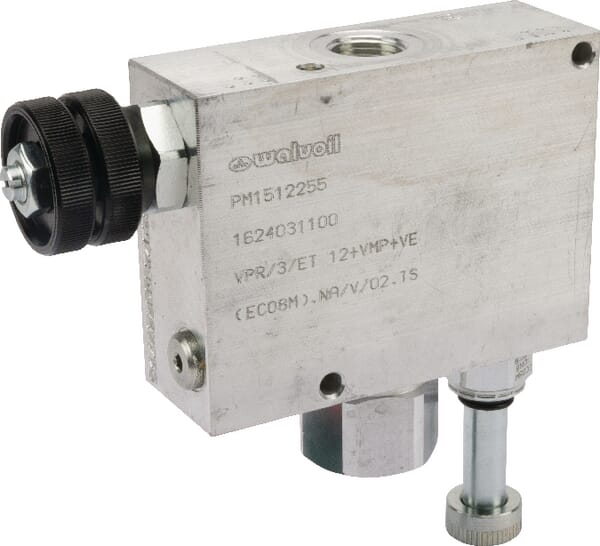

Walvoil Flow control valve 3-Way VE-A-08-NA1/2 VPR3ET10003
£387.70 excl.
£465.24 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000395774

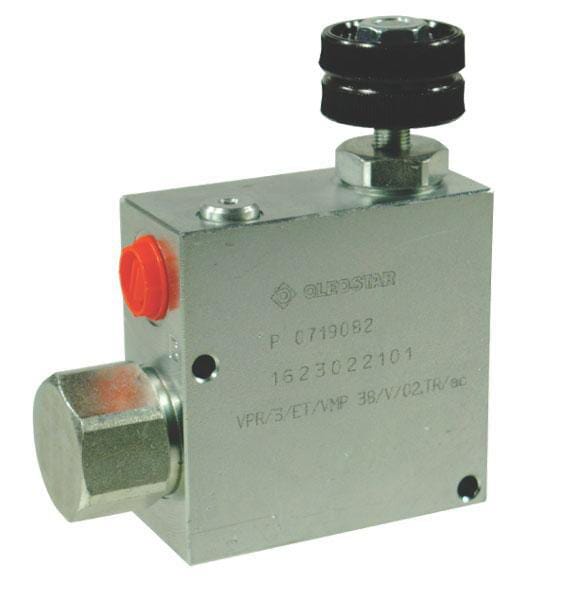

Walvoil Flow Control Valve VPR3ET10001ST
