£824.39
excl. VAT
£989.27 incl. VAT
£989.27
incl. VAT
£824.39 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Application range | For agricultural trailers |
|---|---|

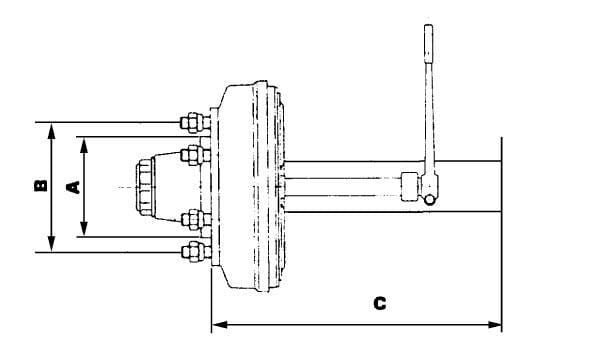

| AWheel mounting centre hole diameter | 160 mm |
| Axle shaft square width | 70 mm |
| Bearing type | Roller |
| Bearing type code | 30208, 30213 |
| Brake diameter | 300 mm |
| Brake width | 60 mm |
| BWheel mounting holes/bolts circle diameter | 205 mm |
| CTotal length | 1700 mm |
| Details | Please note, some axles shows two bearings combinations, Axle type ( plate ) is needed |
| Max. capacity at 25 km/h single axle | 6500 kg |
| Max. capacity at 25 km/h tandem axle | 4500 kg |
| Max. capacity at 25 km/h twin axle | 5500 kg |
| Max. capacity at 40 km/h single axle | 5500 kg |
| Max. capacity at 40 km/h tandem axle | 4600 kg |
| Max. capacity at 40 km/h two axles | 3700 kg |
| Number of wheel mounting holes/bolts | 6 |
| Properties | 40mm to 110mm, Square axles, Cast iron brake drum |
| Unit | Each |
| Wheel mounting holes/bolts thread diameter | M18 |
Compatible accessories
Parts and components that work with this product.
30208A
FAG Tapered roller bearing 40x80x19.75mm INA/FAG 30208A
£15.05 excl.
£18.06 incl.
30208
Timken Tapered roller bearing 40x80x19.75mm 30208
£21.13 excl.
£25.36 incl.
30213
Timken Tapered roller bearing 65x120x24.75mm 30213
£47.12 excl.
£56.54 incl.
32013X
FAG Tapered roller bearing 65x100x23mm INA/FAG 32013X
£30.25 excl.
£36.30 incl.
61L6LA010
ADR Wheel hub 6xM18x1,5 61L6LA010
£252.43 excl.
£302.92 incl.
74361A1815
Kramp Tapered wheel nut DIN74361 M18x1.50 steel zinc-Plated Class 8 74361A1815
£1.72 excl.
£2.06 incl.
903C18L1
ADR Wheel bolt 903C18L1
£8.70 excl.
£10.44 incl.
908DF3950
ADR Castle nut M39x1.50 steel 908DF3950
£24.11 excl.
£28.93 incl.
912T80
ADR Hub Cap diameter 80 912T80
£15.57 excl.
£18.68 incl.
914M30018
ADR Spring 914M30018
£7.89 excl.
£9.47 incl.
915PG65100
ADR Oil seal 915PG65100
£16.90 excl.
£20.28 incl.
9FC300ZO

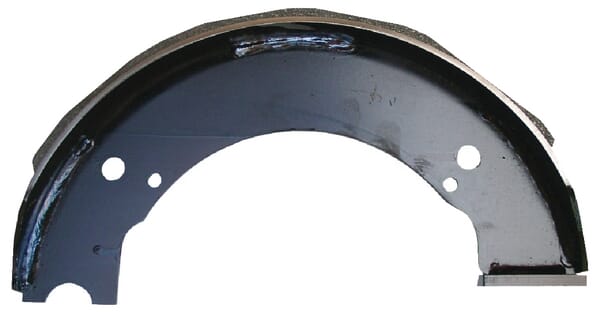

Brake shoe 300x60mm 9FC300ZO
£48.34 excl.
£58.01 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 130000 g |
| Dimensions | 2000 × 350 × 350 mm |
| Dangerous goods | No |
