£1,335.29
excl. VAT
£1,602.35 incl. VAT
£1,602.35
incl. VAT
£1,335.29 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

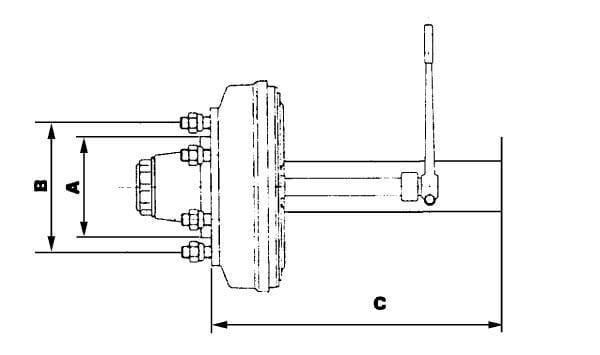

| AWheel mounting centre hole diameter | 280 mm |
|---|---|
| Axle shaft square width | 110 mm |
| Bearing type | Roller |
| Bearing type code | 33114, 33018 |
| Brake diameter | 406 mm |
| Brake width | 120 mm |
| BWheel mounting holes/bolts circle diameter | 335 mm |
| CTotal length | 1000 mm |
| Max. capacity at 25 km/h single axle | 15200 kg |
| Max. capacity at 25 km/h tandem axle | 12600 kg |
| Max. capacity at 25 km/h twin axle | 14000 kg |
| Max. capacity at 40 km/h single axle | 14200 kg |
| Max. capacity at 40 km/h tandem axle | 11800 kg |
| Max. capacity at 40 km/h two axles | 13000 kg |
| Number of wheel mounting holes/bolts | 10 |
| Unit | Each |
| Wheel mounting holes/bolts thread diameter | M22 |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 202000 g |
| Dimensions | 1300 × 470 × 470 mm |
| Dangerous goods | No |
You might also like
Free shipping

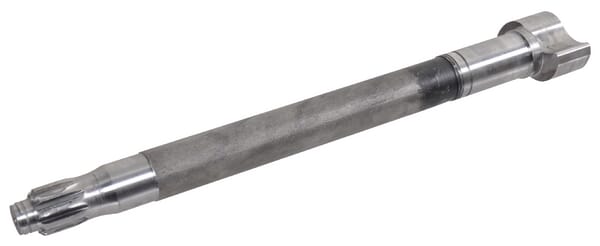

BPA000171017
ADR Right brake shaft, 42x 650 75P4063007
£213.32 excl.
£255.98 incl.
Backorder available
Usually ships within 3–8 weeks

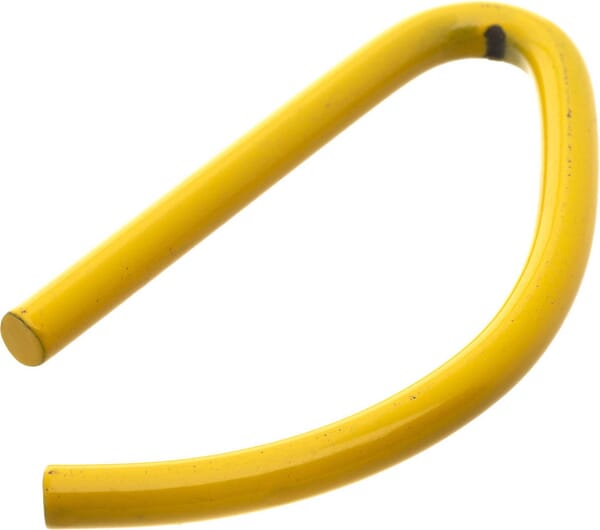

BPA000144941
ADR Split pin for castle nut M48 58209
£4.99 excl.
£5.99 incl.
In stock
Expected to ship on Tuesday 22 September

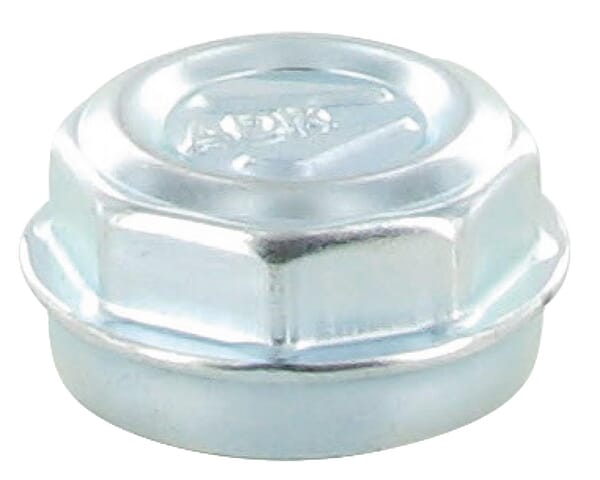

BPA000197299
ADR Hub Cap diameter 47 912T47
£5.91 excl.
£7.09 incl.
In stock
Expected to ship on Tuesday 22 September

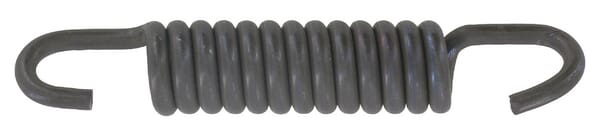

BPA000197474
ADR Spring 914M30017RM
£5.40 excl.
£6.48 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

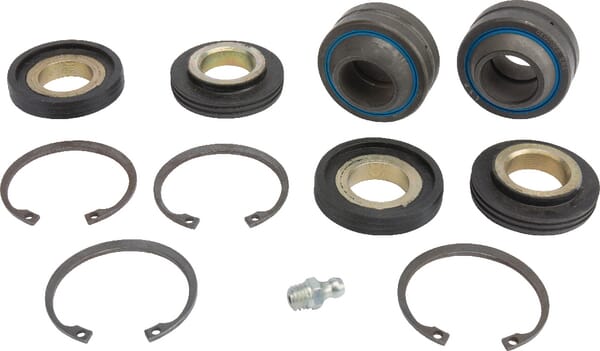

BPA000209932
ADR Coupling bar rep set 20/42 9RG003
£156.13 excl.
£187.36 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

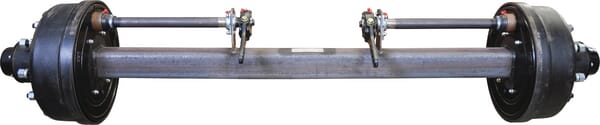

BPA000210468
