£1,443.28
excl. VAT
£1,731.94 incl. VAT
£1,731.94
incl. VAT
£1,443.28 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | For agricultural trailers |
|---|---|
| Axle shaft square width | 90 mm |
| Bearing type | Roller |
| Bearing type code | 32212, 32215 |
| Brake diameter | 300 mm |
| Brake width | 90 mm |
| Dedicated for | Agriculture trailer |
| Details | Please note, some axles shows two bearings combinations, Axle type ( plate ) is needed |
| Max. capacity at 25 km/h single axle | 10000 kg |
| Max. capacity at 25 km/h tandem axle | 9000 kg |
| Max. capacity at 25 km/h twin axle | 10000 kg |
| Max. capacity at 40 km/h single axle | 9200 kg |
| Max. capacity at 40 km/h tandem axle | 11800 kg |
| Max. capacity at 40 km/h two axles | 8500 kg |
| Number of wheel mounting holes/bolts | 6 |
| Properties | 40mm to 110mm, Square axles, Cast iron brake drum |
| Total length | 2300 mm |
| Unit | Each |
| Wheel mounting centre hole diameter | 160 mm |
| Wheel mounting holes/bolts circle diameter | 205 mm |
| Wheel mounting holes/bolts pitch | 1.5 mm |
| Wheel mounting holes/bolts thread diameter | M18 |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 200000 g |
| Dimensions | 2400 × 300 × 300 mm |
| Dangerous goods | No |
You might also like
BPA000209959

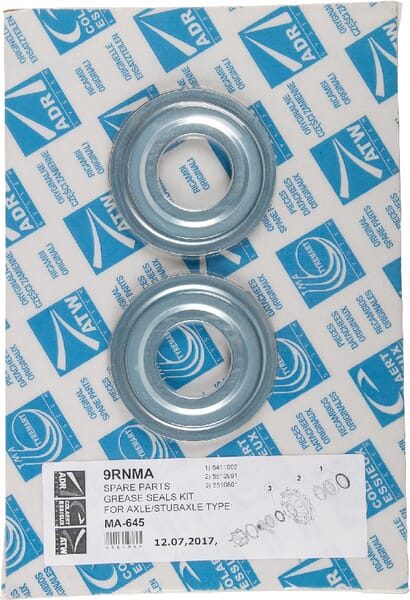

ADR Seal set 100x65 9RNMA
£38.19 excl.
£45.83 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000209896

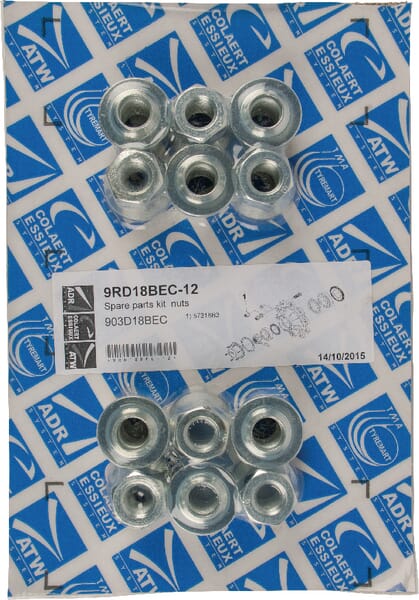

ADR Wheel nut set M18x1.50 steel 9RD18BEC12
£128.94 excl.
£154.73 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000209938

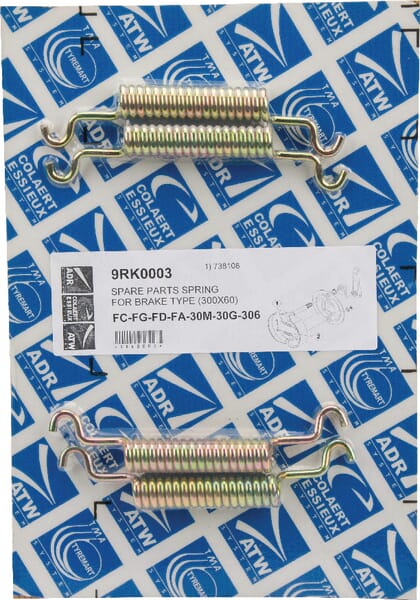

ADR Brake spring set 9RK0003
£44.84 excl.
£53.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000219250

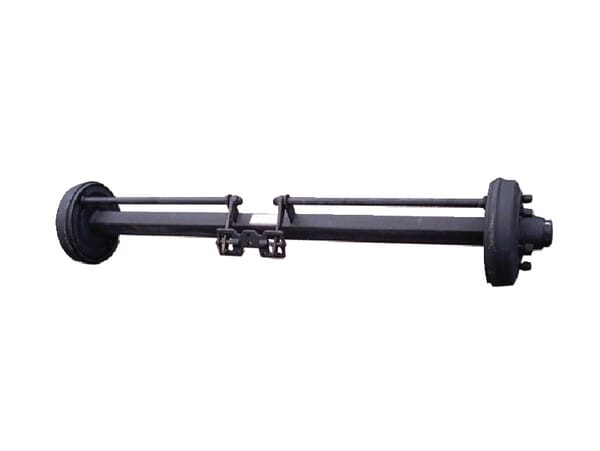

ADR Axle braked with cast iron drum A606402501600E
£656.28 excl.
£787.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000197298

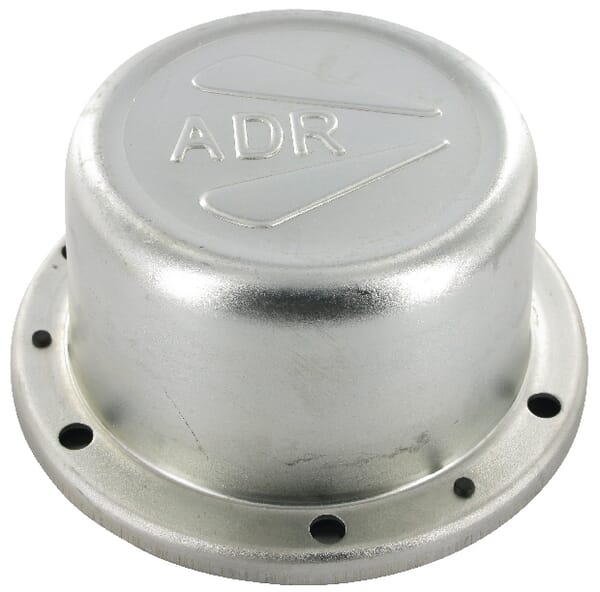

ADR Hub Cap diameter 130 912T130L
£41.80 excl.
£50.16 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000164586

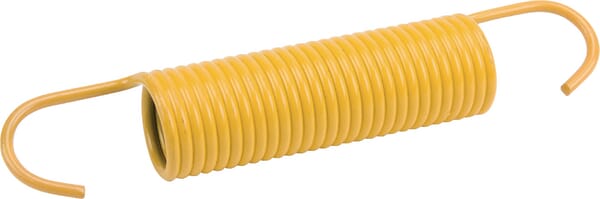

ADR Spring 738201
