£603.84
excl. VAT
£724.61 incl. VAT
£724.61
incl. VAT
£603.84 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Connection thread diameter | M18 |
|---|---|
| Connection thread pitch | 1.50 mm |
| Consists of | Supplementary control valve, With lever |
| Locking torque | 25 nm |
| Max. flow rate | 40 l/min |
| Max working pressure | 220 BAR |
| Original number equivalent | 0 523 602 012, 0 523 602 026, 0 521 602 026 |

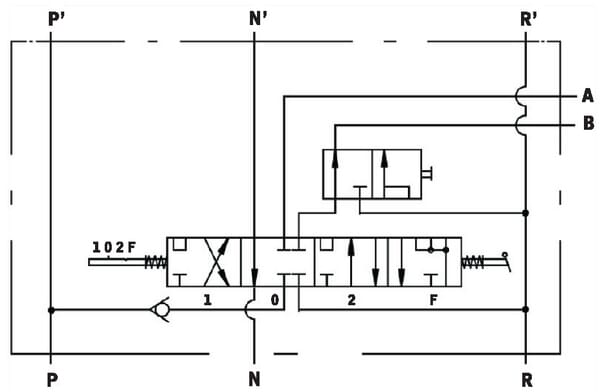

| Product details | 5/4-way valve that is operated manually, For double-acting and/or single-acting lift cylinders, If you switch further past the lowering position, the detented float position is engaged, which is not hydraulically disengaged (ports A and B are connected to return/tank), The float position can be used as a detented lowering position for both double-acting and single-acting lift cylinders, The unit can be switched from double-acting to single-acting and vice versa, This adjustment can also be made during operation, Hydraulic systems on Case and Lamborghini tractors |
| Pros | Sealed with a gate valve ensures an extremely low level of leakage under high loads |
| Total height | 75 mm |
| Total length | 180 mm |
| Total width | 40 mm |
| Unit | Each |
| Weight | 2.5 kg |
