£465.41
excl. VAT
£558.49 incl. VAT
£558.49
incl. VAT
£465.41 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
About this product

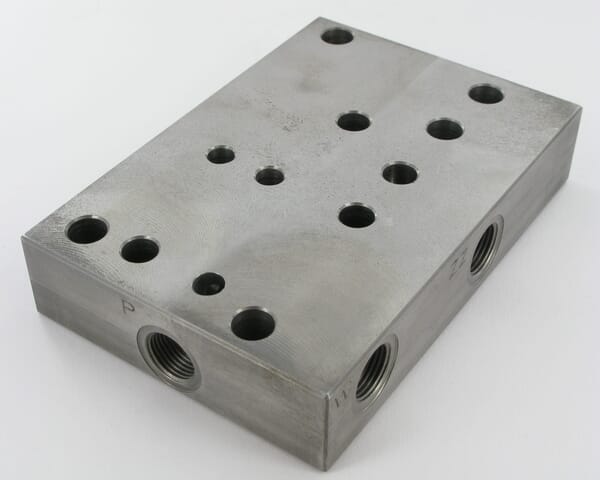

An inner plate assembly for Ford series 3000, 4000 and 5000 tractors, supplied as a single unit. This component is installed between the gearbox and gearbox cover or control valve and incorporates hydraulic connections for the rear hydraulics auxiliary cylinder, as well as P, R and W ports. The plate is rated for a maximum working pressure of 250 BAR and maximum flow rate of 60 l/min, with a tightening torque specification of 78 nm. The assembly weighs approximately 3.6 kg and measures 160 mm length by 110 mm width by 35 mm height. EAN code 4044841190304.
Product details
| Application range | Ford series 3000, 4000 and 5000 |
|---|---|
| Locking torque | 78 nm |
| Max. flow rate | 60 l/min |
| Max working pressure | 250 BAR |
| Technical info | This inner plate is installed between the gearbox and gearbox cover and/or control valve. The plate has a hydraulic connection on the side for the rear hydraulics' auxiliary cylinder. This plate also has the connections for P, R and W. |
| Unit | Each |
Logistics
| EAN | 4044841190304 |
|---|---|
| Unit of measure | EA |
| Weight | 3587 g |
| Dimensions | 160 × 110 × 35 mm |
| Dangerous goods | No |
