£14.11
excl. VAT
£16.93 incl. VAT
£16.93
incl. VAT
£14.11 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details

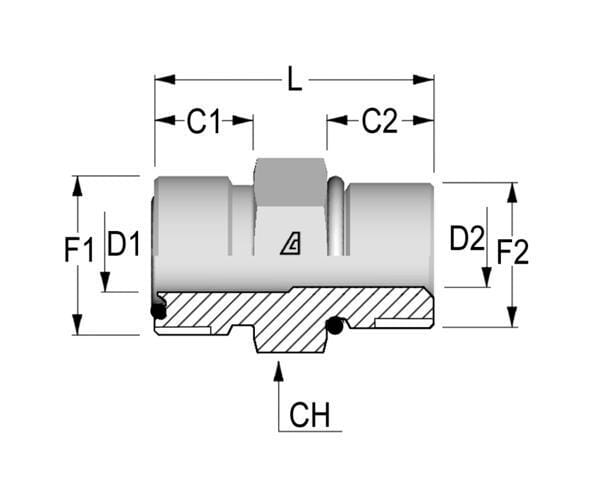

| C1Connection no 1 thread length | 17 mm |
|---|---|
| C2Connection 2, thread length | 18.5 mm |
| Connection 1, thread diameter | 1-3/16 Inch |
| Connection 1, thread type | ORFS |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-1/16 Inch |
| Connection 2, threads per inch | 12 |
| Connection 2, thread type | ORFS |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 threads per inch | 12 |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| LTotal length | 48.5 mm |
| Material | Steel |
| Max working pressure | 400 BAR |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment : Zinc-plated, Viton seal available on request |
| Pros | High tightening torque, Reusable |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 178 g |
| Dimensions | 60 × 37 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000358583

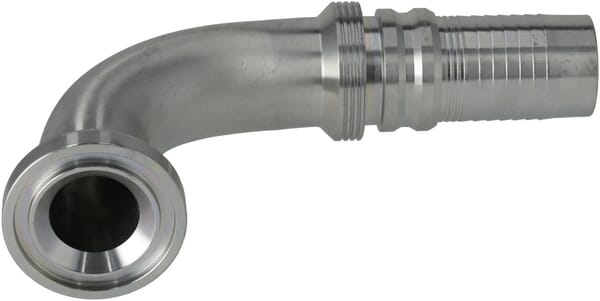

Alfagomma Swage coupling 4SH-DN32 with flange diameter 50,8mm 90° SFLH322090G2
£43.38 excl.
£52.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000372315

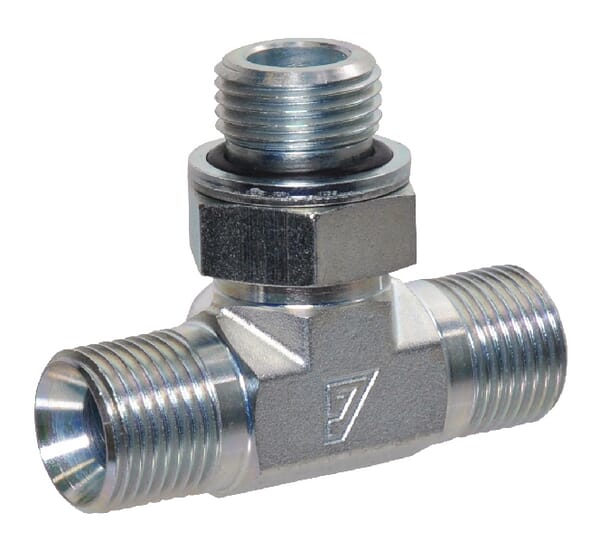

Alfagomma T piece male 1/2 BSP TMMMI08
£22.84 excl.
£27.41 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000252907

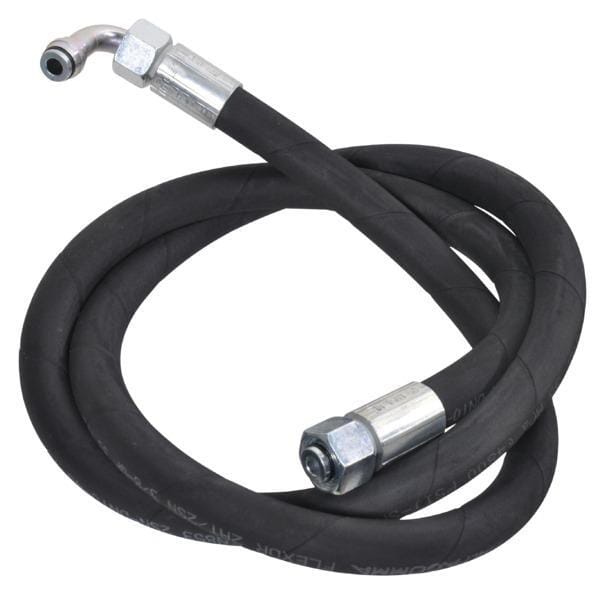

Alfagomma Hydraulic Hose complete DN10.450-90° DKLO1045090
£19.99 excl.
£23.99 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000393414
Alfagomma Adaptor 7/16"x1 1/16" JIC VNJW0717
£9.16 excl.
£10.99 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000296479

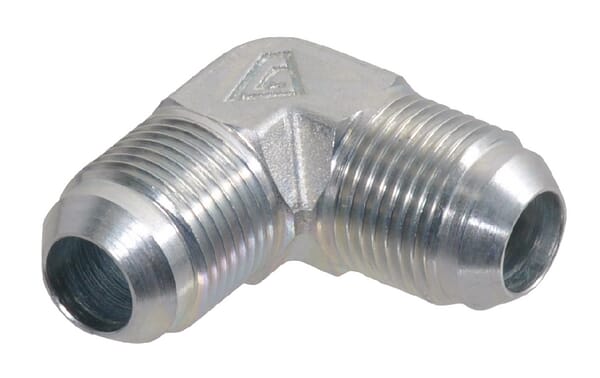

Alfagomma Elbow coupl. M 7/8 JIC 90° K14
£8.35 excl.
£10.02 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000358614

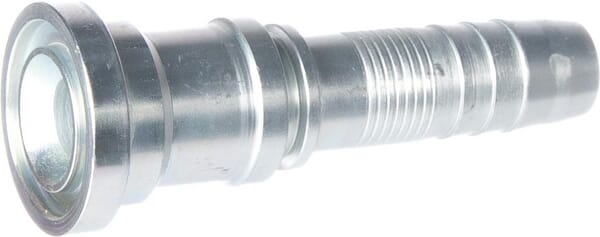

Alfagomma Insert NS-DN32-flange diameter 50.8 SFLNS3220G2
