£70.95
excl. VAT
£85.14 incl. VAT
£85.14
incl. VAT
£70.95 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details

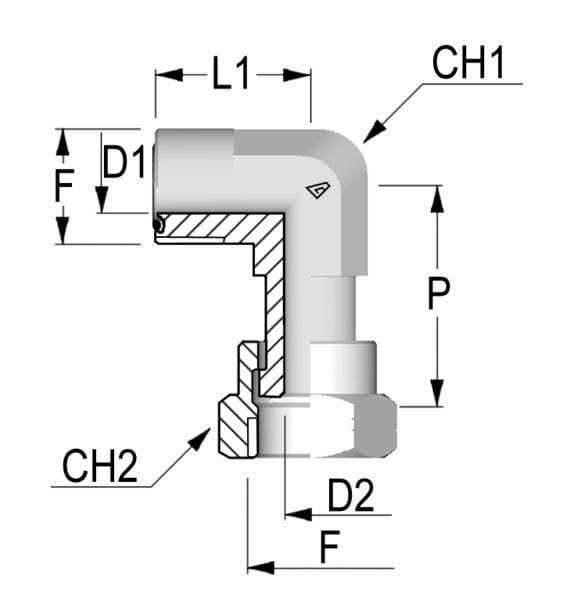

| CH1Connection no 1 wrench size | 41.0 mm |
|---|---|
| Connection 1, thread diameter | 1-11/16 Inch |
| Connection 1, thread type | ORFS |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1-11/16 Inch |
| Connection 2, threads per inch | 12 |
| Connection 2, thread type | ORFS |
| Connection 2, type | Stand pipe |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection no 1 threads per inch | 12 |
| L1Connection no 1 center to end distance | 44.5 mm |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Max working pressure | 400 BAR |
| PConnection 2, centre to end distance | 58 mm |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request |
| Pros | High tightening torque, Reusable |
| Series connection 1 | n/a |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 738 g |
| Dimensions | 117 × 117 × 117 mm |
| Dangerous goods | No |
You might also like

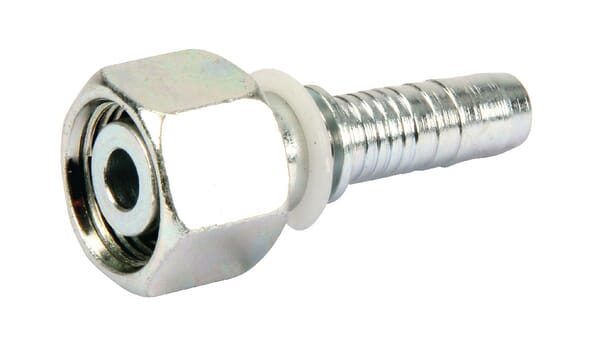

BPA000344005
Alfagomma Insert DN10-M22x1.5-15L PGLO1022
£3.41 excl.
£4.09 incl.
In stock
Expected to ship on Tuesday 22 September

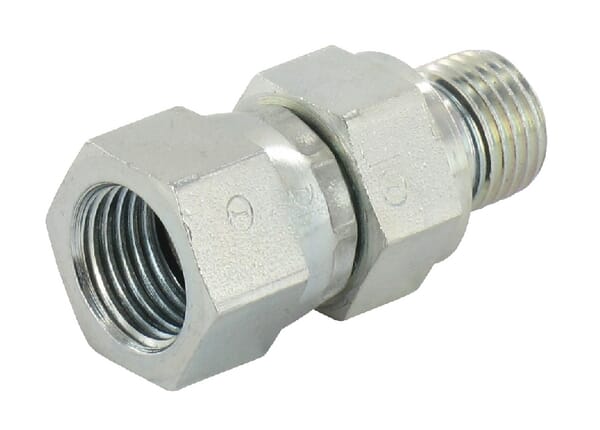

BPA000279039
Alfagomma Swivel 1/2 JIC x 1/4 BSP FMUB0804
£5.77 excl.
£6.92 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000338563
Alfagomma Insert DN06-1/8 BSP PF62
£2.58 excl.
£3.10 incl.
In stock
Expected to ship on Tuesday 22 September

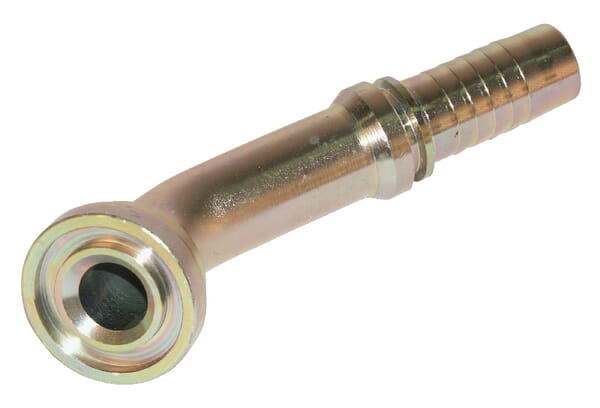

BPA000343742
Alfagomma Insert with flange DN25-diameter 44.4mm-60° PFL251660
£43.41 excl.
£52.09 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000365520
Alfagomma HSK-PQ swage coupling set SWAGEKIT2HSKPQ
£2,658.31 excl.
£3,189.97 incl.
Backorder available
Usually ships within 3–8 weeks

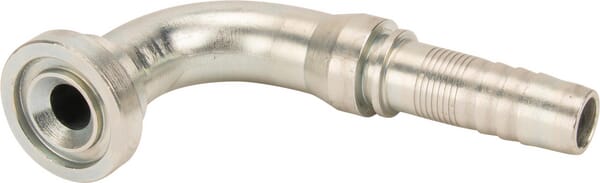

BPA000358828
