£24.40
excl. VAT
£29.28 incl. VAT
£29.28
incl. VAT
£24.40 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details

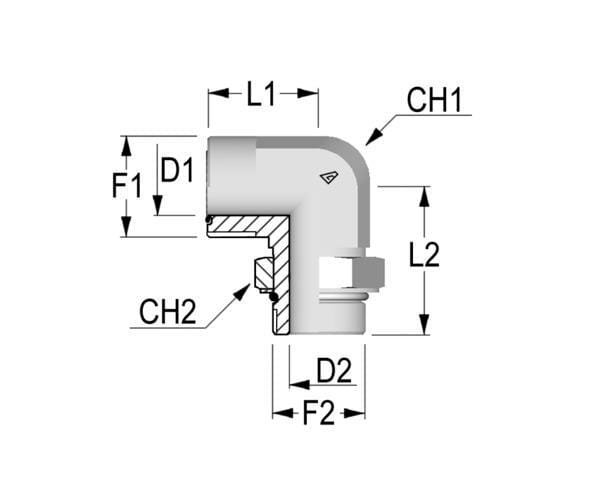

| CH1Connection no 1 wrench size | 30.0 mm |
|---|---|
| Connection 1, thread diameter | 1-3/16 Inch |
| Connection 1, thread type | ORFS |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-1/16 Inch |
| Connection 2, threads per inch | 12 |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 32.0 mm |
| Connection no 1 threads per inch | 12 |
| L1Connection no 1 center to end distance | 37.5 mm |
| L2Connection 2, centre to end distance | 55 mm |

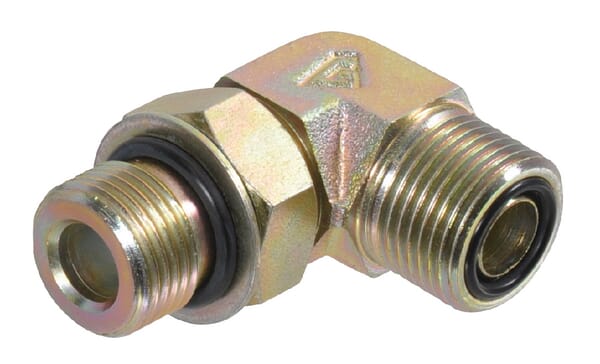

| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request |
| Pros | High tightening torques, Reusable |
| Series connection 1 | n/a |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 392 g |
| Dimensions | 80 × 61 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000358480
Alfagomma Ferrule DN40 Interlock SFAH440
£30.72 excl.
£36.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000247885

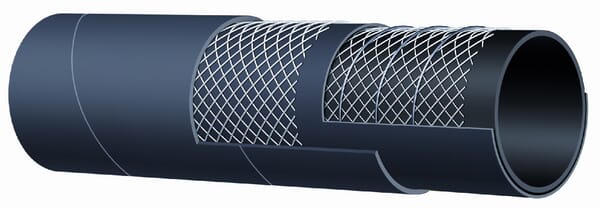

Alfagomma Suction/pressure hose 40mm CR440
£24.02 excl.
£28.82 incl.
In stock
Expected to ship on Friday 18 September
BPA000362034
Alfagomma Suction/pressure hose 1 1/2" SL30112
£9.47 excl.
£11.36 incl.
In stock
Expected to ship on Friday 18 September
BPA000349130

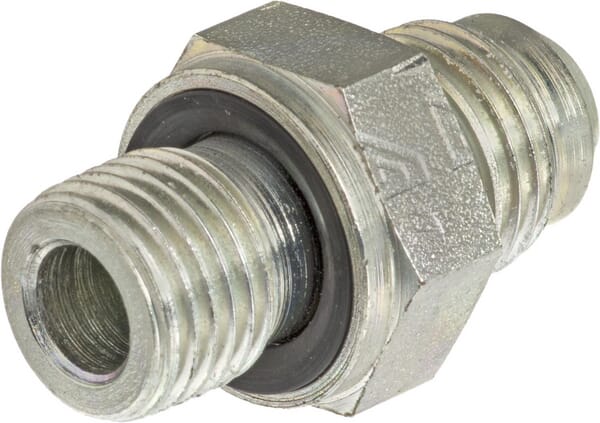

Alfagomma Adaptor 9/16 JIC x 1/4 BSP RIB0904WD
