£39.83
excl. VAT
£47.80 incl. VAT
£47.80
incl. VAT
£39.83 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

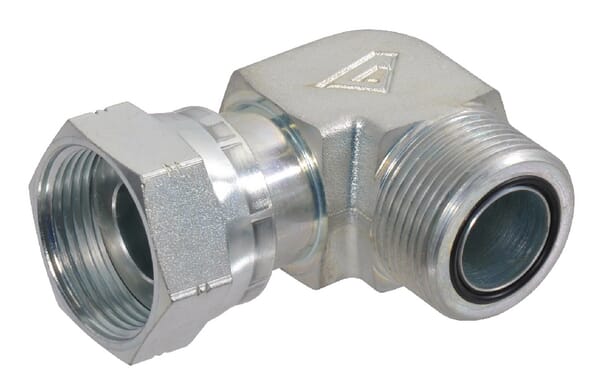

Product details

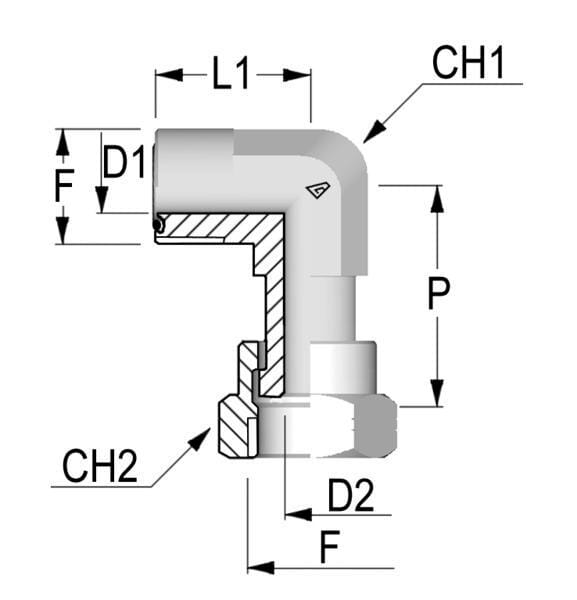

| CH1Connection no 1 wrench size | 36.0 mm |
|---|---|
| Connection 1, thread diameter | 1-7/16 Inch |
| Connection 1, thread type | ORFS |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1-7/16 Inch |
| Connection 2, threads per inch | 12 |
| Connection 2, thread type | ORFS |
| Connection 2, type | Stand pipe |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 41.0 mm |
| Connection no 1 threads per inch | 12 |
| L1Connection no 1 center to end distance | 41.5 mm |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Max working pressure | 400 BAR |
| PConnection 2, centre to end distance | 53.5 mm |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request |
| Pros | High tightening torque, Reusable |
| Series connection 1 | n/a |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 598 g |
| Dimensions | 143 × 142 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000251397

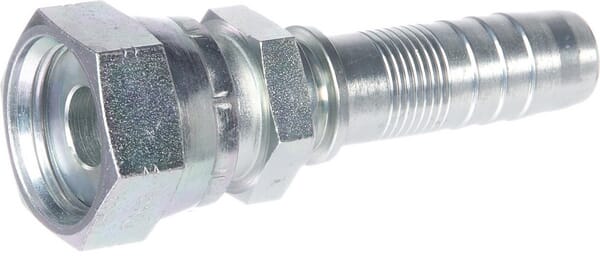

Alfagomma Insert F NS-DN16-1.3/16 ORFS DAVNS1619G2
£21.34 excl.
£25.60 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000343625

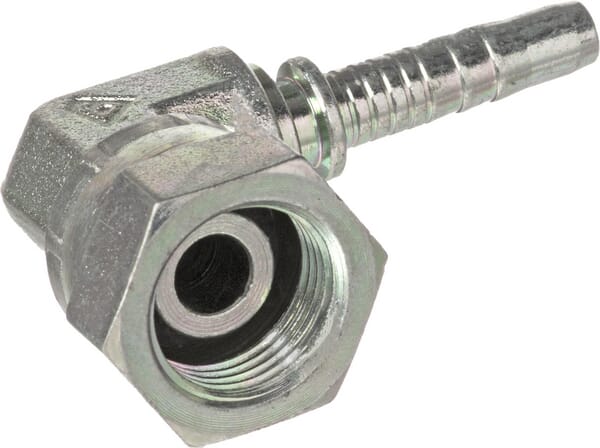

Alfagomma Insert DN06 F 3/8" BSP 90 PF6690S
£8.07 excl.
£9.68 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000343743
Alfagomma Insert with flange DN25-diameter 44.4mm-90° PFL251690
£24.93 excl.
£29.92 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000336561
Alfagomma Insert DN20-1"3/16 ORFS PAV2019
£8.32 excl.
£9.98 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000247877

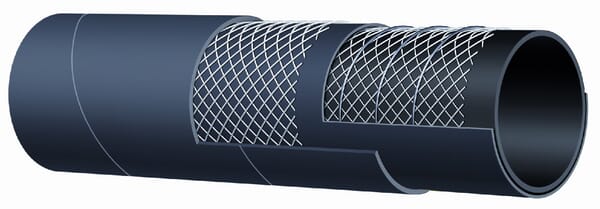

Alfagomma Suction/pressure hose 19mm CR420
£17.68 excl.
£21.22 incl.
In stock
Expected to ship on Thursday 24 September
BPA000344196

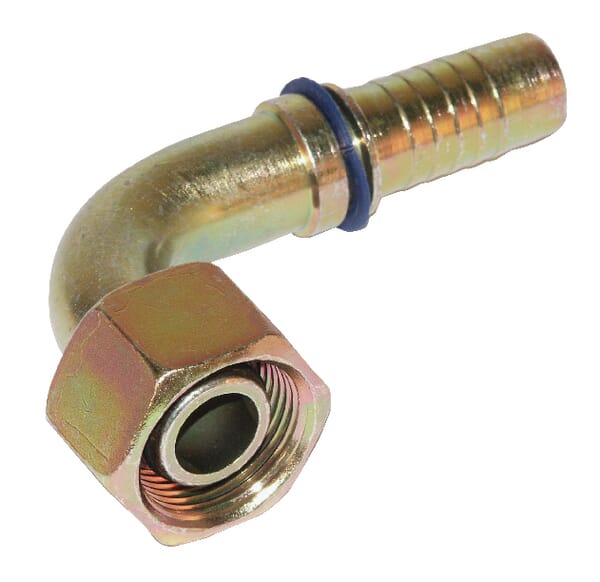

Alfagomma Insert DN16-M30x2,0-20S-90° PGSO163090
£8.66 excl.
£10.39 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000305133
Kramp Trousers 32-36"/L32", charcoal Kramp Active KW502545011092
£41.76 excl.
£50.11 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000155019
SKF Deep groove ball bearing 35x55x10mm 61907SKF
£65.32 excl.
£78.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000330839
Kramp O-ring 7.52x3.53mm 90 shore 10x OR75235390P010
£1.80 excl.
£2.16 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000356818

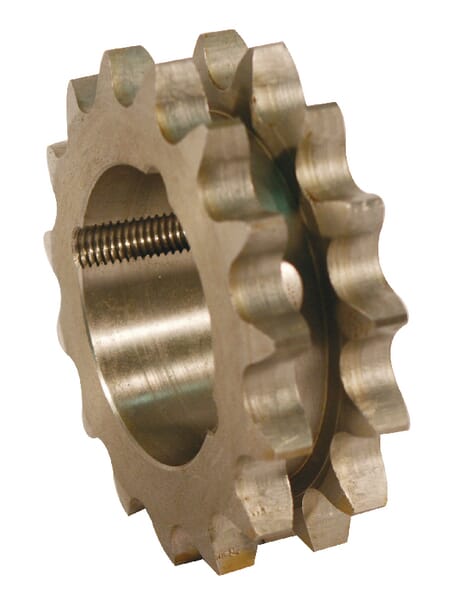

Kramp Sprocket Duplex 14 teeth 1" chain 16 B-2 for taperlock bush 1615 SD114TL
