£13.21
excl. VAT
£15.85 incl. VAT
£15.85
incl. VAT
£13.21 excl. VAT
In stock
Expected to ship on Friday 18 September

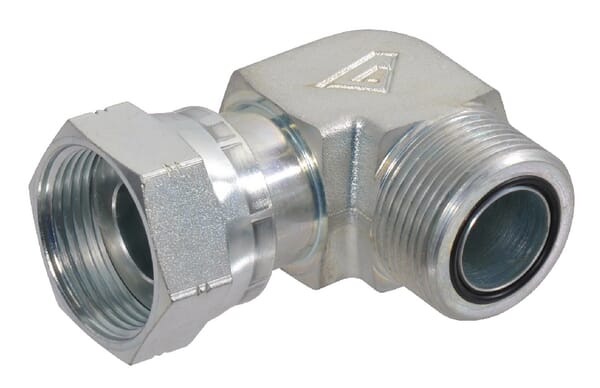

Product details

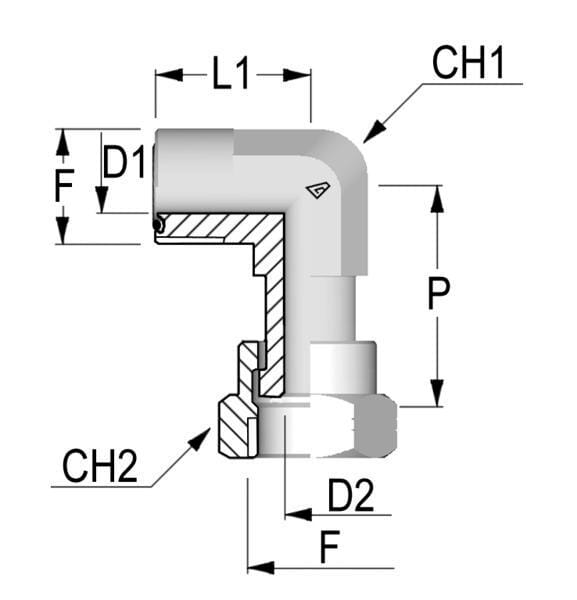

| CH1Connection no 1 wrench size | 17.0 mm |
|---|---|
| Connection 1, thread diameter | 11/16 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 11/16 Inch |
| Connection 2, threads per inch | 16 |
| Connection 2, thread type | ORFS |
| Connection 2, type | Stand pipe |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 threads per inch | 16 |
| L1Connection no 1 center to end distance | 29 mm |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Max working pressure | 400 BAR |
| PConnection 2, centre to end distance | 25 mm |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request |
| Pros | High tightening torque, Reusable |
| Series connection 1 | n/a |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | 8719607073813 |
|---|---|
| Unit of measure | EA |
| Weight | 95 g |
| Dimensions | 58 × 37 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000336513

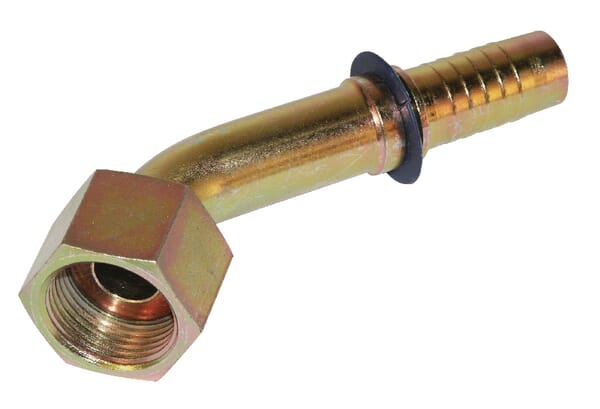

Alfagomma Insert DN10-13/16 ORFS-45° PAV101345
£6.04 excl.
£7.25 incl.
In stock
Expected to ship on Friday 18 September
BPA000341490
Alfagomma Insert DN08-M16x1.5-10L PR810
£1.82 excl.
£2.18 incl.
In stock
Expected to ship on Friday 18 September
BPA000312177
Alfagomma L stud 7/16 UNF LIU0707
£17.84 excl.
£21.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000344184

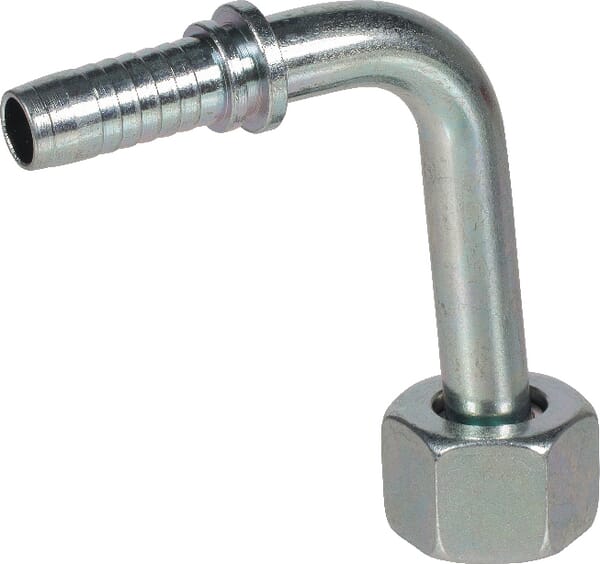

Alfagomma Insert DN13-M24x1,5-16S-90° PGSO132490H85
£11.66 excl.
£13.99 incl.
In stock
Expected to ship on Monday 21 September
BPA000251383

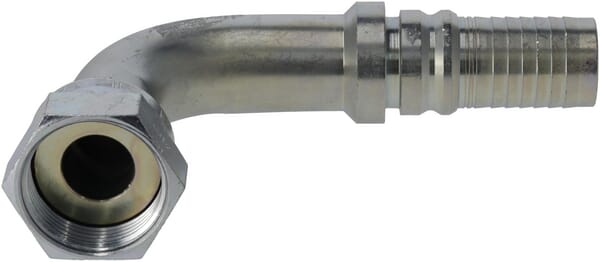

Alfagomma Swage coupling 4SH-DN25-1.7/16" ORFS-90° DAVH252390G2
£35.22 excl.
£42.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000251416
Alfagomma Insert F NS-DN40-2" ORFS DAVNS4032G2
£53.40 excl.
£64.08 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000019340
Honda machinery parts Clutch cable 06226VK8751
£21.42 excl.
£25.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000365222

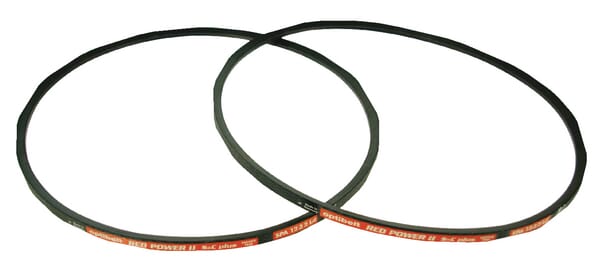

Optibelt V-belt SPZ 10x1362 Red-power SPZ1362RP
£25.58 excl.
£30.70 incl.
In stock
Expected to ship on Friday 18 September
BPA000009416

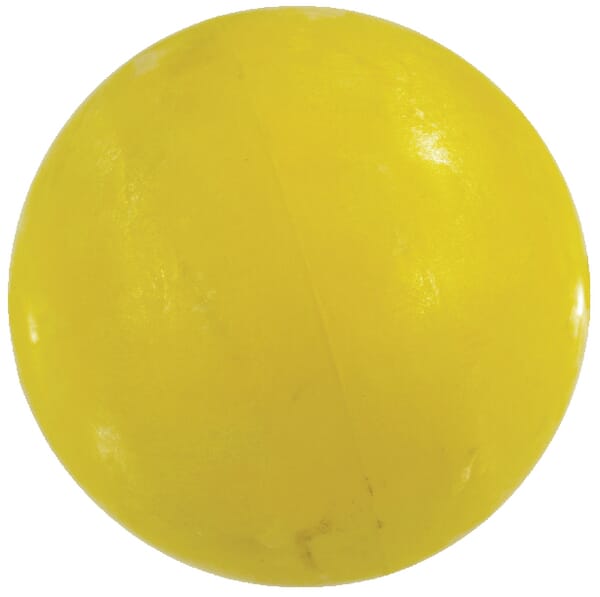

Battioni Pagani PVC Ball Cock 120mm 0120110
£29.91 excl.
£35.89 incl.
In stock
Expected to ship on Friday 18 September
BPA000087025

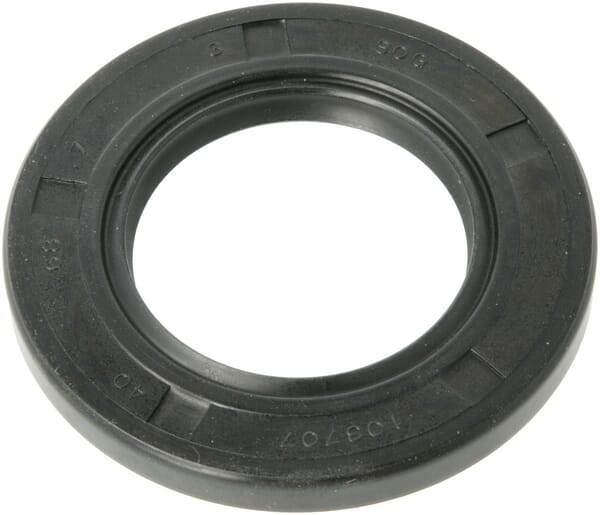

Lemken Oil seal 40x68x7 AS DIN3760-BASL 32310049
