£14.47
excl. VAT
£17.36 incl. VAT
£17.36
incl. VAT
£14.47 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

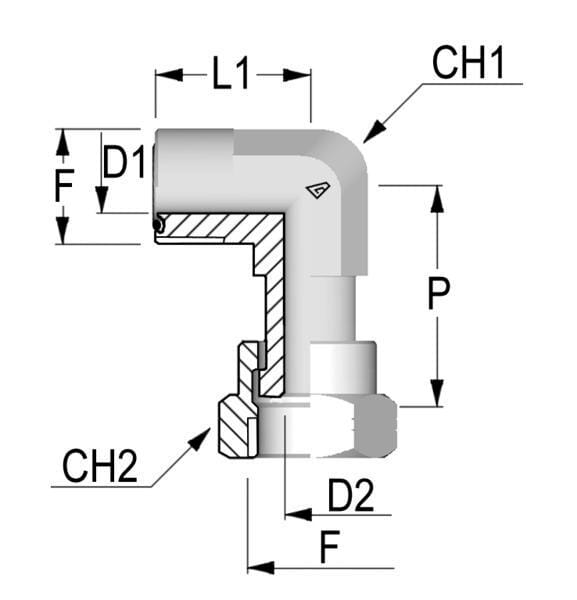

| CH1Connection no 1 wrench size | 19.0 mm |
|---|---|
| Connection 1, thread diameter | 13/16 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 13/16 Inch |
| Connection 2, threads per inch | 16 |
| Connection 2, thread type | ORFS |
| Connection 2, type | Stand pipe |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 24.0 mm |
| Connection no 1 threads per inch | 16 |
| L1Connection no 1 center to end distance | 38 mm |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Max working pressure | 400 BAR |
| PConnection 2, centre to end distance | 28 mm |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request |
| Pros | High tightening torque, Reusable |
| Series connection 1 | n/a |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 135 g |
| Dimensions | 68 × 40 × 25 mm |
| Dangerous goods | No |
You might also like

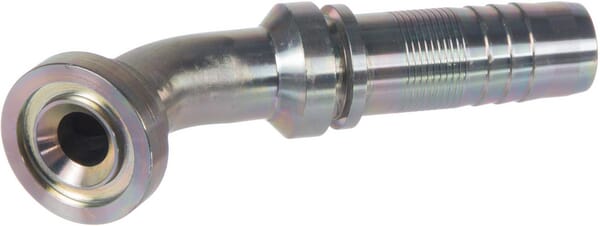

BPA000358801
Alfagomma Insert NS-DN25-flange diameter 41,3 45 SFSNS251245G2
£28.65 excl.
£34.38 incl.
In stock
Expected to ship on Friday 18 September

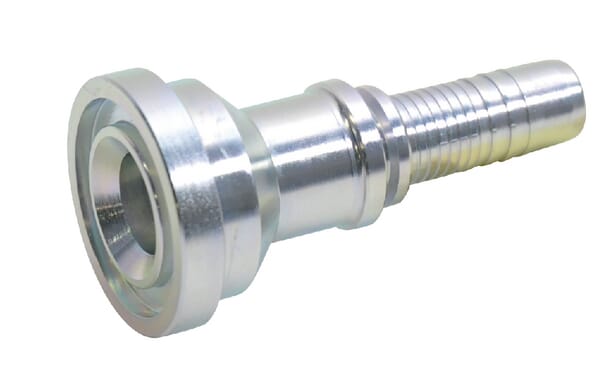

BPA000343753
Alfagomma Insert with flange DN32-diameter 60.3mm PFL3224
£32.84 excl.
£39.41 incl.
In stock
Expected to ship on Monday 21 September
BPA000253110
Alfagomma Insert F NS-DN25-30S-M42x2 DKOSNS2542G2
£17.39 excl.
£20.87 incl.
In stock
Expected to ship on Friday 18 September
BPA000241598
Alfagomma Bend, female thread, BSPT 3/8" CGM38GF38
£12.76 excl.
£15.31 incl.
In stock
Expected to ship on Friday 18 September
BPA000388516
Alfagomma Adaptor 1 ORFS x 1/2 BSP VNOB1608
£8.05 excl.
£9.66 incl.
In stock
Expected to ship on Friday 18 September

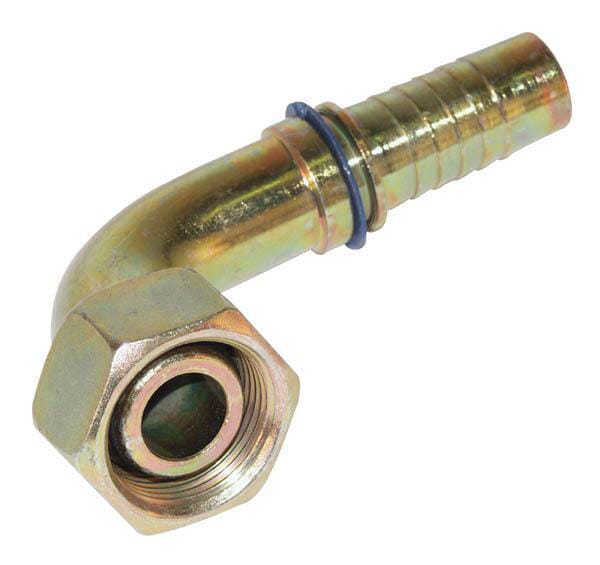

BPA000344001
Alfagomma Insert DN10-M18x1.5 Box 20 pcs PGLO101890P020
£54.63 excl.
£65.56 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed

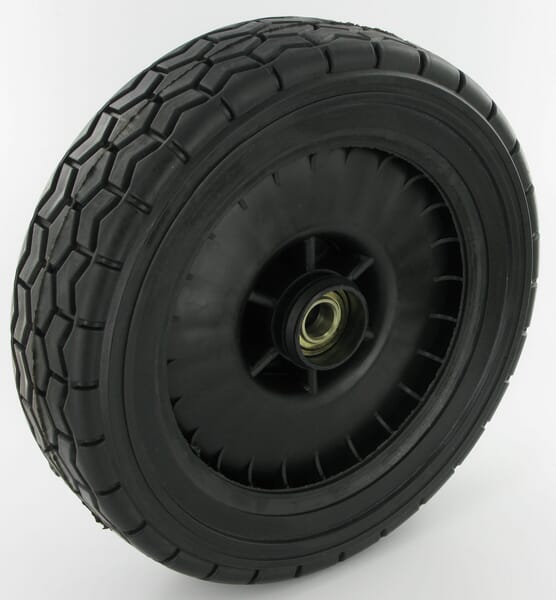

BPA000114133
Honda machinery parts Rear wheel 42710VF1000
£36.85 excl.
£44.22 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000265380
SKF Housing Unit SKF Foodline F4BC25MTPZM
£235.94 excl.
£283.13 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000405180
GLT/LHG Plain bearing bush 20x23x30mm ZB202330PVC
£9.90 excl.
£11.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000207347
Kverneland Pin d25h9x56x40 din1433 A131898961
£23.22 excl.
£27.86 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000148294
Bondioli&Pavesi Guard complete S6 ZS 1210 mm 5CS6121FXZS
£268.71 excl.
£322.45 incl.
In stock
Expected to ship on Friday 18 September
BPA000173781
Kramp Self tapping screw 4.8x13mm PH2 pan head, DIN 7504 7504N4813P200
£0.04 excl.
£0.05 incl.
In stock
Expected to ship on Friday 18 September
BPA000393440
Burnett & Hillman Adaptor 1 5/16 x 1 7/8 UNF VNJW2130
£55.76 excl.
£66.91 incl.
In stock
Expected to ship on Friday 18 September

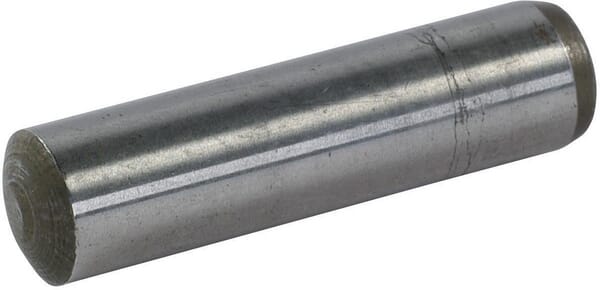

BPA000151130
