£12.46
excl. VAT
£14.95 incl. VAT
£14.95
incl. VAT
£12.46 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

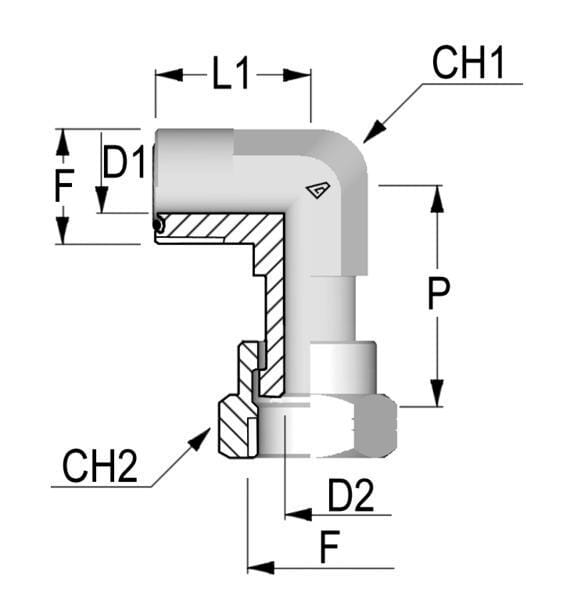

| CH1Connection no 1 wrench size | 14.0 mm |
|---|---|
| Connection 1, thread diameter | 9/16 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 9/16 Inch |
| Connection 2, threads per inch | 18 |
| Connection 2, thread type | ORFS |
| Connection 2, type | Stand pipe |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 threads per inch | 18 |
| L1Connection no 1 center to end distance | 26.5 mm |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Max working pressure | 400 BAR |
| PConnection 2, centre to end distance | 21.5 mm |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request |
| Pros | High tightening torque, Reusable |
| Series connection 1 | n/a |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 57 g |
| Dimensions | 50 × 32 × 19 mm |
| Dangerous goods | No |
You might also like
BPA000375583
Alfagomma T piece M/M/F 7/16 JIC TOU07
£11.43 excl.
£13.72 incl.
In stock
Expected to ship on Monday 21 September
BPA000343751
Alfagomma Insert with flange DN32-diameter 50.8mm-45° PFL322045
£35.00 excl.
£42.00 incl.
In stock
Expected to ship on Monday 21 September
BPA000251416

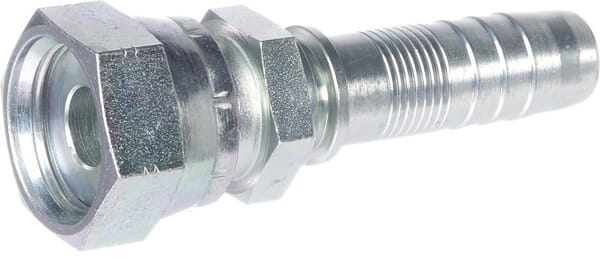

Alfagomma Insert F NS-DN40-2" ORFS DAVNS4032G2
£53.40 excl.
£64.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000253025

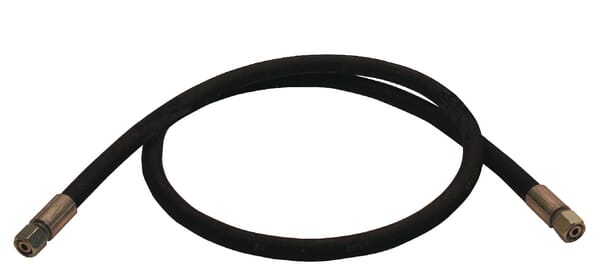

Alfagomma Hydraulic hose DN08 1600mm DKLO81600
£30.39 excl.
£36.47 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000344102

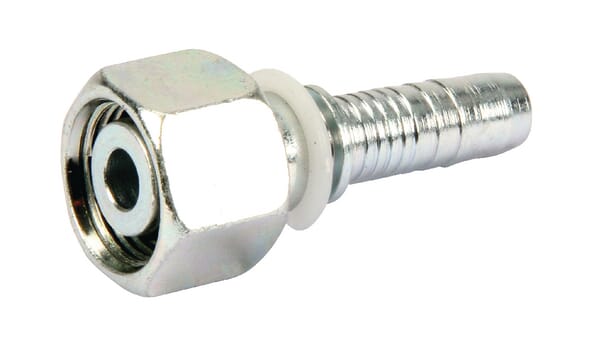

Alfagomma Insert DN06-M14x1.5 Box 75 pcs PGLO614P075
£72.73 excl.
£87.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000289937

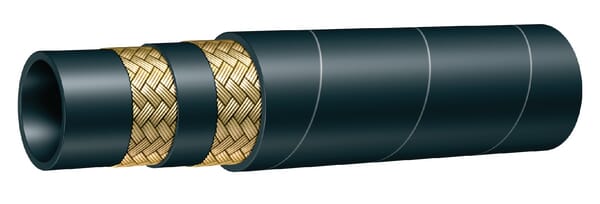

Alfagomma Hydraulic hose EN853-2SN-DN08 HSTHF8
