£16.83
excl. VAT
£20.20 incl. VAT
£20.20
incl. VAT
£16.83 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details

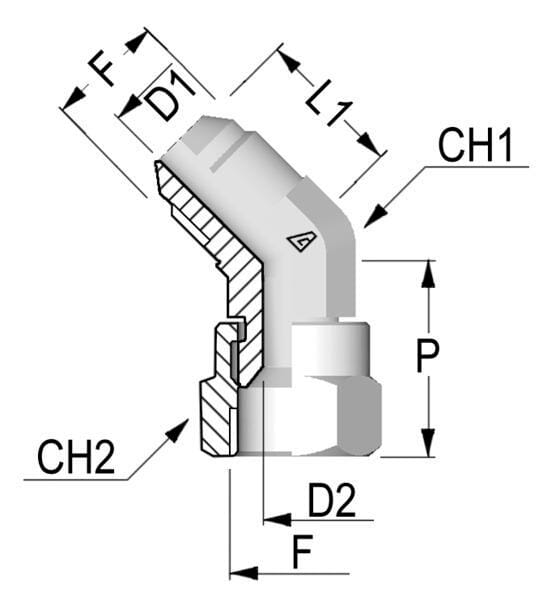

| Connection 1, thread diameter | 1-1/16 Inch |
|---|---|
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, centre to end distance | 34 mm |
| Connection 2, thread diameter | 1-1/16 Inch |
| Connection 2, threads per inch | 12 |
| Connection 2, thread type | JIC |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 diameter | 20 mm |
| Connection no 1 threads per inch | 12 |
| Max working pressure | 280 BAR |
| Pipe diameter | 3/4 Inch |
| Product details | For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37º cone side is UNF in accordance with ANSI |

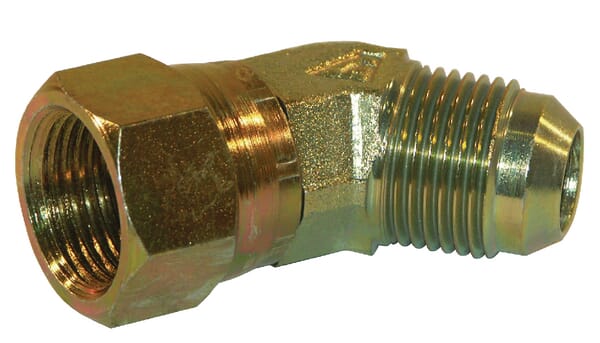

| Shape | Elbow 45° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 208 g |
| Dimensions | 80 × 52 × 32 mm |
| Dangerous goods | No |
You might also like
BPA000349126

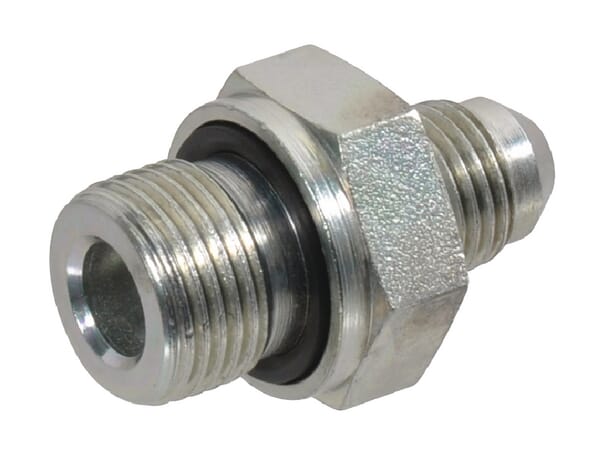

Alfagomma Male stud 1/2 JIC x 3/8 BSP RIB0806WD
£3.76 excl.
£4.51 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000253016

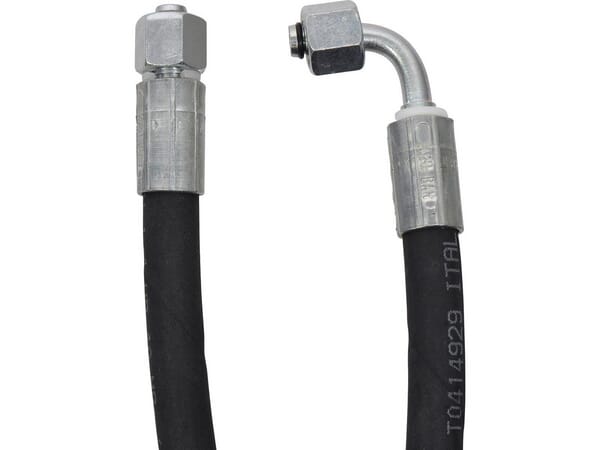

Alfagomma Hydr.Hose compl.DN06.800-90° DKLO680090
£22.74 excl.
£27.29 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000338446

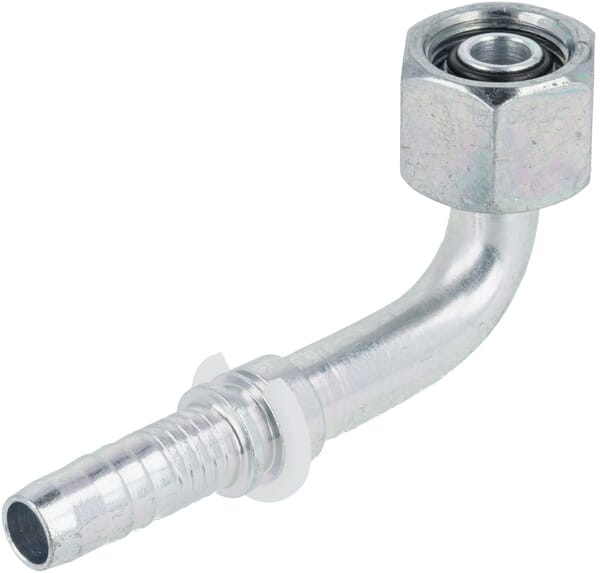

Alfagomma Insert DN10-3/8 BSP-90 ø32 PF10690S32
£3.90 excl.
£4.68 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000358619

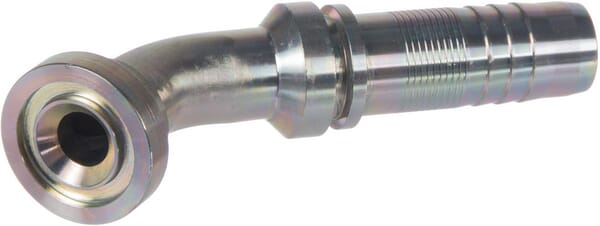

Alfagomma Insert NS-DN40-flange diameter 60.3 45 SFLNS402445G2
£72.24 excl.
£86.69 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000349132
Alfagomma Male stud 9/16 JIC x 3/8 BSP RIB0906WD
£3.45 excl.
£4.14 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000253043

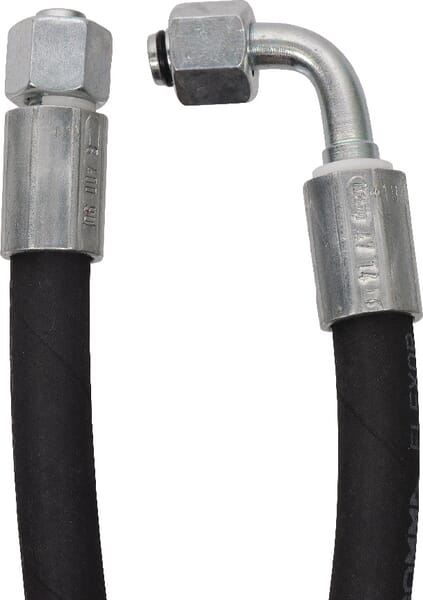

Alfagomma Hydr. hose cpl DN08.400-90° DKLO840090
