£14.37
excl. VAT
£17.24 incl. VAT
£17.24
incl. VAT
£14.37 excl. VAT
In stock
Expected to ship on Tuesday 22 September

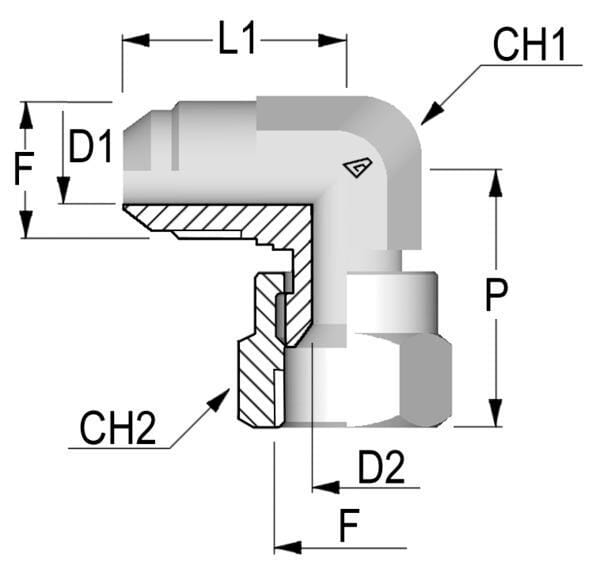

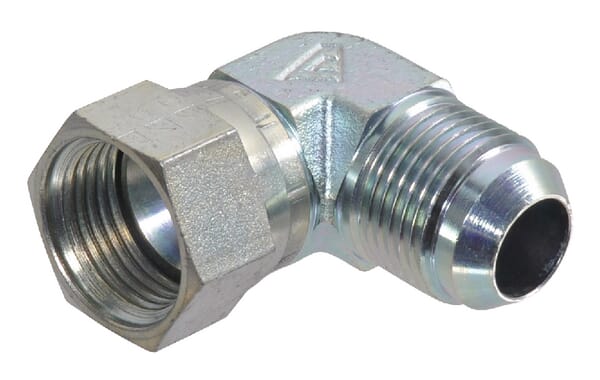

Product details
| Cone angle side 1 | 74 ° |
|---|---|
| Connection 1, thread diameter | 1-1/16 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 42 mm |
| Connection 2, diameter | 1/16 Inch |
| Connection 2, thread diameter | 1-1/16 Inch |
| Connection 2, thread pitch | 12.00 mm |
| Connection 2, thread type | JIC |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection no 1 diameter | 18 mm |
| Connection no 1 thread length | 44.3 mm |
| Connection no 1 threads per inch | 12 |
| Max working pressure | 280 BAR |
| Pipe diameter | 3/4 Inch |
| Product details | For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 263 g |
| Dimensions | 90 × 70 × 37 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000365520
Alfagomma HSK-PQ swage coupling set SWAGEKIT2HSKPQ
£2,658.31 excl.
£3,189.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000344121

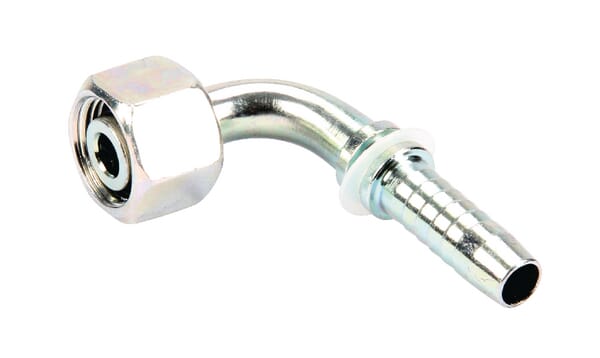

Alfagomma Insert DN08-M14x1.5-8L-90° PGLO81490
£13.60 excl.
£16.32 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000342881

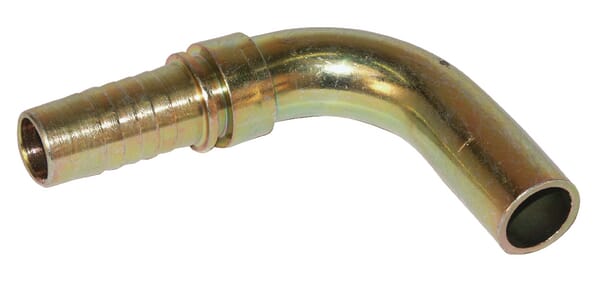

Alfagomma Insert DN16-diameter 22mm-90° PT162290
£11.28 excl.
£13.54 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000358447

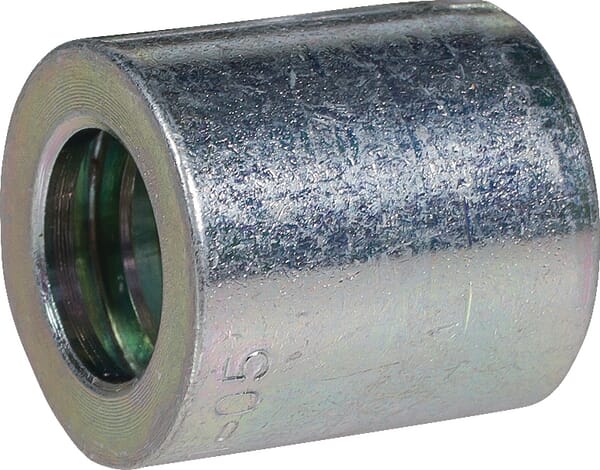

Alfagomma Ferrule diameter 24x24.7mm DN8 Steel / zinc-plated SFAD108P360
£419.57 excl.
£503.48 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000358833

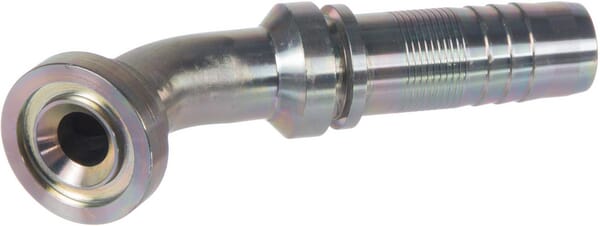

Alfagomma Insert NS-DN50-flange diameter 79,4 45 SFSNS503245G2
£127.52 excl.
£153.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000349132

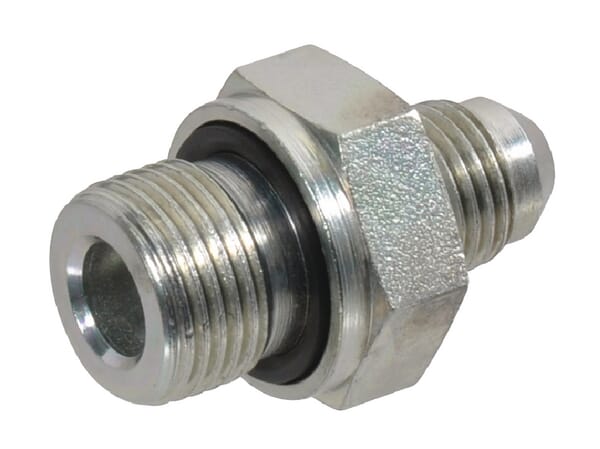

Alfagomma Male stud 9/16 JIC x 3/8 BSP RIB0906WD
