£9.81
excl. VAT
£11.77 incl. VAT
£11.77
incl. VAT
£9.81 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Connection 1, thread diameter | 1/2 Inch |
|---|---|
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, centre to end distance | 20 mm |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 20 |
| Connection 2, thread type | JIC |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 diameter | 8 mm |
| Connection no 1 thread length | 26 mm |
| Connection no 1 threads per inch | 20 |
| Max working pressure | 380 BAR |
| Pipe diameter | 5/8 Inch |
| Product details | For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Shape | Elbow 45° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 43 g |
| Dimensions | 50 × 20 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000374510

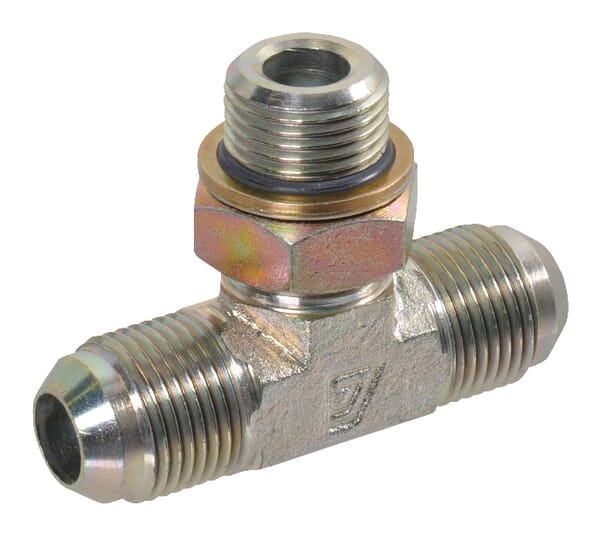

Alfagomma T piece 7/8 JIC x 1/2 BSP TIB1408
£20.34 excl.
£24.41 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000226178

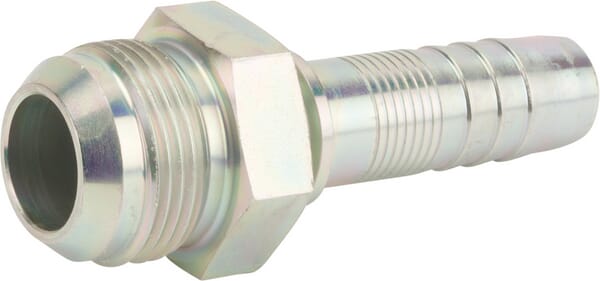

Alfagomma Insert M NS DN40-1.7/8 UNF AGJNS4030G2
£35.77 excl.
£42.92 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000358722
Alfagomma Insert NS-DN25-flange diameter 54,0 60 SUPERCAT SFSCNS252060G2
£53.22 excl.
£63.87 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000358803
Alfagomma Insert NS-DN25-flange diameter 41,3 SFSNS2512G2
£17.12 excl.
£20.54 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000358464
Alfagomma Ferrule diameter 25x24.7mm DN8 zinc-plated white passivated SFAD208P300
£350.49 excl.
£420.59 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000343861

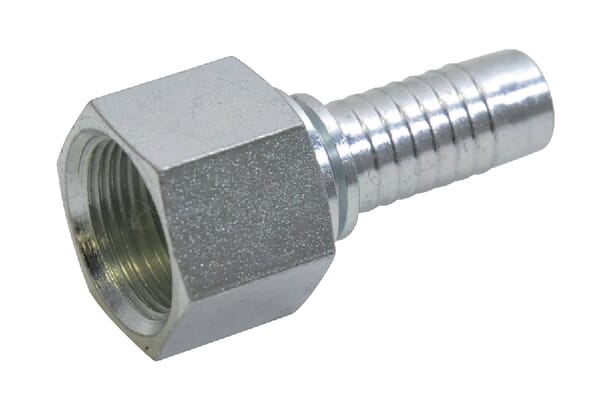

Alfagomma Insert DN16-3/4 BSP face seal PFV1612
