£7.78
excl. VAT
£9.34 incl. VAT
£9.34
incl. VAT
£7.78 excl. VAT
In stock
Expected to ship on Monday 21 September

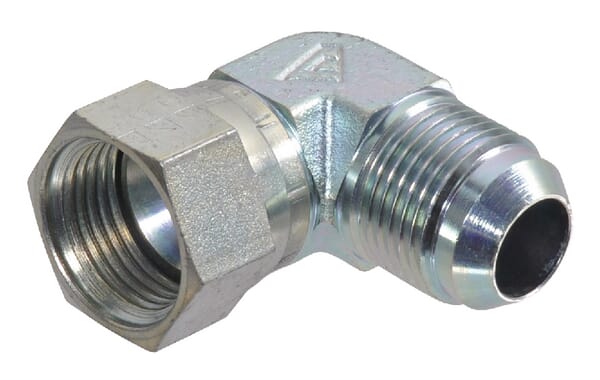

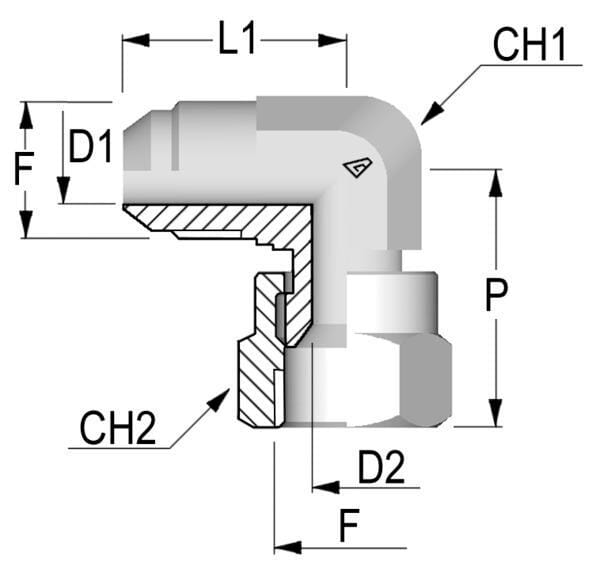

Product details
| Cone angle side 1 | 74 ° |
|---|---|
| Connection 1, thread diameter | 1/2 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 24.5 mm |
| Connection 2, diameter | 1/2 Inch |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, thread pitch | 20.00 mm |
| Connection 2, thread type | JIC |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection no 1 diameter | 8 mm |
| Connection no 1 thread length | 27 mm |
| Connection no 1 threads per inch | 20 |
| Max working pressure | 380 BAR |
| Pipe diameter | 5/8 Inch |
| Product details | For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 50 g |
| Dimensions | 42 × 40 × 20 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000362246

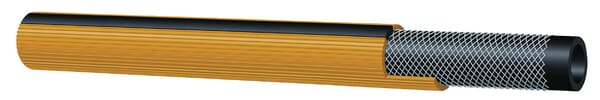

Alfagomma Boom hose 3/8" 80bar 100m SL593010100
£434.02 excl.
£520.82 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000344241
Alfagomma Insert DN06-M18x1,5-10S-90° PGSO61890
£3.39 excl.
£4.07 incl.
In stock
Expected to ship on Monday 21 September
BPA000301143
Alfagomma Elbow male/female 7/16 JIC 45° KOU4507
£7.06 excl.
£8.47 incl.
In stock
Expected to ship on Monday 21 September
BPA000388543

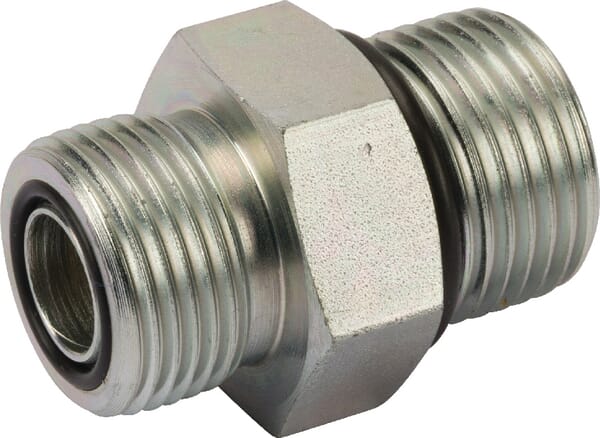

Alfagomma Adaptor 13/16 ORFS x 7/8 UNF VNOU1314
£11.46 excl.
£13.75 incl.
In stock
Expected to ship on Monday 21 September
BPA000343720

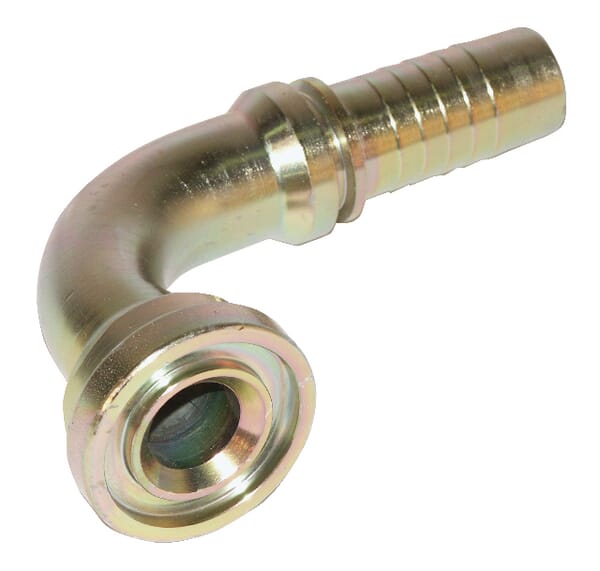

Alfagomma Insert with flange DN13-diameter 30.2mm-90° PFL13890
£15.16 excl.
£18.19 incl.
In stock
Expected to ship on Monday 21 September
BPA000312178
Alfagomma L stud 9/16 UNF LIU0909
£14.01 excl.
£16.81 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000119108
Kramp Circlip external 19x1.2mm DIN471 Stainless steel 47119RVS
£0.58 excl.
£0.70 incl.
In stock
Expected to ship on Monday 21 September
BPA000055247

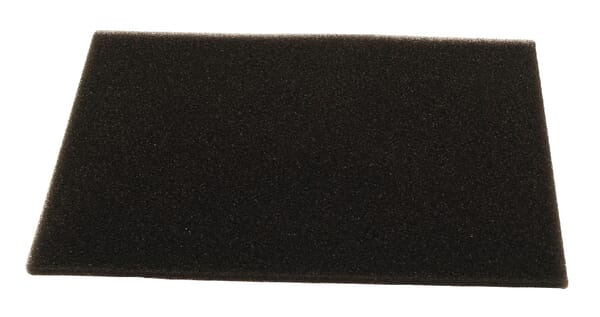

Honda Pre-filter for 17210-ZJ1-842 17218ZJ1840
