£24.06
excl. VAT
£28.87 incl. VAT
£28.87
incl. VAT
£24.06 excl. VAT
In stock
Expected to ship on Monday 21 September

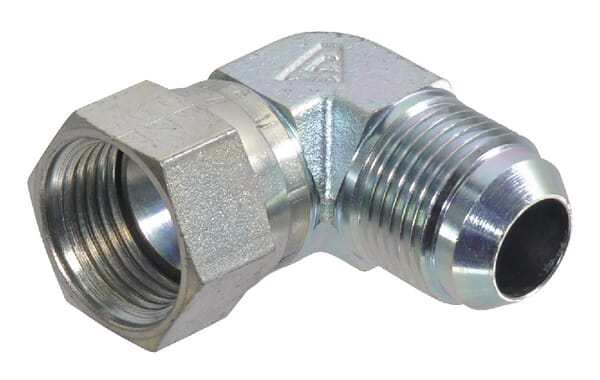

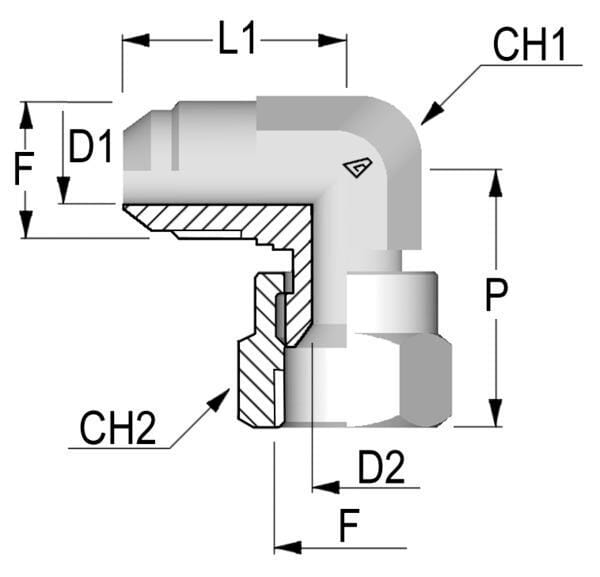

Product details
| Cone angle side 1 | 74 ° |
|---|---|
| Connection 1, thread diameter | 1-5/16 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, centre to end distance | 46 mm |
| Connection 2, diameter | 1-5/16 Inch |
| Connection 2, thread diameter | 1-5/16 Inch |
| Connection 2, thread pitch | 12.00 mm |
| Connection 2, thread type | JIC |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 thread length | 50.6 mm |
| Connection no 1 threads per inch | 12 |
| Max working pressure | 190 BAR |
| Pipe diameter | 1 Inch |
| Product details | For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 392 g |
| Dimensions | 75 × 70 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000358467
Alfagomma Ferrule diameter 30x30.5mm DN13 Steel / zinc-plated SFAD213
£1.82 excl.
£2.18 incl.
In stock
Expected to ship on Friday 18 September
BPA000247905

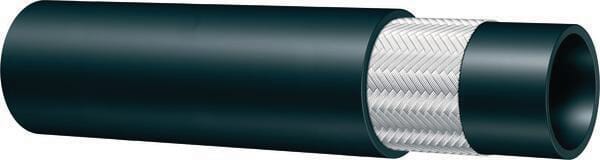

Alfagomma Hydraulic hose R6 DN10 CR610A
£4.52 excl.
£5.42 incl.
In stock
Expected to ship on Friday 18 September
BPA000253148

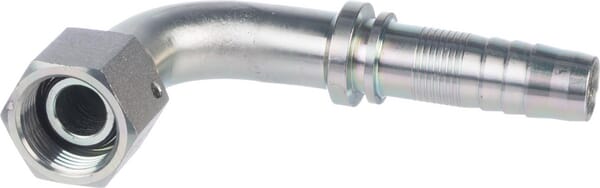

Alfagomma Insert F NS-DN20-1" BSP 90 DKRNS201690G2
£25.39 excl.
£30.47 incl.
In stock
Expected to ship on Friday 18 September
BPA000247938

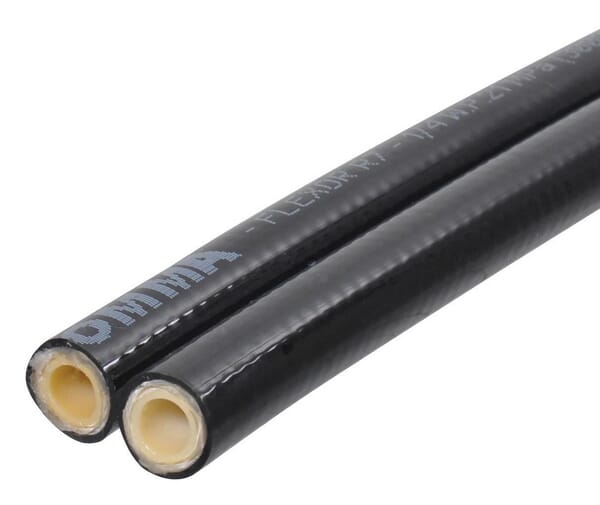

Alfagomma SAE hose 100-R7 5/16 twin CR788A
£12.43 excl.
£14.92 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000278526
Alfagomma Hydraulic hose 1/2" 3Lg FXP313
£17.73 excl.
£21.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000336522

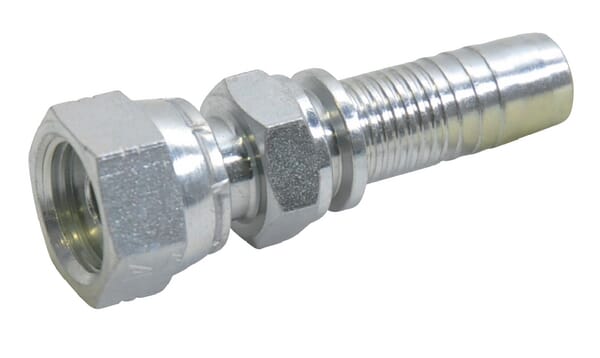

Alfagomma Insert DN13-11/16 ORFS PAV1311
