£43.03
excl. VAT
£51.64 incl. VAT
£51.64
incl. VAT
£43.03 excl. VAT
In stock
Expected to ship on Thursday 17 September
Product details
| Cone angle side 1 | 74 ° |
|---|---|
| Connection 1, thread diameter | 1-5/8 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, centre to end distance | 50.4 mm |
| Connection 2, diameter | 1-5/8 Inch |
| Connection 2, thread diameter | 1-5/8 Inch |
| Connection 2, thread pitch | 12.00 mm |
| Connection 2, thread type | JIC |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 thread length | 58.5 mm |
| Connection no 1 threads per inch | 12 |
| Max working pressure | 190 BAR |
| Pipe diameter | 1/2 Inch |
| Product details | For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 775 g |
| Dimensions | 90 × 85 × 60 mm |
| Dangerous goods | No |
You might also like

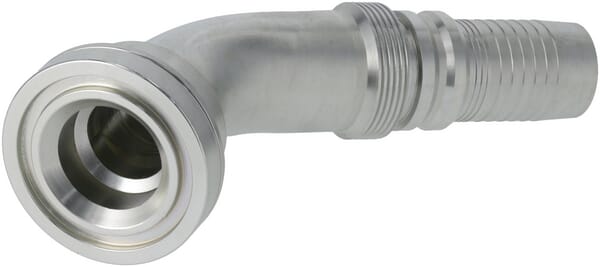

BPA000358776
Alfagomma Swage coupling 4SH-DN32 with flange diameter 63,5mm 45° SFSH322445G2
£86.55 excl.
£103.86 incl.
In stock
Expected to ship on Thursday 17 September

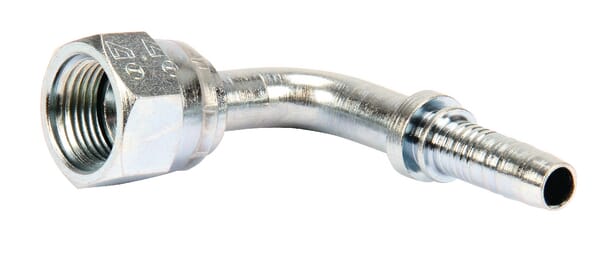

BPA000336389
Alfagomma Insert DN40-1"7/8-UNF-90° PA403090
£65.04 excl.
£78.05 incl.
Backorder available
Usually ships within 3–8 weeks

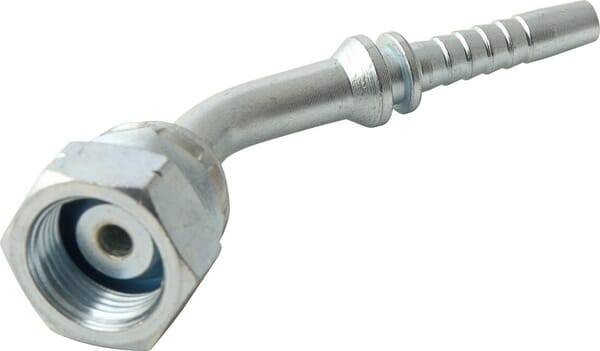

BPA000253151
Alfagomma Insert F NS-DN25-1" BSP 45 DKRNS251645G2
£24.92 excl.
£29.90 incl.
In stock
Expected to ship on Thursday 17 September

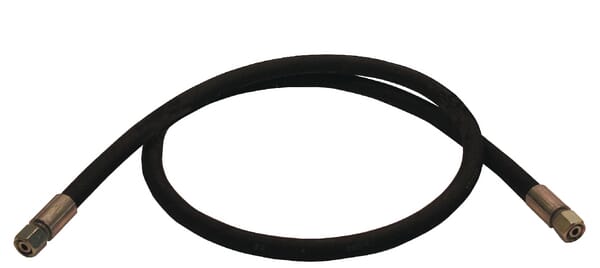

BPA000252982
Alfagomma Hydraulic hose DN06 1600mm DKLO61600
£28.03 excl.
£33.64 incl.
In stock
Expected to ship on Friday 18 September
BPA000301143
Alfagomma Elbow male/female 7/16 JIC 45° KOU4507
£7.06 excl.
£8.47 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping

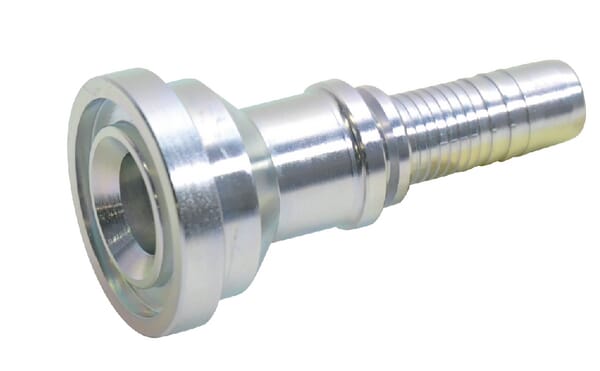

BPA000343778
