£5.98
excl. VAT
£7.18 incl. VAT
£7.18
incl. VAT
£5.98 excl. VAT
In stock
Expected to ship on Thursday 17 September

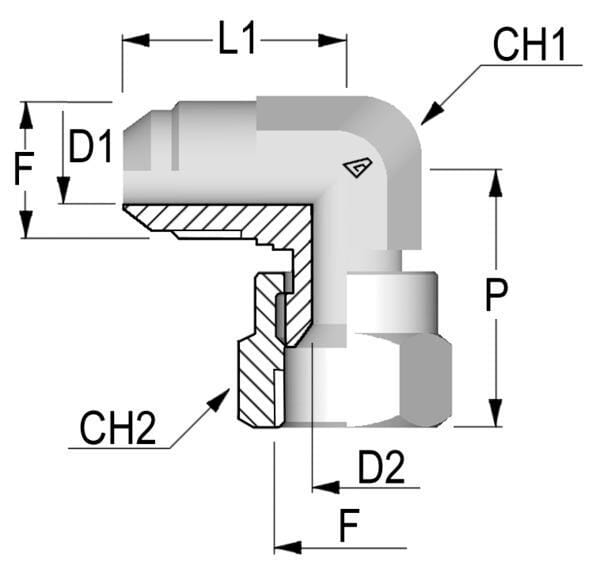

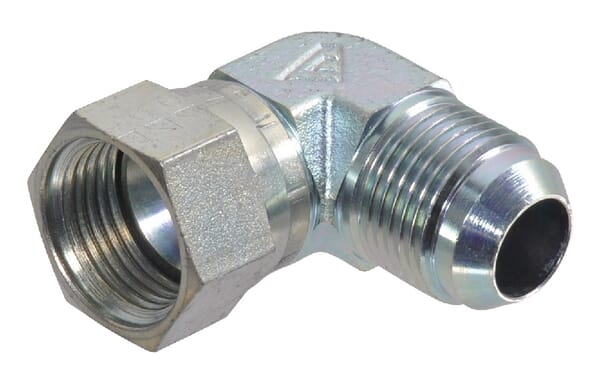

Product details
| Cone angle side 1 | 74 ° |
|---|---|
| Connection 1, thread diameter | 7/16 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 22.5 mm |
| Connection 2, diameter | 7/16 Inch |
| Connection 2, thread diameter | 7/16 Inch |
| Connection 2, thread pitch | 20.00 mm |
| Connection 2, thread type | JIC |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection no 1 diameter | 6 mm |
| Connection no 1 thread length | 25.2 mm |
| Connection no 1 threads per inch | 20 |
| Long description | Technical information:, For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI. |
| Max working pressure | 380 BAR |
| Pipe diameter | 1/4 Inch |
| Product details | For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 42 g |
| Dimensions | 30 × 30 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000279078

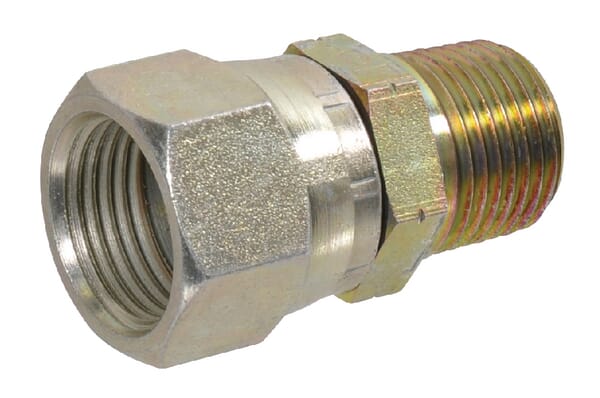

Alfagomma Swivel 7/16 JIC x 1/4 NPT FMUN0704
£11.75 excl.
£14.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000358620

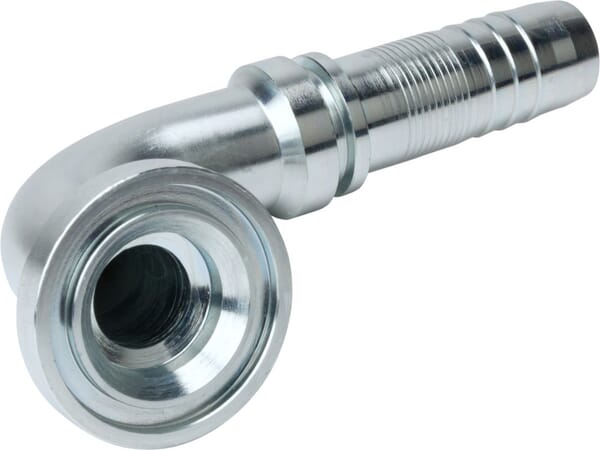

Alfagomma Insert NS-DN40-flange diameter 60.3 90 SFLNS402490G2
£67.92 excl.
£81.50 incl.
In stock
Expected to ship on Thursday 17 September
BPA000358460
Alfagomma Ferrule diameter 21x24mm DN5 Steel / zinc-plated SFAD205
£1.12 excl.
£1.34 incl.
In stock
Expected to ship on Thursday 17 September
BPA000343346
Alfagomma Insert DN06-diameter 10mm PU610
£1.41 excl.
£1.69 incl.
In stock
Expected to ship on Thursday 17 September
BPA000252873

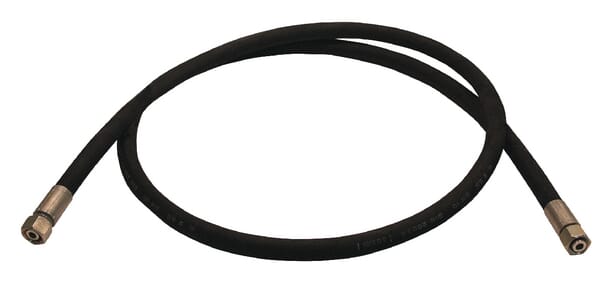

Alfagomma Hydraulic hose DN10 1400mm DKLO101400
£30.37 excl.
£36.44 incl.
In stock
Expected to ship on Friday 18 September
BPA000298850

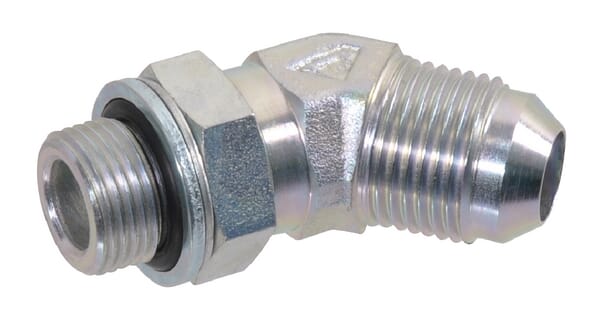

Alfagomma Elbow 1-5/16 JIC x 1 BSP 45° KIB452116
