£150.25
excl. VAT
£180.30 incl. VAT
Pack of 25 · £6.01 each excl. VAT
£180.30
incl. VAT
£150.25 excl. VAT
Pack of 25 · £7.21 each incl. VAT
In stock
Expected to ship on Friday 18 September

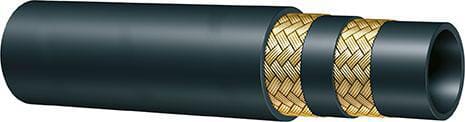

Product details
| Bend radius | 130 mm |
|---|---|
| Burst pressure | 1100 BAR |
| DN | 12 mm |
| EN Standard | 857 2SC |
| Hose inside diameter | 12.7 mm |
| Hose outside diameter | 19.9 mm |
| Includes | Hose reel, These reels contain a maximum of two lengths per reel, with the shortest length being at least 10 metres. |
| Length | 25 m |
| Material inside | Synthetic rubber |
| Material outside | Synthetic rubber |
| Max working pressure | 275 BAR |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min working temperature | -40 °C |
| Packing type | Reel |
| Product details | Standard hose for all applications, very suitable for construction machinery and agriculture, Mineral and glycol-based liquids, vegetable and mineral lubricants, crude oils, cooling water, compressed air, etc., Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions |
| Pros | Durable outer coating resistant to ozone and oil, Halogen free |
| Qty. Rounding | 25 |
| Reinforcement material | Steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Weight | 0.47 kg/m |
Logistics
| EAN | 8719607319478 |
|---|---|
| Unit of measure | MTR |
| Weight | 530 g |
| Dimensions | 1000 × 15 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000289567
Alfagomma Hose HSKHF13 on reel HSKHF13P050M
£5.48 excl.
£6.58 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000358506

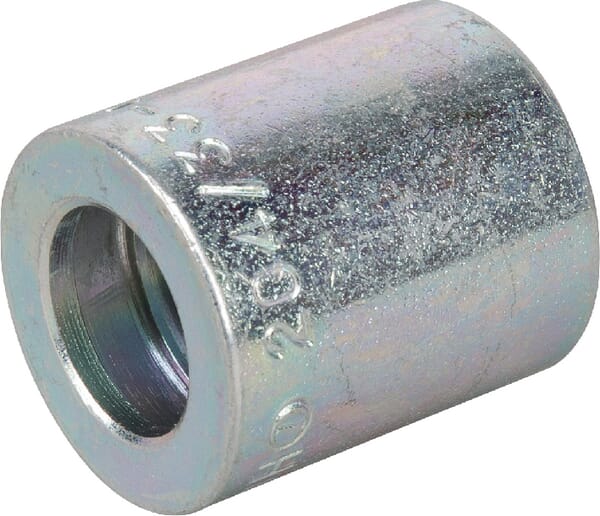

Alfagomma Ferrule diameter 23x27.5mm DN10 zinc-plated white passivated SFASK110P260
£230.97 excl.
£277.16 incl.
In stock
Expected to ship on Friday 18 September
BPA000252959

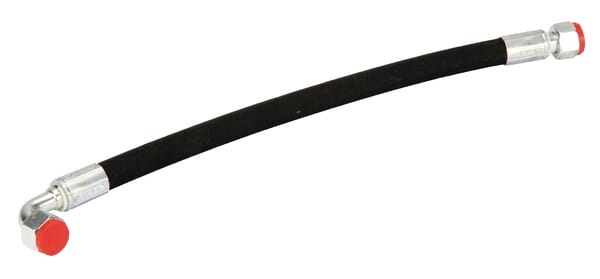

Alfagomma Hydraulic Hose complete DN12.500-90° DKLO1350090
£26.21 excl.
£31.45 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000358788
Alfagomma Swage coupling 4SH-DN50 with flange diameter 79,4mm 90° SFSH503290G2
£177.19 excl.
£212.63 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000299502

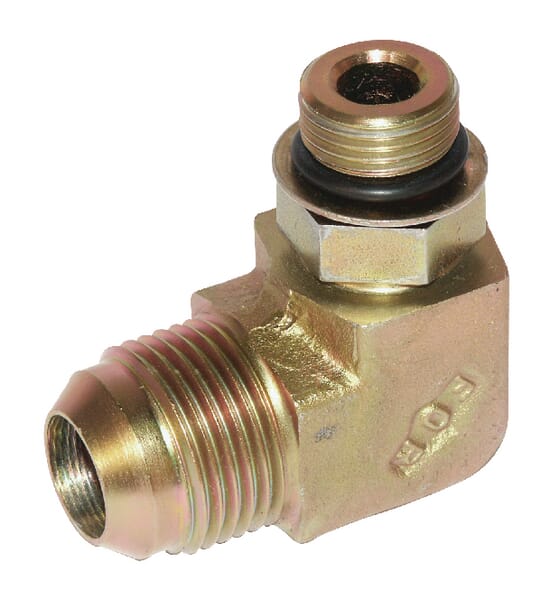

Alfagomma Elbow 1-1/16 JIC x 3/4 UNF KIU1712
£24.56 excl.
£29.47 incl.
In stock
Expected to ship on Monday 21 September
BPA000344157
Alfagomma Insert DN10-M20x1,5-12S-45° PGSO102045
£4.66 excl.
£5.59 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000403468
Kramp X-ring 110.49x5.33mm 70 shore XR11049533P001
£4.21 excl.
£5.05 incl.
In stock
Expected to ship on Friday 18 September
BPA000405074
GLT/LHG Plain bearing bush 14x16x25mm ZB141625DIN
£2.20 excl.
£2.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000173772

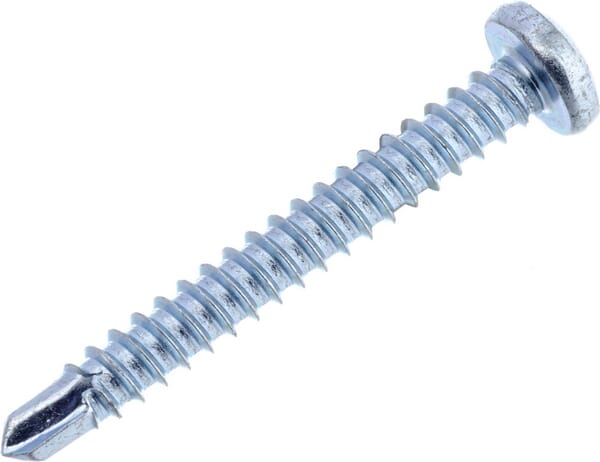

Kramp Self tapping screw 3.9x32mm PH2 pan head, DIN 7504 7504N3932P200
£0.05 excl.
£0.06 incl.
In stock
Expected to ship on Friday 18 September
BPA000196461
Optibelt Ribbed belt 8 rib PK x1600mm 8PK1600
£40.88 excl.
£49.06 incl.
In stock
Expected to ship on Friday 18 September
BPA000195968
Hella Fuse Mini blade Low 15A Length 8.4mm blue Pack 5x 8JS728596322
£1.64 excl.
£1.97 incl.
In stock
Expected to ship on Friday 18 September
BPA000195601
Kramp Hexagon socket head cap screw DIN912 M10x65 steel 12.9 9121065129B
£0.91 excl.
£1.09 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000403951
SKF Bearing SKF Foodline YAR2052LPWZM
£159.27 excl.
£191.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000179370
Kramp Countersunk head screw DIN7991 M12x80 steel 10.9 79911280109B
£1.42 excl.
£1.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000084757
Bondioli&Pavesi Screw 4.8x22 D=15mm 310001428R30
£0.71 excl.
£0.85 incl.
In stock
Expected to ship on Friday 18 September
BPA000083695

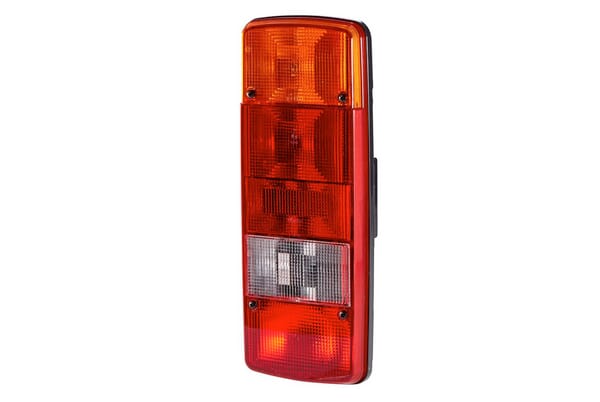

Hella Rear light RH rectangular, 12/24V, red/amber/white, bolt on, 343x75x133mm, 2SK003567661
