£199.25
excl. VAT
£239.10 incl. VAT
Pack of 25 · £7.97 each excl. VAT
£239.10
incl. VAT
£199.25 excl. VAT
Pack of 25 · £9.56 each incl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Bend radius | 170 mm |
|---|---|
| Burst pressure | 1000 BAR |
| DN | 16 mm |
| EN Standard | 857 2SC |
| Hose inside diameter | 15.9 mm |
| Hose outside diameter | 23.4 mm |
| Includes | Hose reel, These reels contain a maximum of two lengths per reel, with the shortest length being at least 10 metres. |
| Length | 25 m |
| Material inside | Synthetic rubber |
| Material outside | Synthetic rubber |
| Max working pressure | 250 BAR |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min working temperature | -40 °C |
| Packing type | Reel |
| Product details | Standard hose for all applications, very suitable for construction machinery and agriculture, Mineral and glycol-based liquids, vegetable and mineral lubricants, crude oils, cooling water, compressed air, etc., Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions |
| Pros | Durable outer coating resistant to ozone and oil, Halogen free |
| Qty. Rounding | 25 |
| Reinforcement material | Steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Weight | 0.57 kg/m |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8719607319454 |
|---|---|
| Unit of measure | MTR |
| Weight | 620 g |
| Dimensions | 401 × 400 × 12 mm |
| Dangerous goods | No |
You might also like
BPA000299498

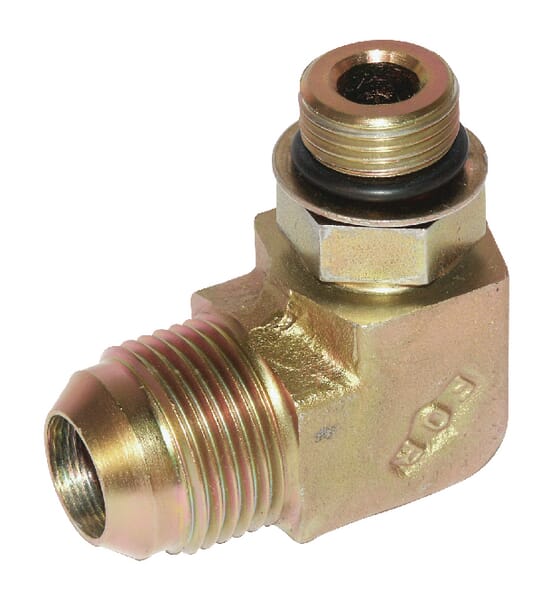

Alfagomma Elbow 3/4 JIC x 7/8 UNF KIU1214
£19.43 excl.
£23.32 incl.
In stock
Expected to ship on Monday 21 September
BPA000358492

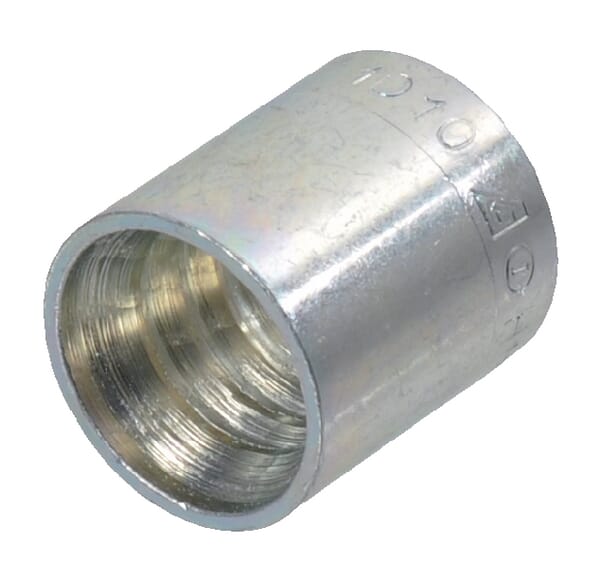

Alfagomma Ferrule NS DN16 SFANSS16G2
£4.21 excl.
£5.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000252881

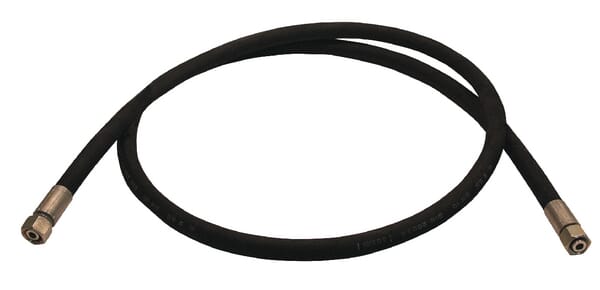

Alfagomma Hydraulic hose DN10 200mm DKLO10200
