£113.25
excl. VAT
£135.90 incl. VAT
Pack of 25 · £4.53 each excl. VAT
£135.90
incl. VAT
£113.25 excl. VAT
Pack of 25 · £5.44 each incl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Bend radius | 85 mm |
|---|---|
| Burst pressure | 1400 BAR |
| DN | 8 mm |
| EN Standard | 857 2SC |
| Hose inside diameter | 7.9 mm |
| Hose outside diameter | 14.7 mm |
| Includes | Hose reel, These reels contain a maximum of two lengths per reel, with the shortest length being at least 10 metres. |
| Length | 25 m |
| Material inside | Synthetic rubber |
| Material outside | Synthetic rubber |
| Max working pressure | 350 BAR |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min working temperature | -40 °C |
| Packing type | Reel |
| Product details | Standard hose for all applications, very suitable for construction machinery and agriculture, Mineral and glycol-based liquids, vegetable and mineral lubricants, crude oils, cooling water, compressed air, etc., Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions |
| Pros | Durable outer coating resistant to ozone and oil, Halogen free |
| Qty. Rounding | 25 |
| Reinforcement material | Steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Weight | 0.31 kg/m |
Logistics
| EAN | 8719607319515 |
|---|---|
| Unit of measure | MTR |
| Weight | 360 g |
| Dimensions | 475 × 475 × 12 mm |
| Dangerous goods | No |
You might also like
BPA000289577
Alfagomma Hose HSKHF8 on reel HSKHF8P050M
£4.04 excl.
£4.85 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000253118

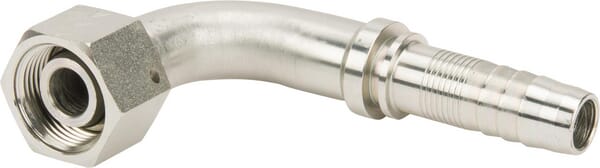

Alfagomma Insert F NS-DN40-38S-M52x2 90 DKOSNS405290G2
£106.30 excl.
£127.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000336420
Alfagomma Insert DN06-1/2-UNF-90° PA6890
£3.23 excl.
£3.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000342890

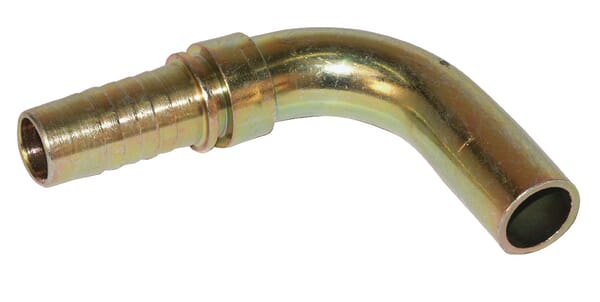

Alfagomma Insert DN20-diameter 22mm-90° PT202290
£12.36 excl.
£14.83 incl.
In stock
Expected to ship on Monday 21 September
BPA000342861

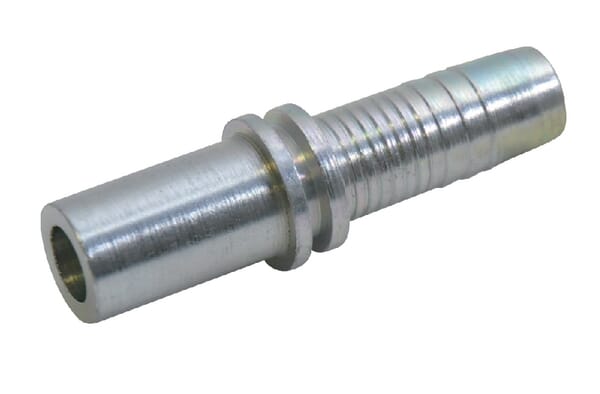

Alfagomma Insert DN12 (1/2") - diameter 10 mm standpipe PT1310
£9.73 excl.
£11.68 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000358514

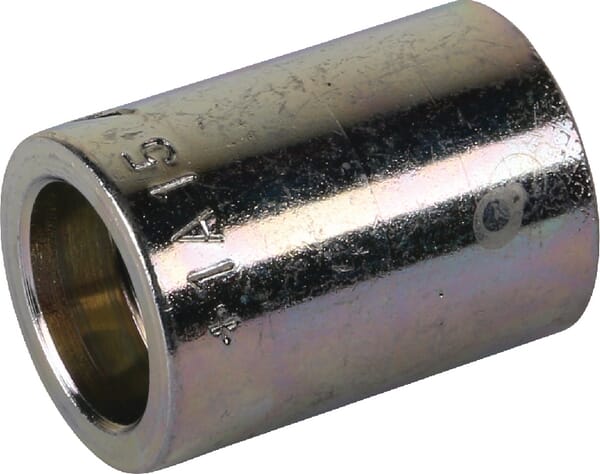

Alfagomma Ferrule diameter 19x26.5mm DN8 Steel / zinc-plated SFATP008
