£17.27
excl. VAT
£20.72 incl. VAT
£20.72
incl. VAT
£17.27 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Bend radius | 90 mm |
|---|---|
| Burst pressure | 1240 BAR |
| Colour outside | Black |
| EN Standard | 857 2SC |
| Hose inside diameter | 13 mm |
| Hose outside diameter | 20.6 mm |
| ISO standard | 11237 |
| Material inside | Synthetic rubber |
| Material outside | Synthetic rubber |
| Max working pressure | 310 BAR |
| Max working temperature | 100 °C |
| Max. working temperature | 212 °F |
| Medium | Water, Oil, Fuel, Air |
| Min working temperature | -70 °C |
| Min. working temperature | -40 °F |
| Norm | SAE 100 R16 |
| Original number equivalent | 1003610 |

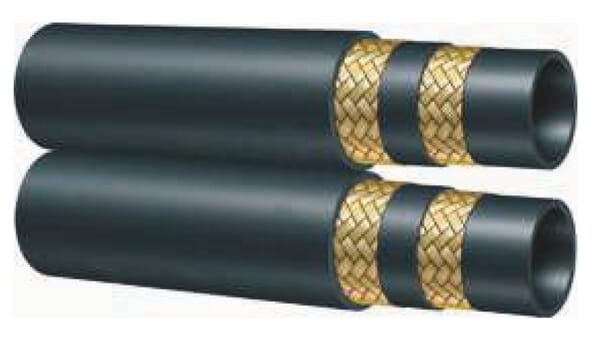

| Product details | TWIN hose, joined in wrapping stage, Hydraulic rubber compact hose with 2 braided steel wire layers of high tensile strength, Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions, Oil resistant synthetic rubber, Abrasion, ozone and hydrocarbon resistant synthetic rubber cover., High pressure hydraulic lines, fuel oil, antifreeze solutions, air and water., Temperature oil : -40 °C +100 °C, air max T = +70 °C |
| Reinforcement material | High tensile steel |
| Reinforcement type | Braid |
| Type | Oil hose, Air hose, Water hose, Hydraulic high pressure hose, Fuel hose |
| Unit | Metre |
| Weight | 1.056 kg/m |
Compatible accessories
Parts and components that work with this product.
SFAD113

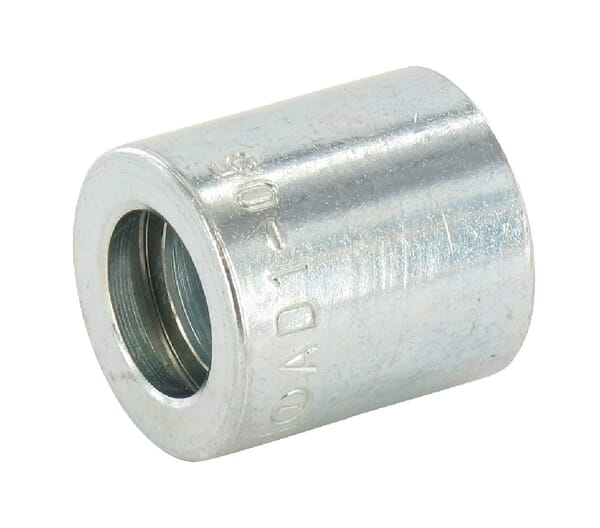

Alfagomma Ferrule diameter 29x30.5mm DN13 Steel / zinc-plated SFAD113
£1.76 excl.
£2.11 incl.
SFAD113P180

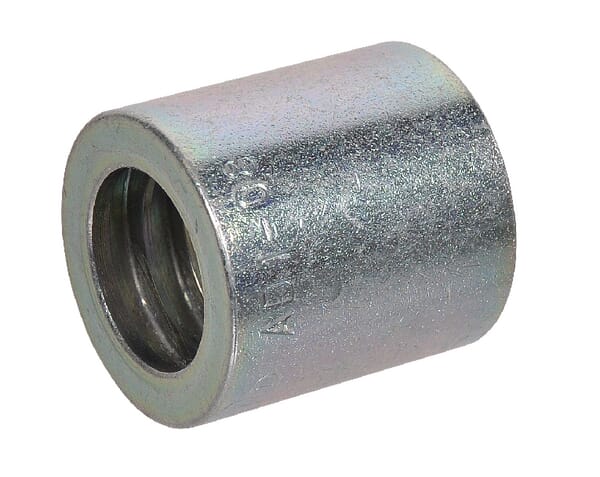

Alfagomma Ferrule diameter 29x30.5mm DN13 Steel / zinc-plated SFAD113P180
£187.73 excl.
£225.28 incl.
SFASK113
Alfagomma Ferrule diameter 27x33.5mm DN13 Steel / zinc-plated SFASK113
£1.88 excl.
£2.26 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | MTR |
| Weight | 950 g |
| Dimensions | 1000 × 40 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000338473

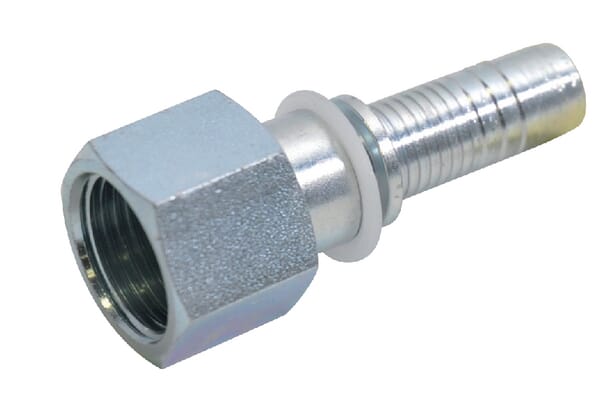

Alfagomma Insert DN13-3/8 BSP PF136
£4.08 excl.
£4.90 incl.
In stock
Expected to ship on Monday 21 September
BPA000251372

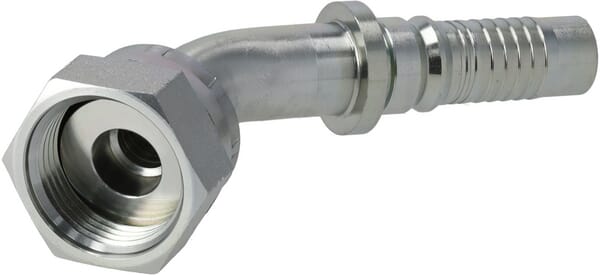

Alfagomma Swage coupling 4SH-DN16-1.3/16" ORFS-45° DAVH161945G2
£27.95 excl.
£33.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000253134

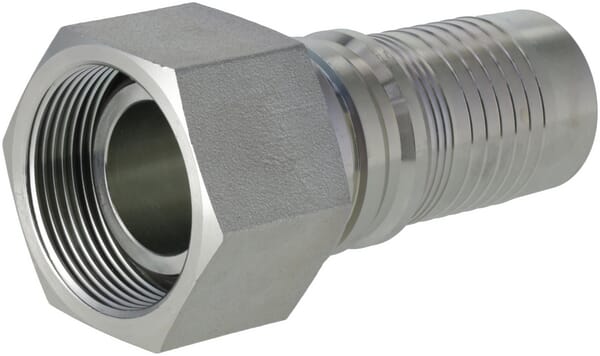

Alfagomma Swage coupling 4SH-DN40-1.1/2" BSP DKRH4024G2
£47.65 excl.
£57.18 incl.
In stock
Expected to ship on Monday 21 September
BPA000385188

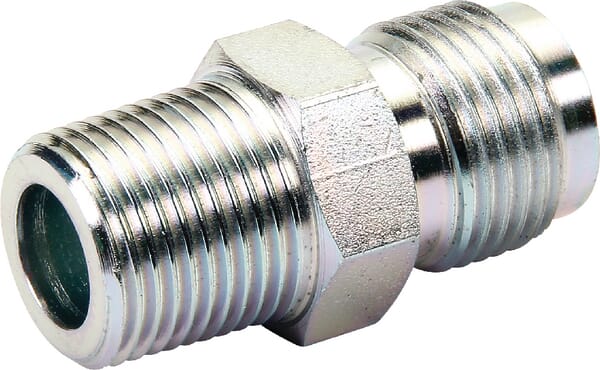

Alfagomma Adaptor MG3/8-M18x1.5, Arelco VNAM0618
£5.54 excl.
£6.65 incl.
In stock
Expected to ship on Monday 21 September
BPA000312164
Alfagomma L-stud 1-1/16UNF x 3/4BSP LIB1712
£39.39 excl.
£47.27 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000358504

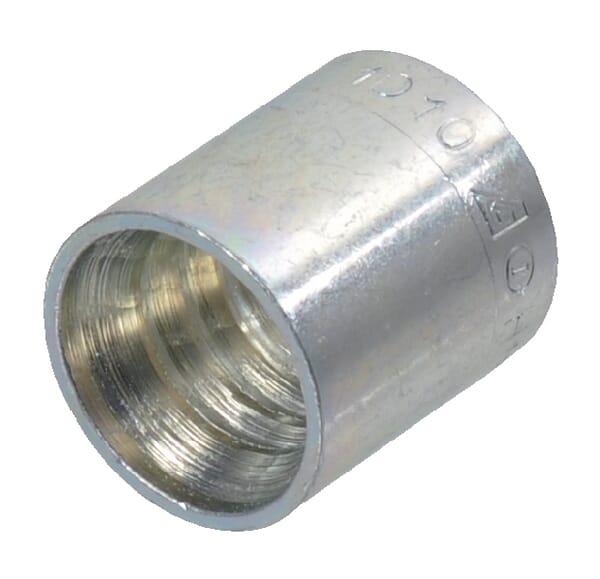

Alfagomma Ferrule diameter 21x25.5mm DN8 Steel / zinc-plated SFASK108
£1.15 excl.
£1.38 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000043098
Kramp Oil seal 13x32x7mm type:CB DIN 3760 1x 13327CBP001
£2.53 excl.
£3.04 incl.
In stock
Expected to ship on Monday 21 September
BPA000152166

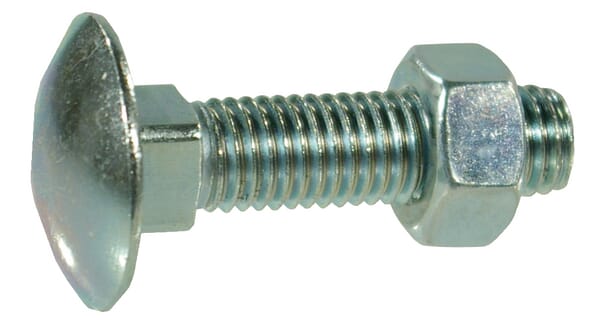

Kramp Coach bolt DIN603 M12x200 steel hot dip galvanized 4.8 60312200TV
