£10.70
excl. VAT
£12.84 incl. VAT
£12.84
incl. VAT
£10.70 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Approval | MSHA |
|---|---|
| Bend radius | 121 mm |
| Burst pressure | 960 BAR |
| DN | 20 mm |
| EN Standard | 857 2SC |
| Hose inside diameter | 19 mm |
| Hose outside diameter | 27.6 mm |
| Material inside | Synthetic rubber |
| Material outside | Synthetic rubber |
| Max working pressure | 240 BAR |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min working temperature | -40 °C |
| Number of plies | 2 |
| Product details | Hydraulic rubber compact hose with 2 braided steel wire layers of high tensile strength, Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions, Available by the metre, Available on 50-metre reel, up to 1/2", Available on 25-metre reel, up to 3/4", Always consult the latest press dimensions tables, see downloads at the bottom of each web page, For longer single-piece lengths, please contact our sales department |
| Pros | High operating pressure, Small bending radius, Extremely wear-resistant outer coating (15x vs standard), Outer coating resistant to ozone and oil |
| Qty. Rounding | 0.01 |
| Reinforcement material | Steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Weight | 0.79 kg/m |
Logistics
| EAN | 8719607061872 |
|---|---|
| Unit of measure | MTR |
| Weight | 790 g |
| Dimensions | 1000 × 29 × 29 mm |
| Dangerous goods | No |
You might also like
BPA000343732

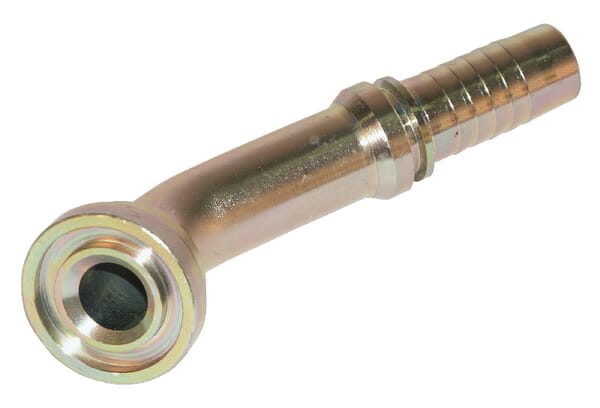

Alfagomma Insert with flange DN20-diameter 44.4mm-30° PFL201630
£32.36 excl.
£38.83 incl.
In stock
Expected to ship on Monday 21 September
BPA000298945

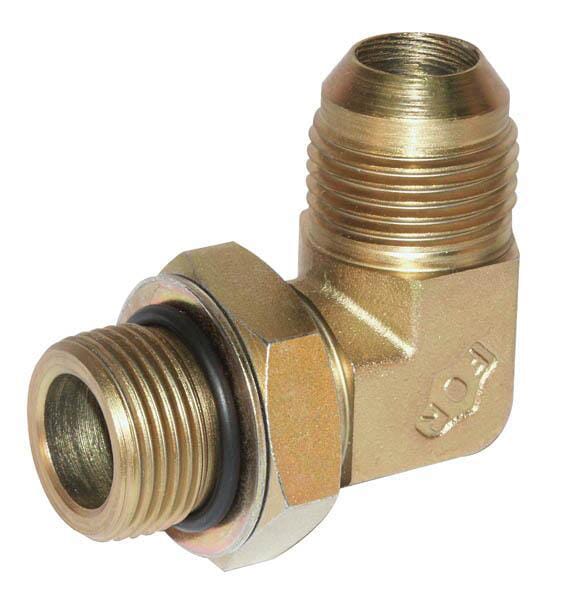

Alfagomma Elbow coupling 7/8JIC x M18 KIM1418
£16.46 excl.
£19.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000252700

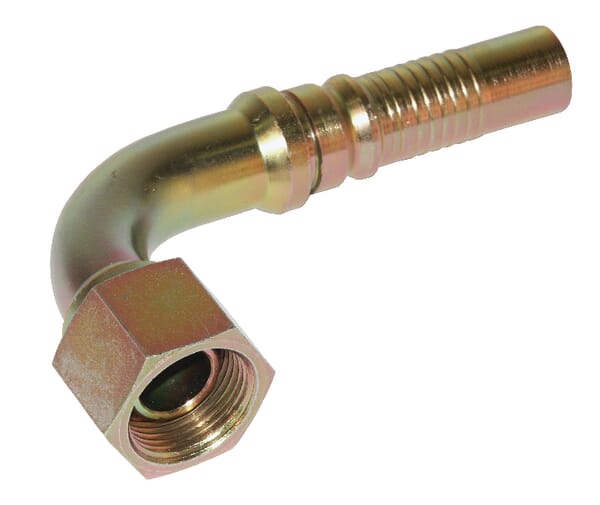

Alfagomma Insert 4SH-DN25-1" BSP-90° DKRH251690
£36.99 excl.
£44.39 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000358593

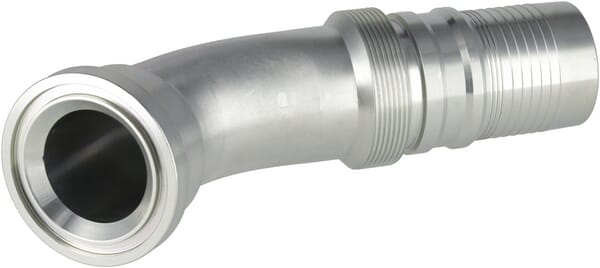

Alfagomma Swage coupling 4SH-DN50 with flange diameter 71,4mm 45° SFLH503245G2
£165.01 excl.
£198.01 incl.
In stock
Expected to ship on Friday 18 September
BPA000336442
Alfagomma Insert DN08-1/2 UNF PA88
£3.69 excl.
£4.43 incl.
In stock
Expected to ship on Friday 18 September
BPA000336362

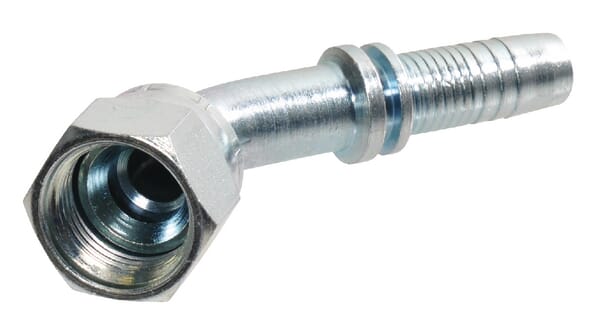

Alfagomma Insert DN20-1 5/16-UNF-45° PA202145
£17.08 excl.
£20.50 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
Free shipping
BPA000150600

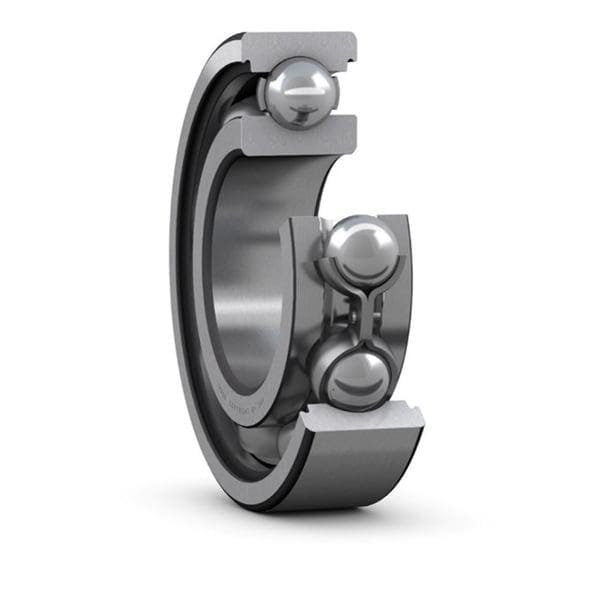

SKF Deep groove ball bearing 70x90x10mm 61814
