£48.91
excl. VAT
£58.69 incl. VAT
£58.69
incl. VAT
£48.91 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Approval | MSHA |
|---|---|
| Bend radius | 550 mm |
| Burst pressure | 400 BAR |
| DN | 50 mm |
| EN Standard | 857 2SC |
| Hose inside diameter | 50.8 mm |
| Hose outside diameter | 63.9 mm |
| Material inside | Synthetic rubber |
| Material outside | Synthetic rubber |
| Max working pressure | 100 BAR |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min working temperature | -40 °C |
| Number of plies | 2 |
| Product details | Hydraulic rubber compact hose with 2 braided steel wire layers of high tensile strength, Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions, Available by the metre, Available on 50-metre reel, up to 1/2", Available on 25-metre reel, up to 3/4", Always consult the latest press dimensions tables, see downloads at the bottom of each web page, For longer single-piece lengths, please contact our sales department |
| Pros | High operating pressure, Small bending radius, Extremely wear-resistant outer coating (15x vs standard), Outer coating resistant to ozone and oil |
| Qty. Rounding | 0.01 |
| Reinforcement material | Steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Weight | 2.55 kg/m |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | MTR |
| Weight | 201 g |
| Dimensions | 1000 × 50 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000343762
Alfagomma Insert with flange DN40-diameter 60.3mm-30° PFL402430
£79.12 excl.
£94.94 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000338468

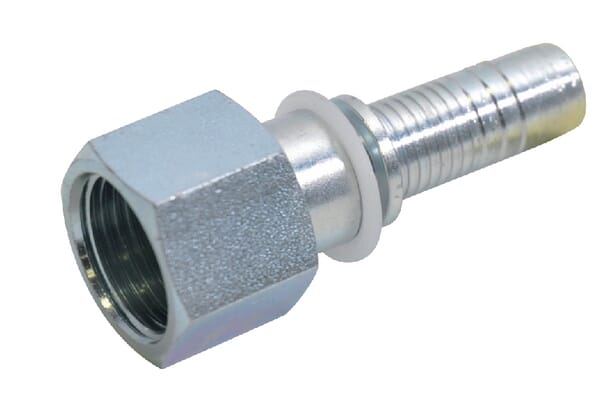

Alfagomma Insert DN13-3/4 BSP PF1312
£6.91 excl.
£8.29 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000358821
Alfagomma Insert NS-DN32-flange diameter 54 SFSNS3220G2
£26.65 excl.
£31.98 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000219569

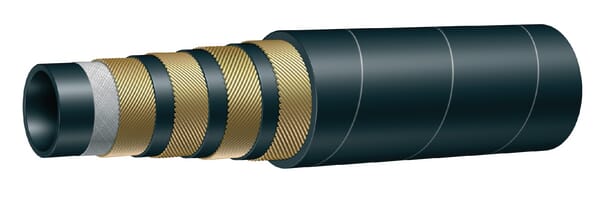

Alfagomma Hose 5K-DN20 350 Bar ABTE ABTEV5KDN204S
£13.31 excl.
£15.97 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000312405
Alfagomma T piece union F-M JIC 1 5/8" UNF LOU26
£74.95 excl.
£89.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000336418

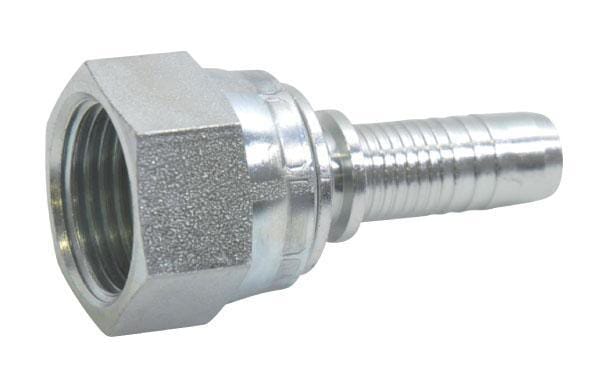

Alfagomma Insert DN06-1/2 UNF PA68
£1.75 excl.
£2.10 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000302532
Kramp Grease nipple M8 x 1.25, 90° (6) KRGN812590P06B
£3.51 excl.
£4.21 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000221321
Kverneland Decal kit 7XXFT/33XXFT/DMC73XXT A151600830
£85.28 excl.
£102.34 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000207519
Kverneland Tarpaulin Rear 324F A132223500
£308.46 excl.
£370.15 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000329878
Kramp O-ring 46.99x5.33 90 shore 10x OR469953390P010
£9.90 excl.
£11.88 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000212623

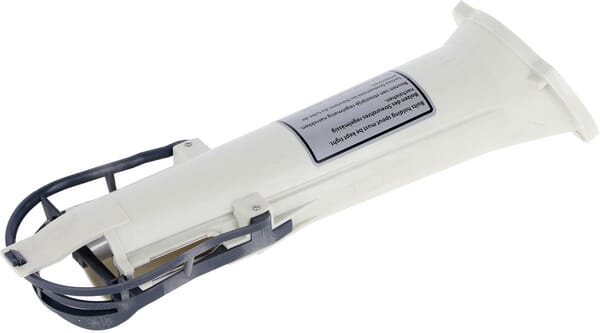

Kverneland Spreading tube nylon L=370 A138163230
£67.33 excl.
£80.80 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000279267

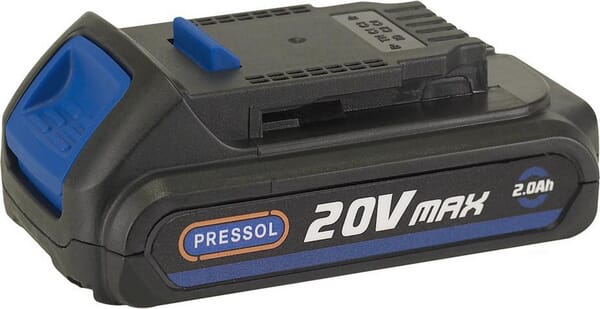

Pressol Battery, Li-Ion 20V 2Ah for battery-grease gun FP18051100
£188.74 excl.
£226.49 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250893

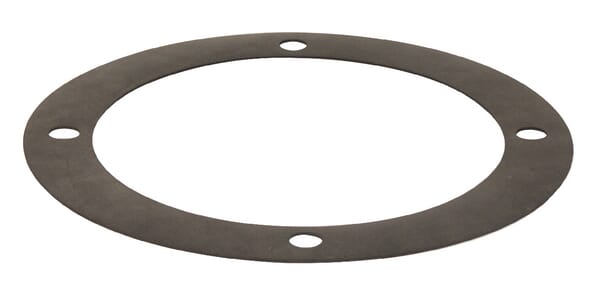

RaJa-Lovejoy Gasket bell housing D 450 NBR D450NBR
