£16.73
excl. VAT
£20.08 incl. VAT
£20.08
incl. VAT
£16.73 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Bend radius | 75 mm |
|---|---|
| Burst pressure | 560 BAR |
| EN Standard | 855 R7 |
| Hose inside diameter | 13 mm |
| Hose outside diameter | 20.3 mm |
| Material inside | Polyester elastomer |
| Material outside | Polyurethane |
| Max working pressure | 140 BAR |
| Max working temperature | 100 °C |
| Max. working temperature | 212 °F |
| Medium | Hydraulic oil |
| Min working temperature | -40 °C |
| Min. working temperature | -40 °F |
| Norm | SAE 100 R7 |
| Original number equivalent | 1000301 |
| Product details | Thermoplastic hydraulic hose with 1 layer of high-strength synthetic fibre mesh, Double hose made from two separate, firmly connected hoses, Light, thin and flexible hose for relatively high operating pressure, Precisely co-ordinated pressure and return flow, Medium pressure hydraulic systems, Mineral oil-based and glycol-based fluids, Vegetable and mineral lubricants, Crude oils, coolant, compressed air, Temperature for mineral oil based liquids: -40°C to +100°C, Temperature for synthetic hydraulic fluids and water-based liquids: -40°C to +57°C, Light, thin hose for relatively high operating pressure, Very low bending radius, Oil-resistant, smooth outer coating, Available lengths: per metre |
| Qty. Rounding | 0.01 |
| Reinforcement material | Syntal |
| Reinforcement type | Braid |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Weight | 0.44 kg/m |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | MTR |
| Weight | 600 g |
| Dimensions | 760 × 760 × 20 mm |
| Dangerous goods | No |
You might also like

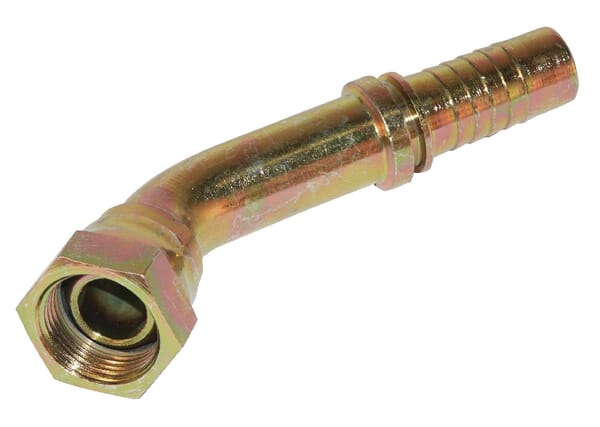

BPA000338509
Alfagomma Insert DN20-3/4 BSP-45° PF201245
£7.65 excl.
£9.18 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000349173
Alfagomma Male stud 1-7/8 JIC x 1 1/2 BSP RIB3024WD
£36.88 excl.
£44.26 incl.
Backorder available
Usually ships within 3–8 weeks

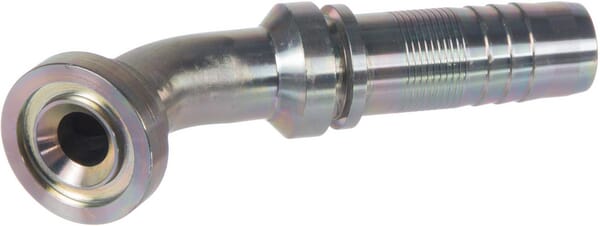

BPA000358622
Alfagomma Insert NS-DN40-flange diameter 71,4 45 SFLNS403245G2
£98.98 excl.
£118.78 incl.
In stock
Expected to ship on Tuesday 22 September

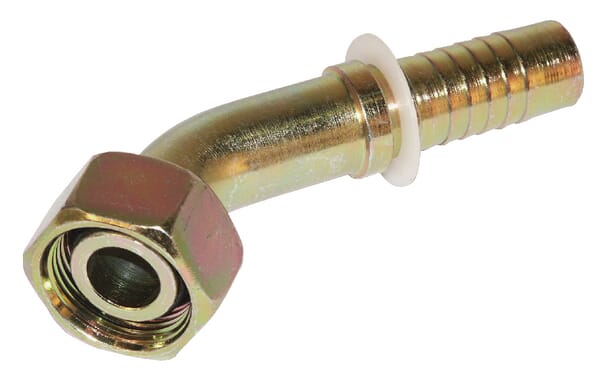

BPA000344078
Alfagomma Insert DN40-M52x2.0-42L-45° PGLO405245
£61.43 excl.
£73.72 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000344225
Alfagomma Insert DN32-M52x2,0-38S-90° PGSO325290
£58.46 excl.
£70.15 incl.
In stock
Expected to ship on Tuesday 22 September

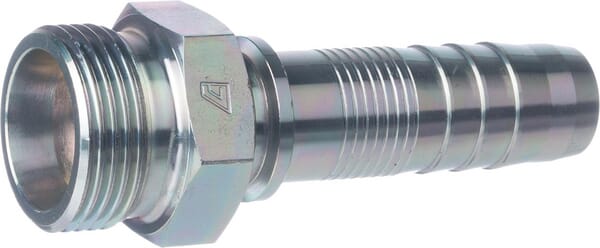

BPA000241195
Alfagomma Insert M NS-DN20-25S-M36x2 CESNS2036G2
£10.46 excl.
£12.55 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000328922
Kramp O-ring 15.55x2.62mm 70 shore 10x OR1555262P010
£1.56 excl.
£1.87 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000092507
Arag Seal 116.84x5.33mm 70 shore black 350420020
£5.09 excl.
£6.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000220962
Kverneland Cartridge blue 50 mesh (500l) A148214378
£65.79 excl.
£78.95 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000143473
MEKRA-LANG Wide-angle mirror 266, radius 300, left/right, manually adjustable, heating 24V, diameter 14-20mm 562660004099
£82.70 excl.
£99.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000216608
Kverneland / Accord Hose PUR 35mm A139597778
£18.51 excl.
£22.21 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000148961
Non Original Gear sprocket, without a wedge, Z-16 61003023030150
£4.79 excl.
£5.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236854
GLT/LHG Bearing bush 6x8x8mm BB06081208PTFEBR
£0.69 excl.
£0.83 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000331137
Kramp O-ring 85.32x3.53mm 70 shore 10x OR8532353P010
£4.09 excl.
£4.91 incl.
In stock
Expected to ship on Tuesday 22 September

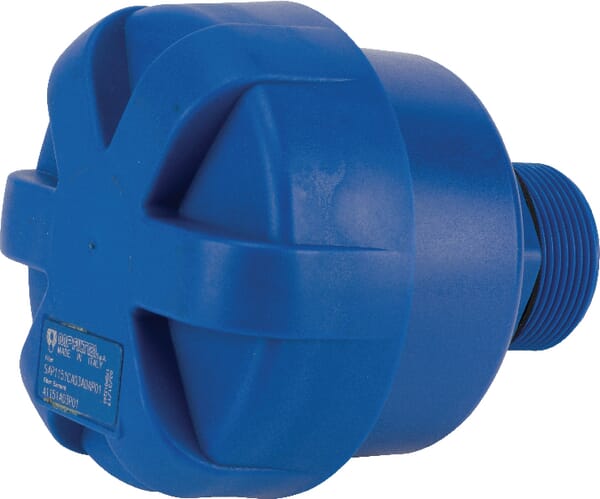

BPA000354377
