£27.25
excl. VAT
£32.70 incl. VAT
£32.70
incl. VAT
£27.25 excl. VAT
In stock
Expected to ship on Tuesday 22 September

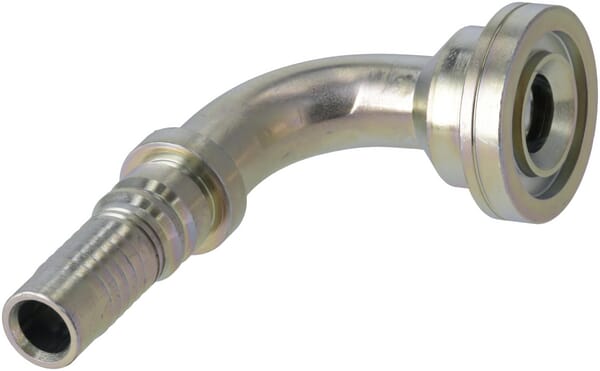

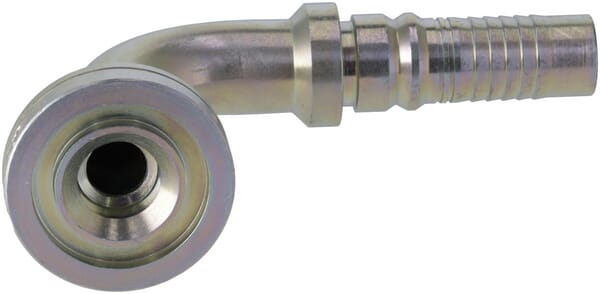

Product details
| Benefits | Press-fitting with heavy-duty anti-slip protection |
|---|---|
| CConnection centre to insert distance | 55 mm |
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 3/4 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 5/8 Inch |
| DFlange outside diameter | 41.3 mm |
| Flange standard pressure series | 6000 |
| Flange thickness | 8.76 mm |
| HConnection 2, centre to end distance | 49.9 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| LConnection no 1 center to end distance | 47.8 mm |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
AFH612
Oleo Tecnica SAE split flange 6000-3/4 AFH612
£6.88 excl.
£8.26 incl.
OR249935390P010
Kramp O-ring 24.99x3.53mm (SAE 3/4") 90 shore 10x OR249935390P010
£1.90 excl.
£2.28 incl.
OVP2308
Hallite Seal ring SAE 3/4 OVP2308
£1.98 excl.
£2.38 incl.
OVP1704
Hallite Seal ring SAE 1/2 OVP1704
£2.02 excl.
£2.42 incl.
SFAH4616
Alfagomma Ferrule DN16 Interlock SFAH4616
£8.15 excl.
£9.78 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 279 g |
| Dimensions | 115 × 64 × 44 mm |
| Dangerous goods | No |
You might also like

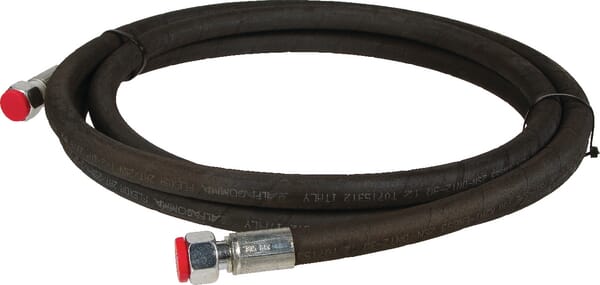

BPA000252956
Alfagomma Hydraulic hose DN12 4500mm DKLO134500
£56.04 excl.
£67.25 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000241197

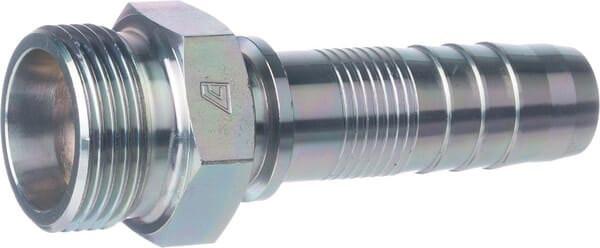

Alfagomma Insert M NS-DN25-30S-M42x2 CESNS2542G2
£16.95 excl.
£20.34 incl.
In stock
Expected to ship on Tuesday 22 September

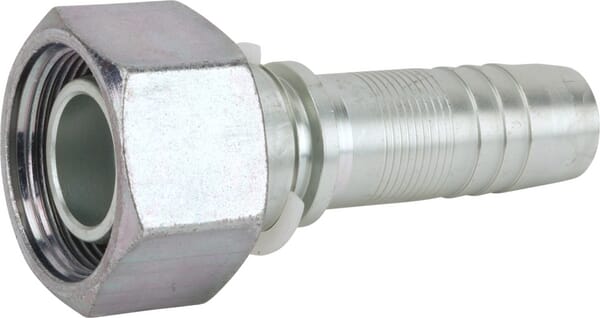

BPA000253116
Alfagomma Insert F NS-DN32-38S-M52x2 DKOSNS3252G2
£29.70 excl.
£35.64 incl.
In stock
Expected to ship on Tuesday 22 September

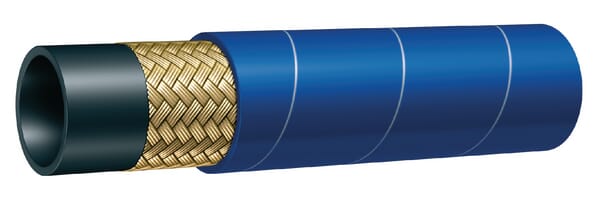

BPA000362030
Alfagomma High-pressure hose, 1SN, blue, 1/4" SL301006
£6.06 excl.
£7.27 incl.
In stock
Expected to ship on Tuesday 22 September

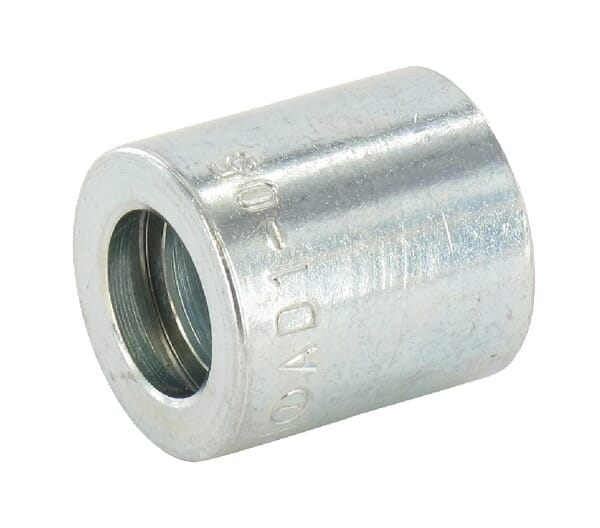

BPA000342763
Alfagomma Ferrule NST+HSK-DN25 PSSFAD125
£5.76 excl.
£6.91 incl.
Backorder available
Usually ships within 3–8 weeks

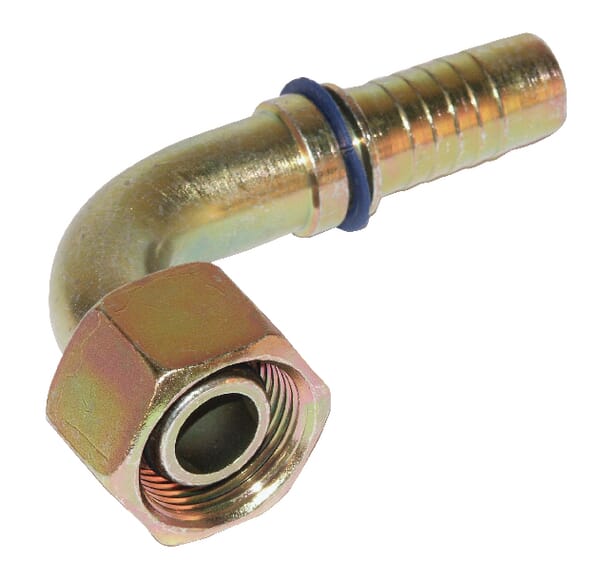

BPA000344225
Alfagomma Insert DN32-M52x2,0-38S-90° PGSO325290
£58.46 excl.
£70.15 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed

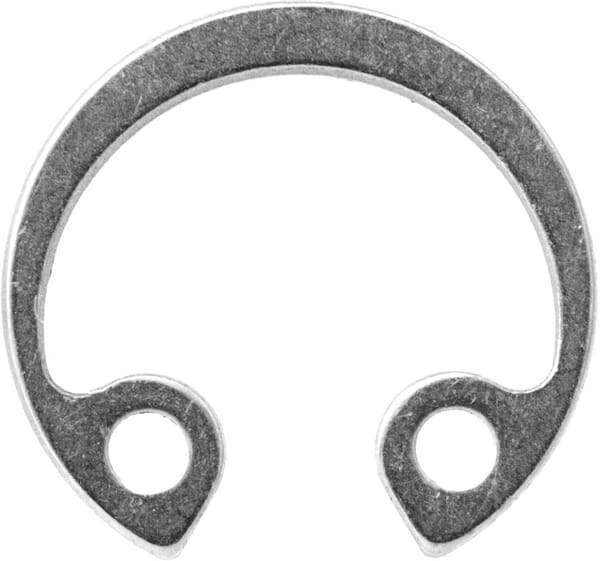

BPA000119561
Kramp Circlip internal 8x0.8mm DIN472 Stainless steel 47208RVS
£0.23 excl.
£0.28 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000334100
Kramp O-ring 10.77x2.62 75 shore Viton 10x OR1077262VP010
£10.08 excl.
£12.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000152403
Kramp Coach bolt DIN603 M8x60 stainless steel 603860RVSA4
£0.80 excl.
£0.97 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000278382
Kramp Protection tube 25mm 25m flexible corrugated, closed, black FTBLC25025
£2.41 excl.
£2.89 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

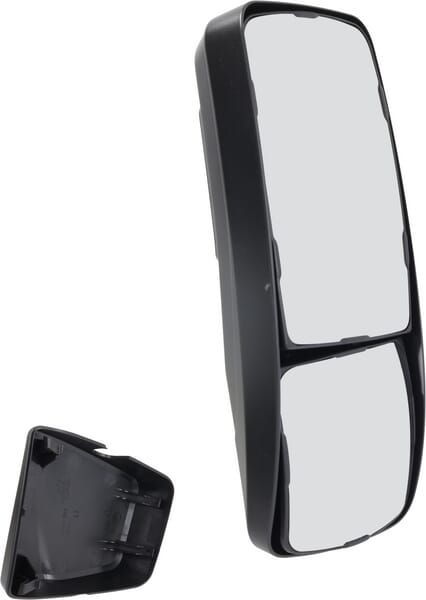

BPA000131494
MEKRA-LANG Wide-angle mirror 1036, radius 1200/300, left, heating 12V, vertical diameter 22mm 511036023099
£156.05 excl.
£187.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000278110
SHW Loader tine, straight, double T section 36x810mm, pointed tip with M22x1.5mm nut, red, FT1060
£34.65 excl.
£41.58 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000201964
Kramp Hexagon head bolt DIN933 M6x12 steel 8.8 933612B
£0.05 excl.
£0.06 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340515
Casappa Drive shaft pump 20cc DII/DIIB PLP92020IIIFSAS
£134.60 excl.
£161.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000349260
Burnett & Hillman Male stud 3/4 JIC x1-1/16 UNF RIU1217
£6.61 excl.
£7.93 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000393347

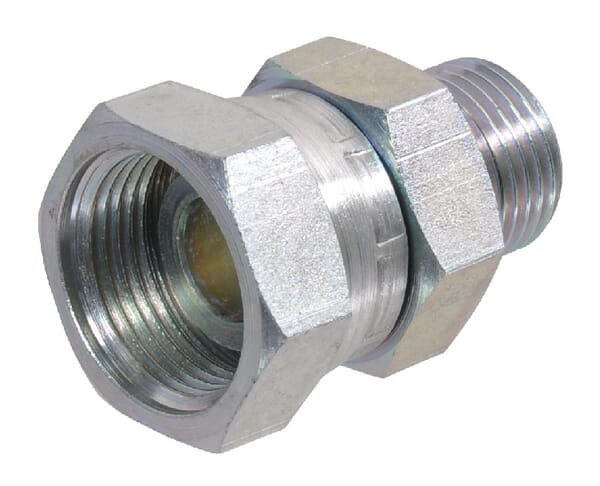

Burnett & Hillman Adaptor M/F 1 x 1/2 BSP VNBW1608
