£29.19
excl. VAT
£35.03 incl. VAT
£35.03
incl. VAT
£29.19 excl. VAT
In stock
Expected to ship on Friday 18 September
About this product

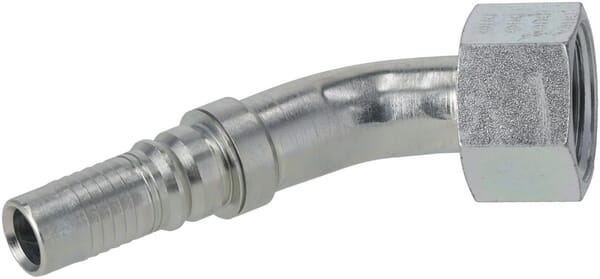

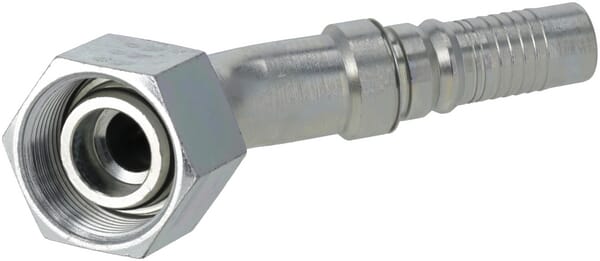

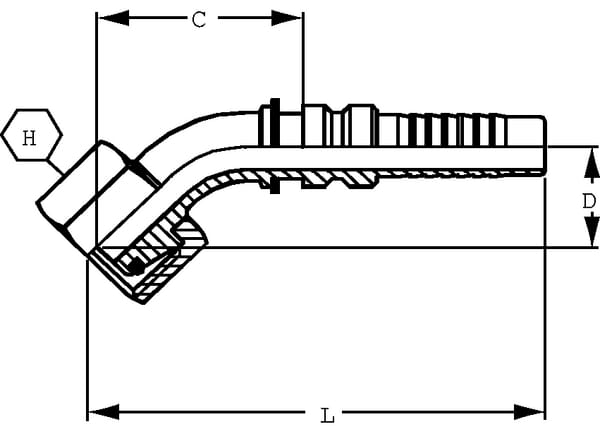

A 45° swage coupling from the Alfagomma 4SH Evolution G2 series, supplied as a single piece. The coupling joins a 20 mm hose end to an M36×2.0 metric swivel nut (female connection) with a 24° cone angle. The hose end measures 20 mm in diameter with a centre-to-end distance of 47 mm. The coupling is manufactured from steel and incorporates an interlock anchoring system with a sealing cone and O-ring for pressure retention. It includes the insert and O-ring. Designed for heavy-duty industrial applications including hydrostatic drives and high operating/peak pressure systems. The complete assembly weighs 400 g and measures 145 mm length by 40 mm width and height. Press-fitting employs heavy-duty anti-slip protection.
Product details
| Cone angle | 24 ° |
|---|---|
| Connection 1, type | Hose end |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type code | DKOS |
| Connection 2, type - male/female | Female |
| Connection no 1 center to end distance | 47 mm |
| Connection no 1 diameter | 20 mm |
| Includes | Insert, O-ring |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, Cone, sealing cone with O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Cutting ring adaptors S series, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | 25S |
| Shape | Elbow 45° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 400 g |
| Dimensions | 145 × 40 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000344119

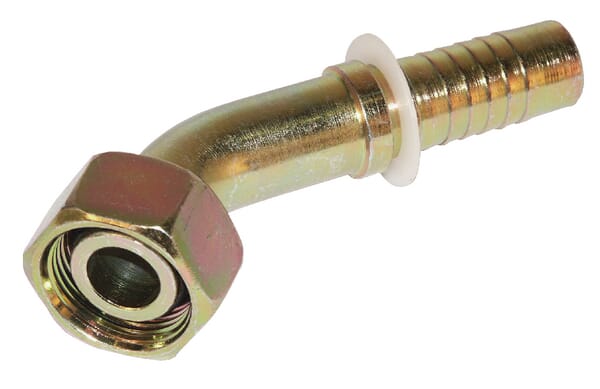

Alfagomma Insert DN08-M14x1.5-8L-45° PGLO81445
£9.37 excl.
£11.24 incl.
In stock
Expected to ship on Monday 21 September
BPA000344256
Alfagomma Insert DN08-M20x1.5-12S PGSO820
£2.45 excl.
£2.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000083710

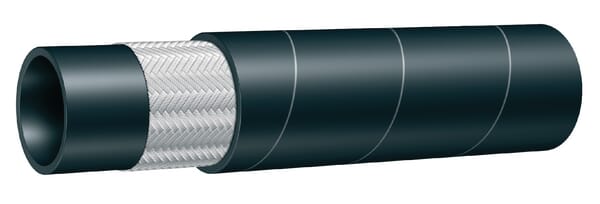

Alfagomma Hydraulic hose 2TE-DN16 2TEDN16
£7.52 excl.
£9.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000289938

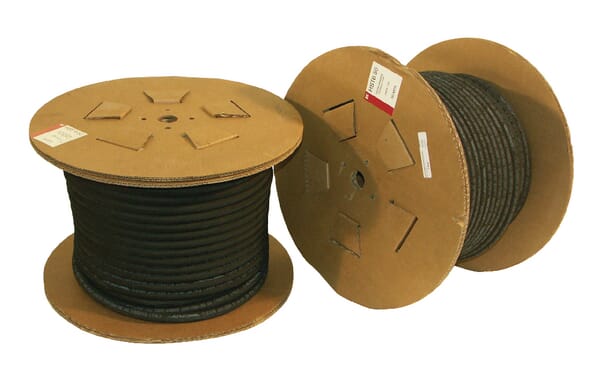

Alfagomma Hose HSTHF8 on reel HSTHF8P025M
£5.36 excl.
£6.43 incl.
In stock
Expected to ship on Friday 18 September
BPA000375583

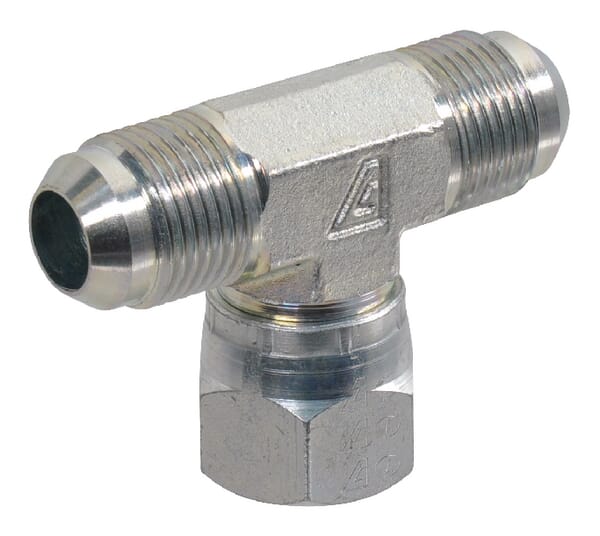

Alfagomma T piece M/M/F 7/16 JIC TOU07
£11.43 excl.
£13.72 incl.
In stock
Expected to ship on Monday 21 September
BPA000342853

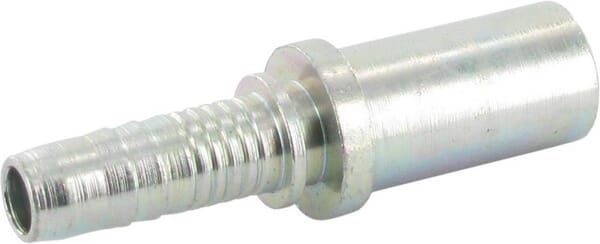

Alfagomma Insert DN10 (3/8") - diameter 15mm standpipe PT1015
