£24.59
excl. VAT
£29.51 incl. VAT
£29.51
incl. VAT
£24.59 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Benefits | Press-fitting with heavy-duty anti-slip protection |
|---|---|
| CConnection centre to insert distance | 63.2 mm |
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 1/2 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 3/4 Inch |
| DFlange outside diameter | 31.8 mm |
| Flange standard pressure series | 6000 |
| Flange thickness | 7.75 mm |
| HConnection 2, centre to end distance | 61 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| LConnection no 1 center to end distance | 48.8 mm |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 232 g |
| Dimensions | 110 × 65 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000289950

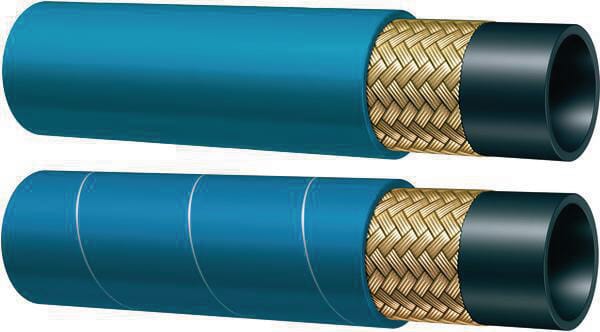

Alfagomma Hydraulic hose High Temp DN13 HT1SN13
£17.81 excl.
£21.37 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000298945

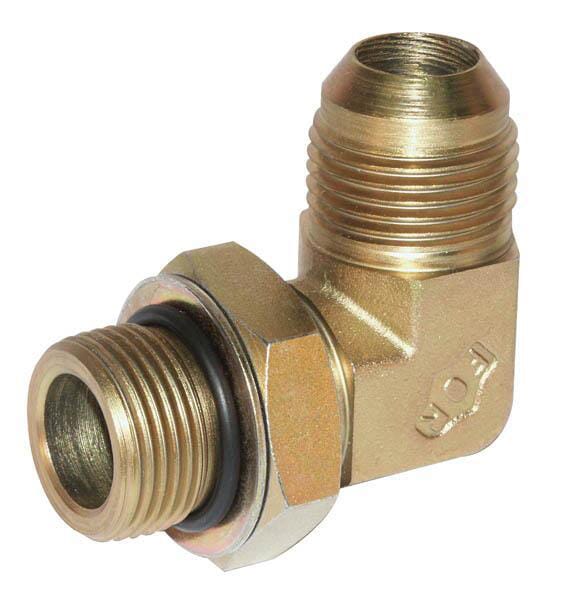

Alfagomma Elbow coupling 7/8JIC x M18 KIM1418
£16.46 excl.
£19.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000083712

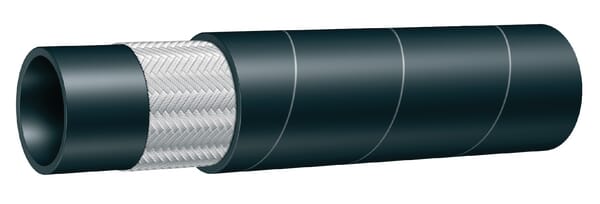

Alfagomma Hydraulic hose 2TE-DN25 2TEDN25
£16.57 excl.
£19.88 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000400753

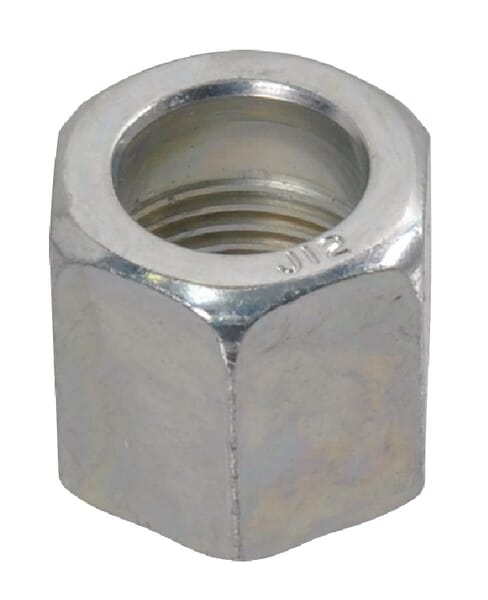

Alfagomma Union nut 1-5/16 UNF W21TB
£8.29 excl.
£9.95 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000374511

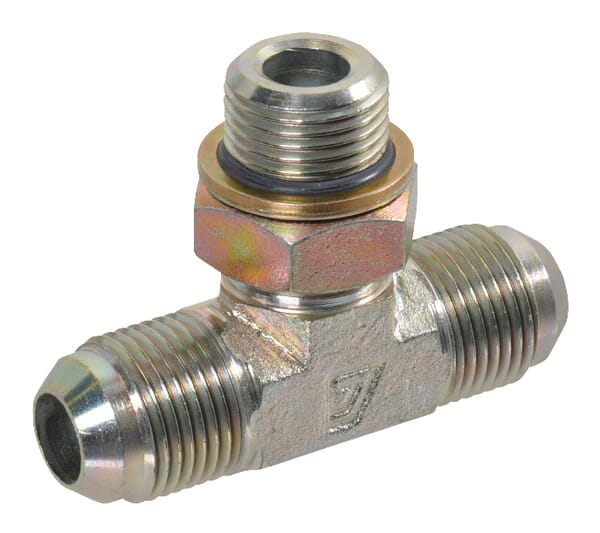

Alfagomma T piece 1-1/16 JIC x 3/4 BSP TIB1712
£23.71 excl.
£28.45 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000358801

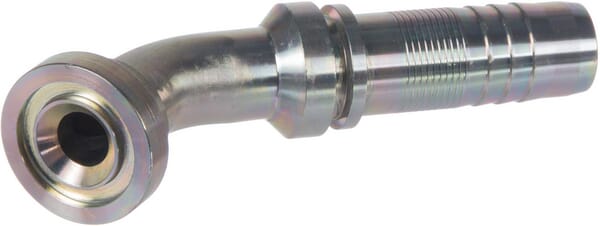

Alfagomma Insert NS-DN25-flange diameter 41,3 45 SFSNS251245G2
