£34.46
excl. VAT
£41.35 incl. VAT
£41.35
incl. VAT
£34.46 excl. VAT
In stock
Expected to ship on Friday 18 September

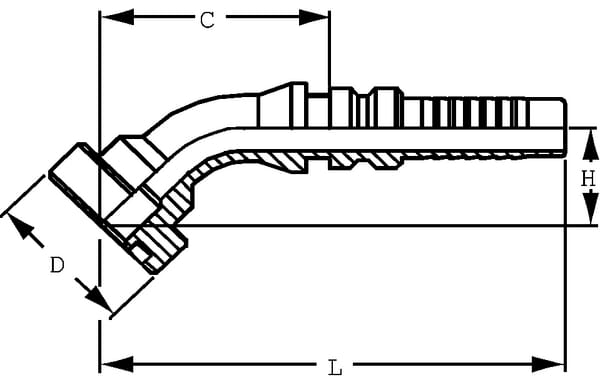

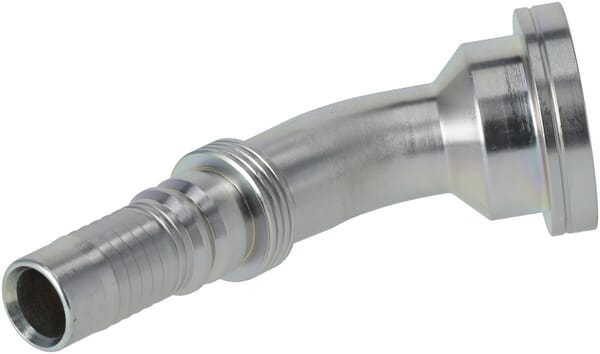

Product details
| Connection 1, type | Hose end |
|---|---|
| Connection 1, type code | SFS |
| Connection 2, diameter | 1 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 3/4 Inch |
| DConnection no 1 diameter | 20 mm |
| DFlange outside diameter | 47.6 mm |
| Flange standard pressure series | 6000 |
| Flange thickness | 9.53 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| LConnection no 1 center to end distance | 76.8 mm |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 45° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 406 g |
| Dimensions | 150 × 60 × 50 mm |
| Dangerous goods | No |
You might also like

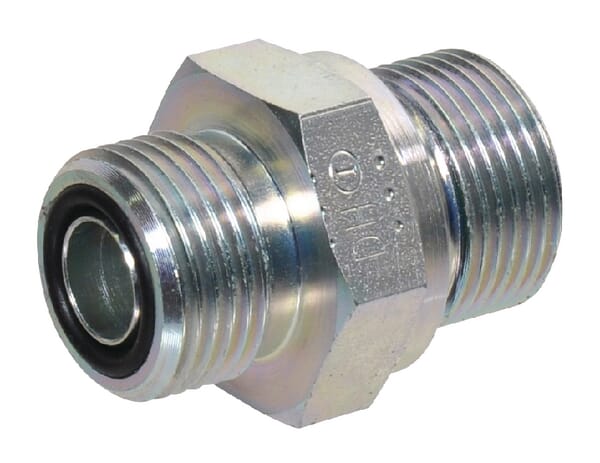

BPA000388536
Alfagomma Adaptor 1-7/16 ORFS x M33 VNOM2333
£17.19 excl.
£20.63 incl.
In stock
Expected to ship on Friday 18 September

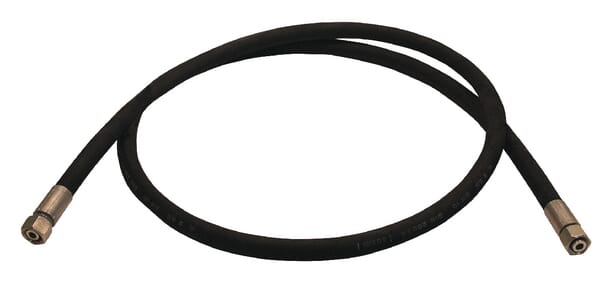

BPA000252870
Alfagomma Hydraulic hose DN10 1200mm DKLO101200
£27.91 excl.
£33.49 incl.
In stock
Expected to ship on Friday 18 September

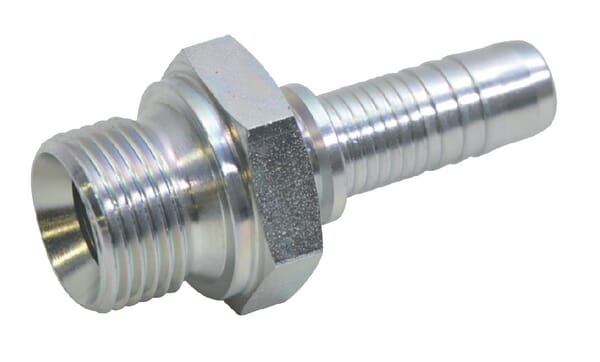

BPA000340947
Alfagomma Insert DN10-1/2 BSP Box 25 pcs PN108P025
£43.52 excl.
£52.22 incl.
In stock
Expected to ship on Friday 18 September
BPA000336264
Alfagomma Insert DN10-3/4 UNF PA1012
£2.42 excl.
£2.90 incl.
In stock
Expected to ship on Friday 18 September

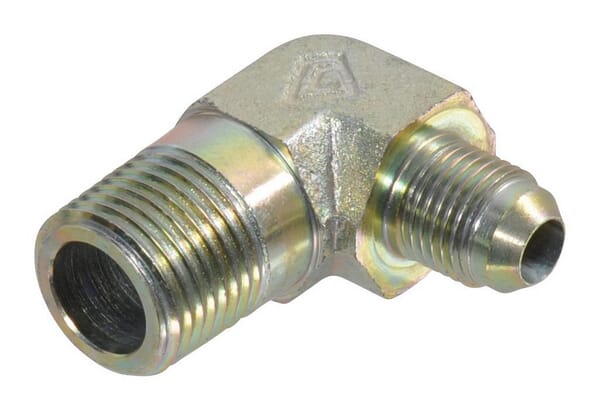

BPA000299007
Alfagomma Elbow coupling 7/8JIC x 1/2NPT KIN1408
£9.90 excl.
£11.88 incl.
In stock
Expected to ship on Monday 21 September

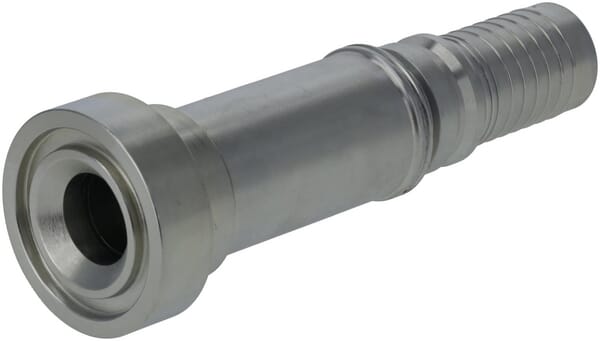

BPA000358695
