£31.89
excl. VAT
£38.27 incl. VAT
£38.27
incl. VAT
£31.89 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

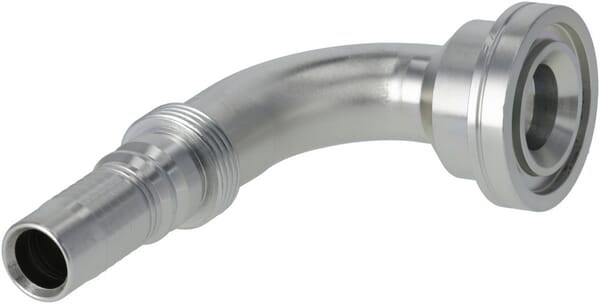

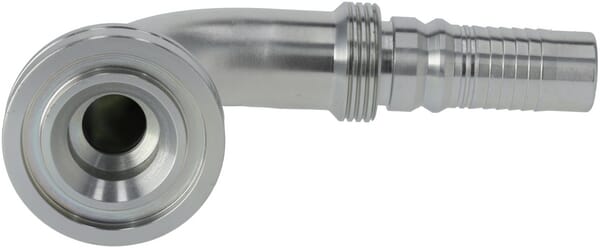

| Benefits | Press-fitting with heavy-duty anti-slip protection |
|---|---|
| CConnection centre to insert distance | 61.2 mm |
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 1 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 3/4 Inch |
| DFlange outside diameter | 47.6 mm |
| Flange standard pressure series | 6 |
| Flange thickness | 9.53 mm |
| HConnection 2, centre to end distance | 66 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 462 g |
| Dimensions | 140 × 85 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000358481
Alfagomma Ferrule DN50 Interlock SFAH450
£45.01 excl.
£54.01 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000253157

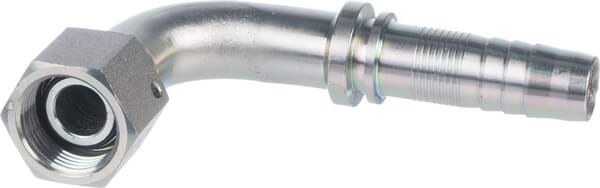

Alfagomma Insert F NS-DN32-1.1/4" BSP 90 DKRNS322090G2
£39.29 excl.
£47.15 incl.
In stock
Expected to ship on Friday 18 September
BPA000343721
Alfagomma Insert with flange DN16-diameter 38.1mm PFL1612
£16.07 excl.
£19.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000336545

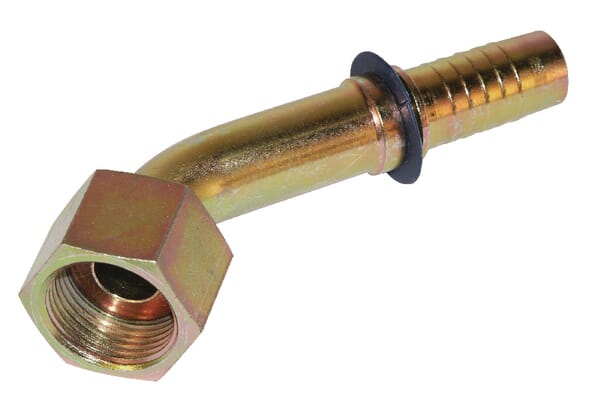

Alfagomma Insert DN16-1" ORFS-45° PAV161645
£9.09 excl.
£10.91 incl.
In stock
Expected to ship on Friday 18 September
BPA000226169

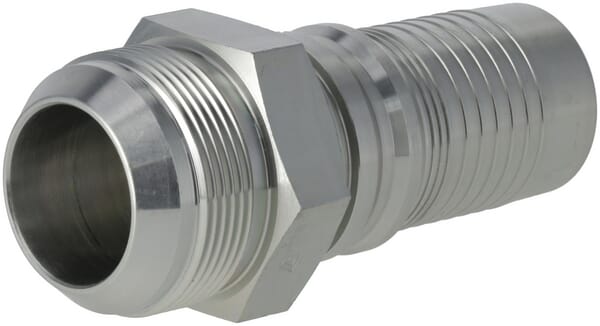

Alfagomma Swage coupling 4SH DN40-1.7/8" UNF AGJH4030G2
£42.74 excl.
£51.29 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000253044

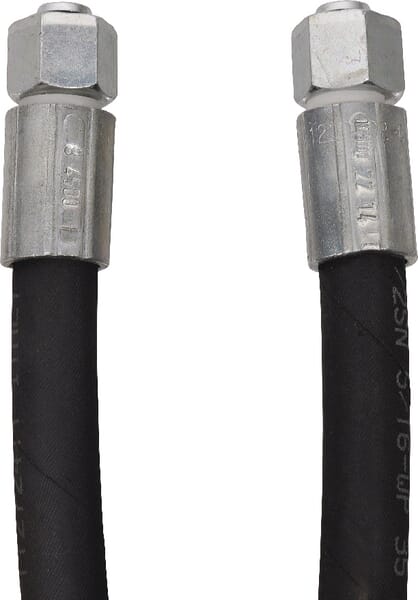

Alfagomma Hydraulic hose DN08 4500mm DKLO84500
