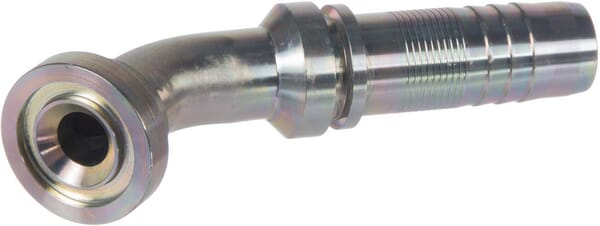

Product details
| Benefits | Press-fitting with heavy-duty anti-slip protection |
|---|---|
| CConnection centre to insert distance | 70.4 mm |
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 1 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 1 Inch |
| DFlange outside diameter | 47.6 mm |
| Flange standard pressure series | 6 |
| Flange thickness | 9.53 mm |
| HConnection 2, centre to end distance | 175 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 867 g |
| Dimensions | 200 × 155 × 55 mm |
| Dangerous goods | No |
You might also like

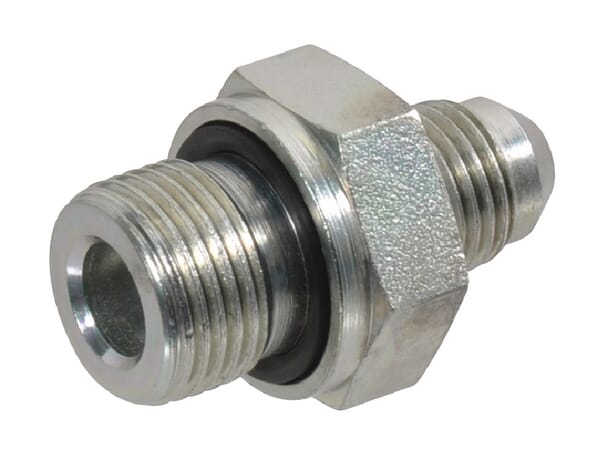

BPA000349124
Alfagomma Male stud 1/2 JIC x 1/4 BSP RIB0804WD
£2.78 excl.
£3.34 incl.
In stock
Expected to ship on Friday 18 September

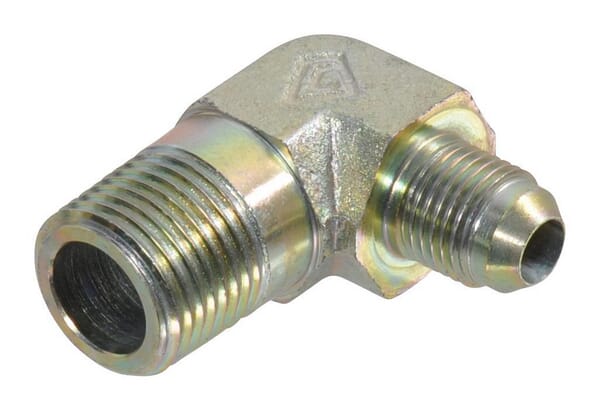

BPA000299009
Alfagomma Elbow coupling 1-1/16JICx3/4NPT KIN1712
£14.20 excl.
£17.04 incl.
Backorder available
Usually ships within 3–8 weeks

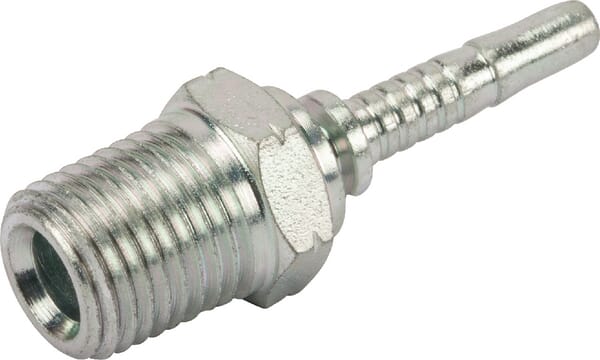

BPA000338389
Alfagomma Insert DN05-1/4 NPT PE54
£5.34 excl.
£6.41 incl.
In stock
Expected to ship on Monday 21 September

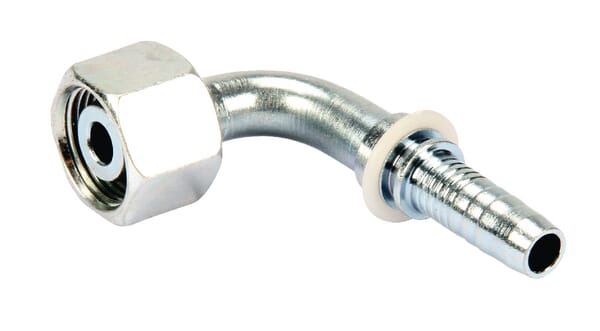

BPA000344249
Alfagomma Insert DN08-M16x1.5-8S-90° PGSO81690
£16.79 excl.
£20.15 incl.
In stock
Expected to ship on Monday 21 September
BPA000241598
Alfagomma Bend, female thread, BSPT 3/8" CGM38GF38
£12.76 excl.
£15.31 incl.
In stock
Expected to ship on Friday 18 September

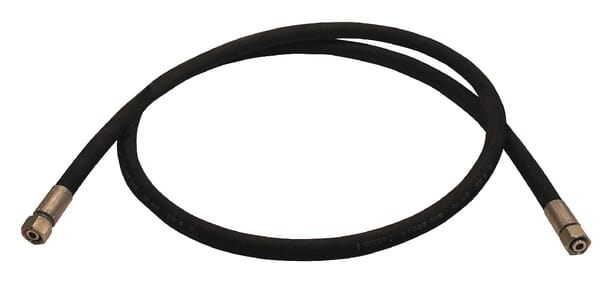

BPA000252874
