£35.78
excl. VAT
£42.94 incl. VAT
£42.94
incl. VAT
£35.78 excl. VAT
In stock
Expected to ship on Friday 18 September

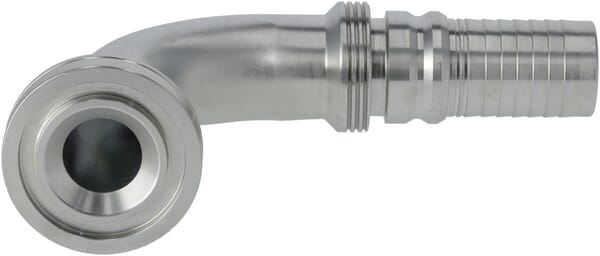

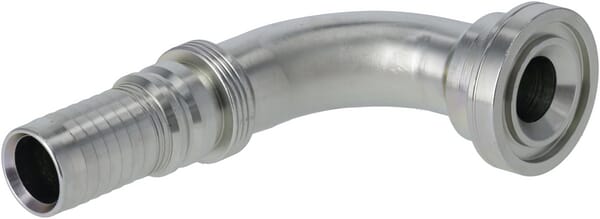

Product details
| Benefits | Press-fitting with heavy-duty anti-slip protection |
|---|---|
| CConnection centre to insert distance | 70.4 mm |
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 1 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 1 Inch |
| DFlange outside diameter | 47.6 mm |
| Flange standard pressure series | 6 |
| Flange thickness | 9.53 mm |
| HConnection 2, centre to end distance | 74 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 553 g |
| Dimensions | 150 × 95 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000336333
Alfagomma Insert DN16-7/8 UNF PA1614
£3.70 excl.
£4.44 incl.
In stock
Expected to ship on Friday 18 September
BPA000358622
Alfagomma Insert NS-DN40-flange diameter 71,4 45 SFLNS403245G2
£98.98 excl.
£118.78 incl.
In stock
Expected to ship on Friday 18 September
BPA000358744
Alfagomma Swage coupling 4SH-DN20 with flange diameter 41,3mm 45° SFSH201245G2
£22.10 excl.
£26.52 incl.
In stock
Expected to ship on Friday 18 September
BPA000343785

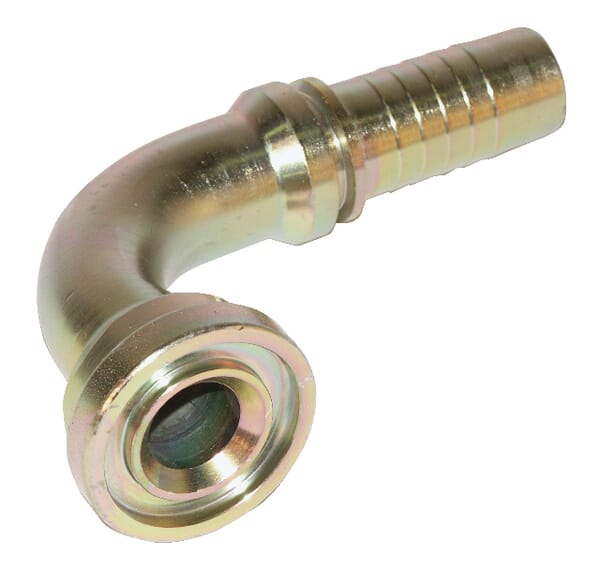

Alfagomma Insert DN16-flange diameter 34mm 90° suitable for CAT PFLK161090
£24.83 excl.
£29.80 incl.
In stock
Expected to ship on Friday 18 September
BPA000382124

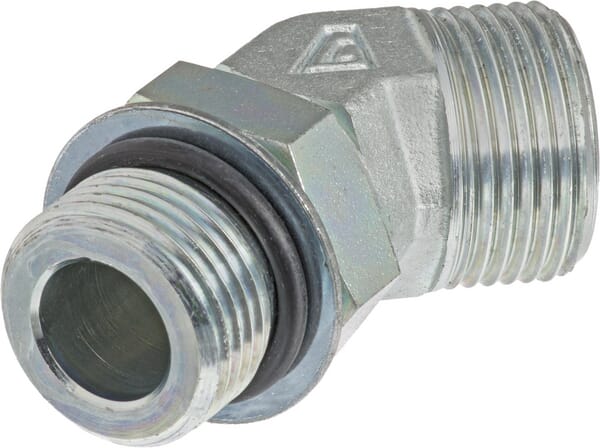

Alfagomma Adaptor 45 1.3/16ORFSx1.1/16 VIOU1917
£28.25 excl.
£33.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000344113

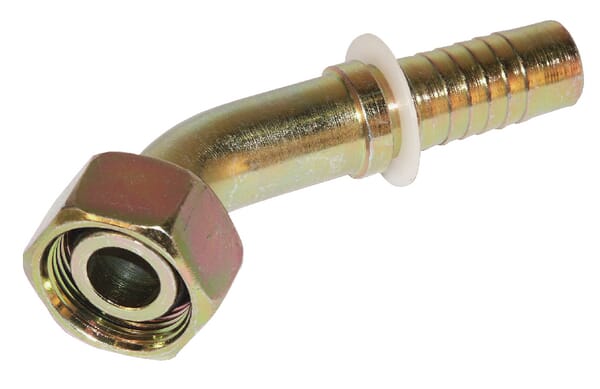

Alfagomma Insert DN06-M18x1.5-12L-45° PGLO61845
£7.44 excl.
£8.93 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000196413
Hella Fuse removal tweezers 8PE713576011
£23.66 excl.
£28.39 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000096207
Walterscheid Yoke for clutch F5/2L, W2500/P500 363136
£461.64 excl.
£553.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000404984
GLT/LHG Bearing bush 10x12x20mm ZB101220PTFEBR
£1.20 excl.
£1.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000309132
gopart Rear light LH triangular, 12/24V, 220x175x52mm, Bayonet 5-pin, LA45030L
£16.63 excl.
£19.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000140405

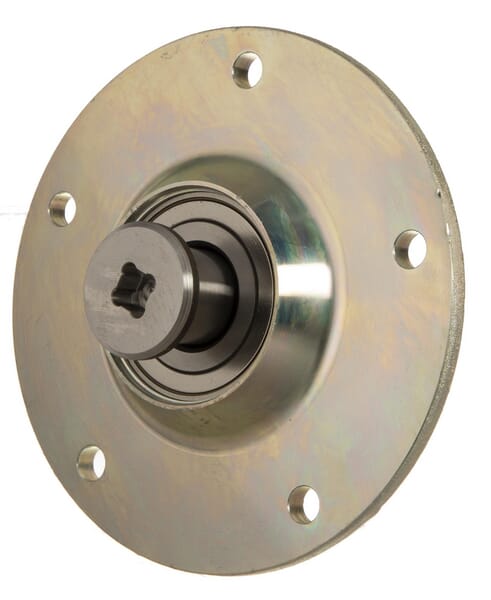

Lemken Bearing D32x185x155 M30x1.5 LH 55510269
£184.01 excl.
£220.82 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000169482
SKF Deep groove ball bearing 75x115x20mm 75006015ZZC3
£70.04 excl.
£84.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000203342
Kramp Hexagon head bolt DIN933 M14x45 steel 10.9 9331445109B
£0.90 excl.
£1.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000372297

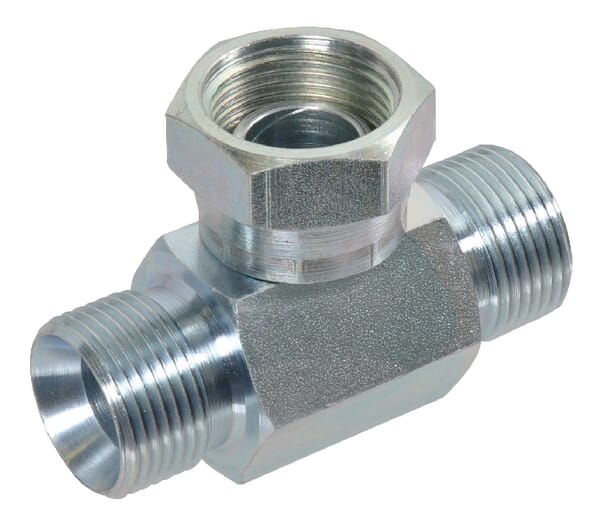

Burnett & Hillman T piece M/F/M 1 1/2 BSP TMFM24
