£38.85
excl. VAT
£46.62 incl. VAT
£46.62
incl. VAT
£38.85 excl. VAT
In stock
Expected to ship on Friday 18 September

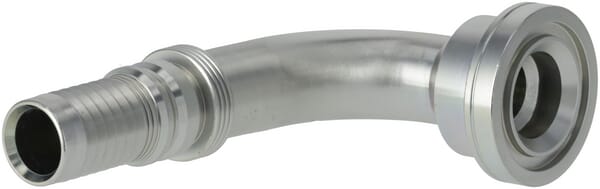

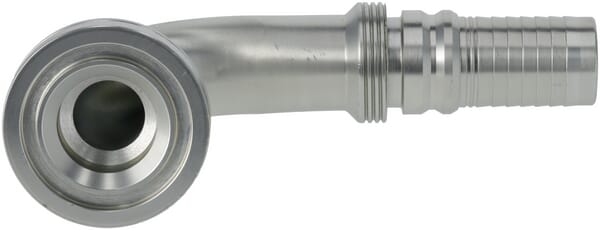

Product details
| Benefits | Press-fitting with heavy-duty anti-slip protection |
|---|---|
| CConnection centre to insert distance | 77.2 mm |
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 1-1/4 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 1 Inch |
| DFlange outside diameter | 54 mm |
| Flange standard pressure series | 6 |
| Flange thickness | 10.29 mm |
| HConnection 2, centre to end distance | 80 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 678 g |
| Dimensions | 155 × 100 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000341064

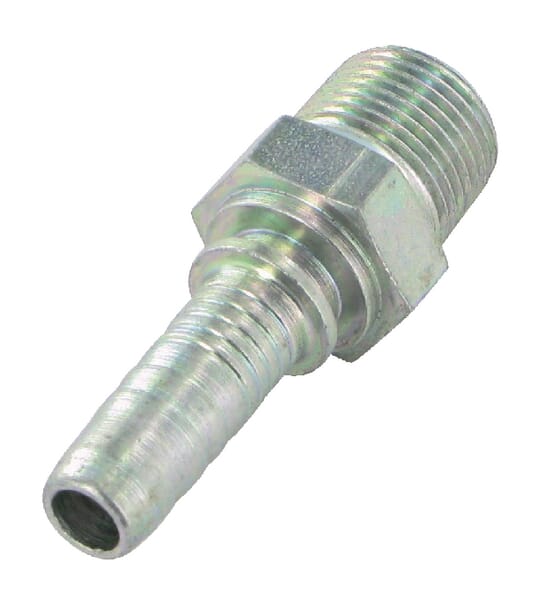

Alfagomma Insert DN06-1/8 BSPT PNT62
£1.91 excl.
£2.29 incl.
In stock
Expected to ship on Friday 18 September
BPA000343729

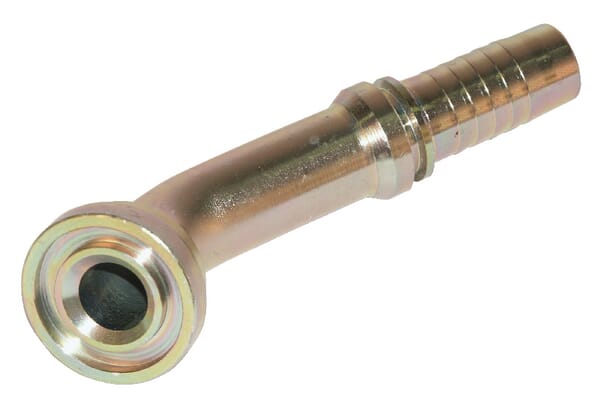

Alfagomma Insert with flange DN20-diameter 38.1mm-60° PFL201260
£31.15 excl.
£37.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000252953

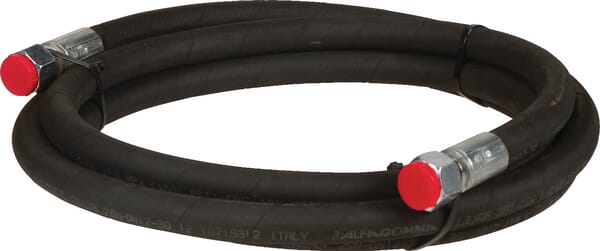

Alfagomma Hydraulic hose DN12 3500mm DKLO133500
£47.35 excl.
£56.82 incl.
In stock
Expected to ship on Friday 18 September
BPA000342941
Alfagomma Insert DN6 (1/4") - diameter 8 mm standpipe PT68
£1.14 excl.
£1.37 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247889

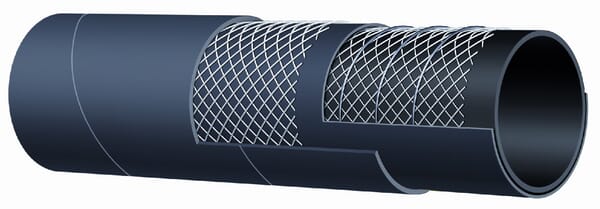

Alfagomma Suction/pressure hose 60mm CR460
£39.23 excl.
£47.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000316235

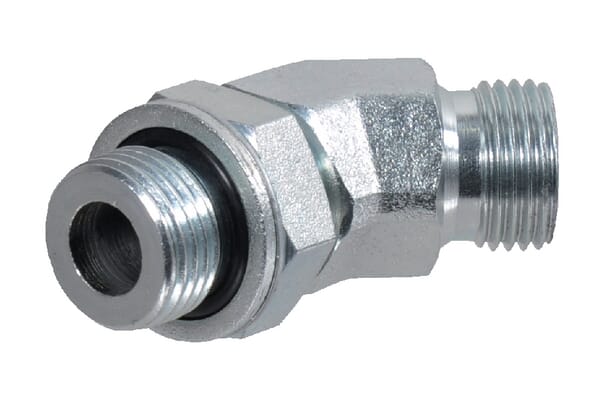

Alfagomma Adaptor 45 1/2 x 3/4 BSP MMI450812K
