£28.72
excl. VAT
£34.46 incl. VAT
£34.46
incl. VAT
£28.72 excl. VAT
In stock
Expected to ship on Tuesday 22 September

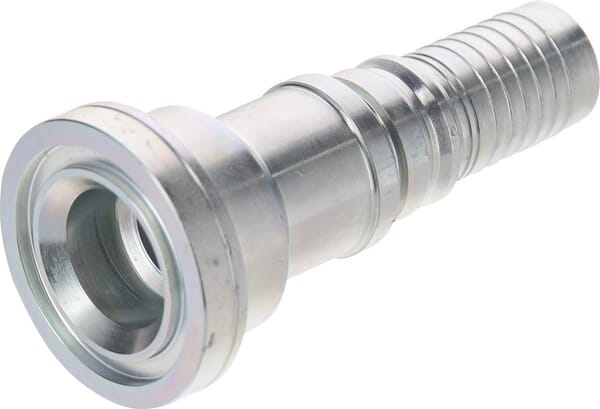

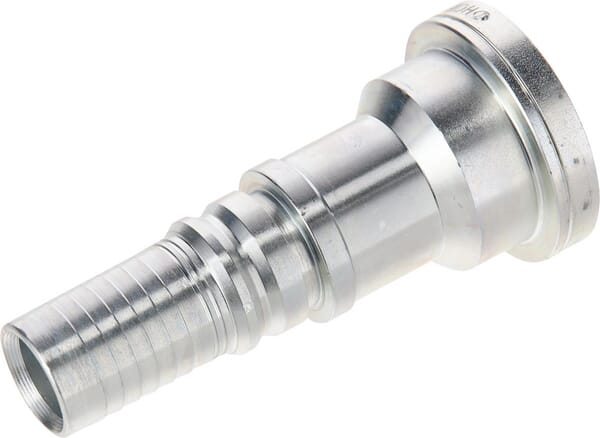

Product details
| Benefits | Press-fitting with heavy-duty anti-slip protection |
|---|---|
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 1-1/4 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 1 Inch |

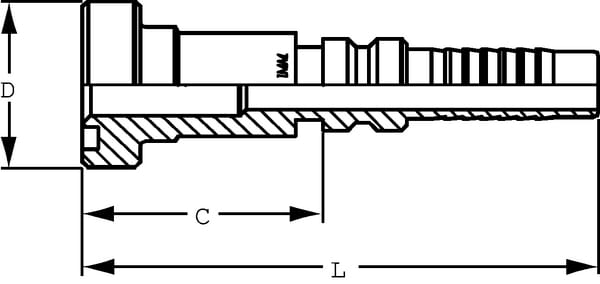

| DFlange outside diameter | 54 mm |
| Flange standard pressure series | 6000 |
| Flange thickness | 10.29 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| LConnection no 1 center to end distance | 61 mm |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Straight |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.

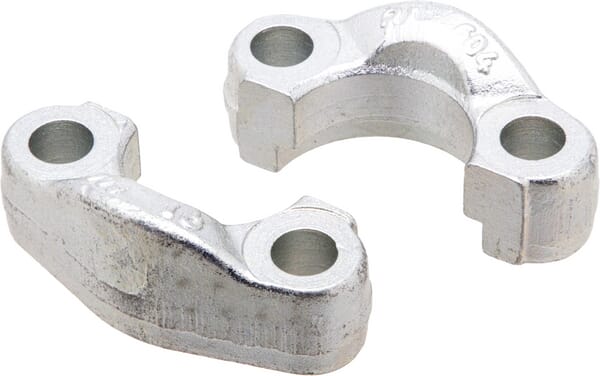

AFH620
Oleo Tecnica SAE split flange 6000-1 1/4 AFH620
£12.42 excl.
£14.90 incl.
OR376935390P010
Kramp O-ring 37.69x3.53mm 90 shore 10x OR376935390P010
£2.45 excl.
£2.94 incl.
OVP3605
Hallite Seal ring SAE 1-1/4 OVP3605
£2.57 excl.
£3.08 incl.
SFAH425
Alfagomma Ferrule DN25 Interlock SFAH425
£8.90 excl.
£10.68 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 524 g |
| Dimensions | 120 × 60 × 60 mm |
| Dangerous goods | No |
You might also like

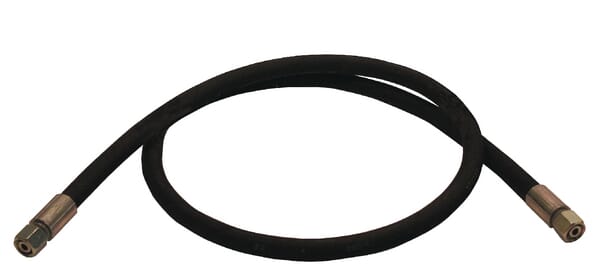

BPA000253027
Alfagomma Hydraulic hose DN08 1900mm DKLO81900
£31.92 excl.
£38.30 incl.
In stock
Expected to ship on Tuesday 22 September

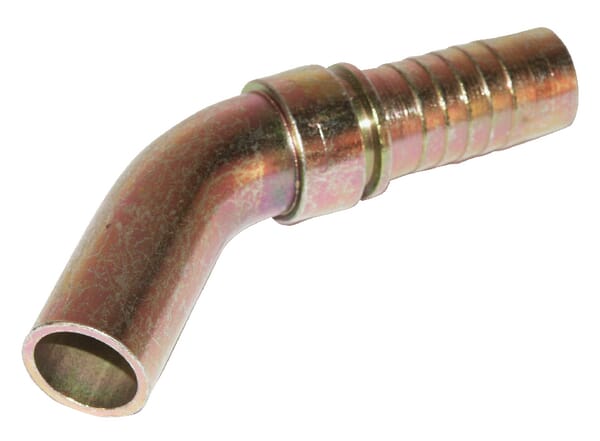

BPA000342936
Alfagomma Insert DN06-diameter 06mm-45° PT6645
£4.64 excl.
£5.57 incl.
In stock
Expected to ship on Tuesday 22 September

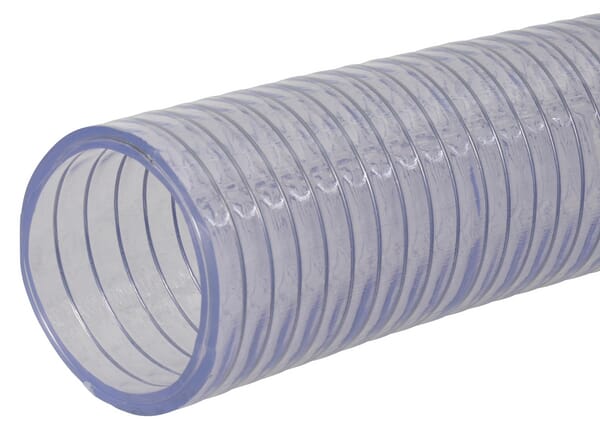

BPA000362057
Alfagomma Suction/pressure hose 40mm SL3040BI
£11.03 excl.
£13.24 incl.
In stock
Expected to ship on Tuesday 22 September

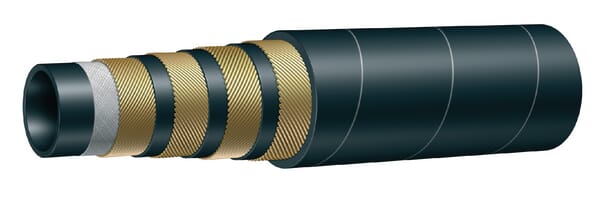

BPA000219563
Alfagomma Hose 4K-DN20 280 Bar ABTE ABTEV4KDN204S
£17.89 excl.
£21.47 incl.
In stock
Expected to ship on Tuesday 22 September

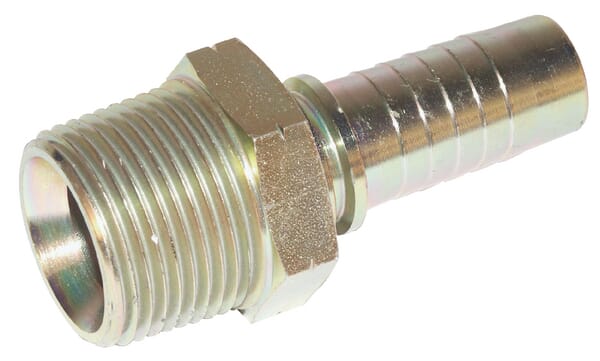

BPA000338400
