£91.23
excl. VAT
£109.48 incl. VAT
£109.48
incl. VAT
£91.23 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details

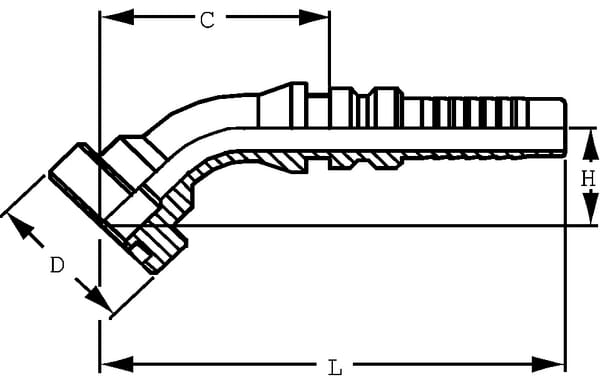

| CConnection centre to insert distance | 104.7 mm |
|---|---|
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 1 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 1-1/4 Inch |
| DConnection no 1 diameter | 32 mm |
| DFlange outside diameter | 47.6 mm |
| Flange standard pressure series | 6000 |
| Flange thickness | 9.53 mm |
| HConnection 2, centre to end distance | 34.5 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| Material | Steel |

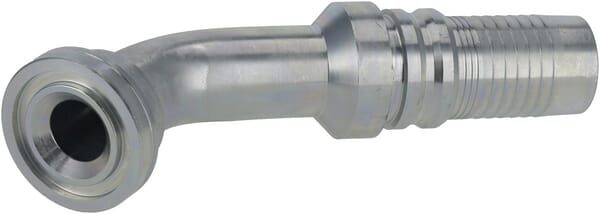

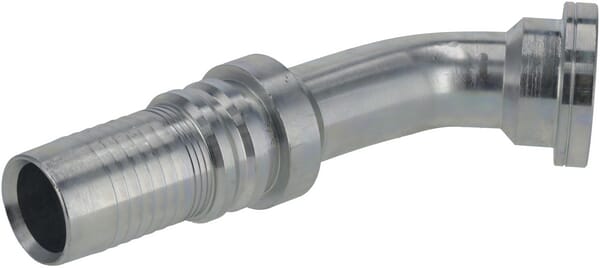

| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 45° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 664 g |
| Dimensions | 190 × 50 × 50 mm |
| Dangerous goods | No |
You might also like

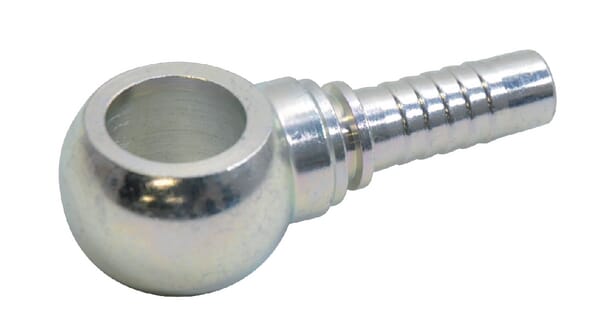

BPA000341336
Alfagomma Banjo insert DN13-diameter 1/2 BSP PQB138
£6.25 excl.
£7.50 incl.
In stock
Expected to ship on Tuesday 22 September

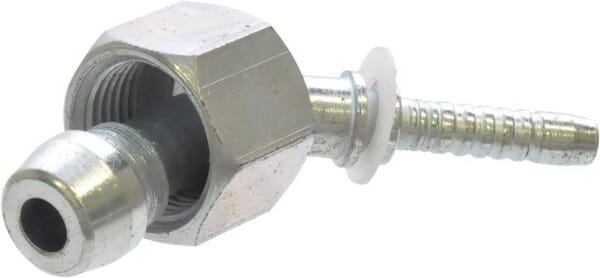

BPA000343934
Alfagomma Insert DN06-M20x1,5-gaz-45° PGF62045
£9.51 excl.
£11.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247938
Alfagomma SAE hose 100-R7 5/16 twin CR788A
£12.43 excl.
£14.92 incl.
Backorder available
Usually ships within 3–8 weeks

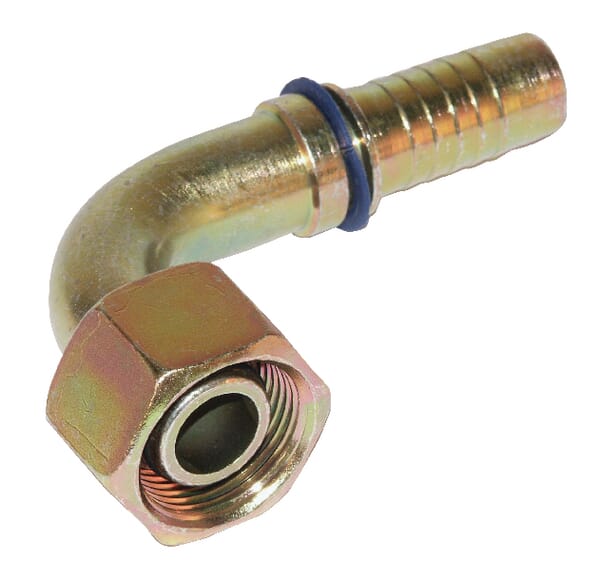

BPA000344202
Alfagomma Insert DN20-M30x2,0-20S-90° PGSO203090
£13.39 excl.
£16.07 incl.
In stock
Expected to ship on Tuesday 22 September

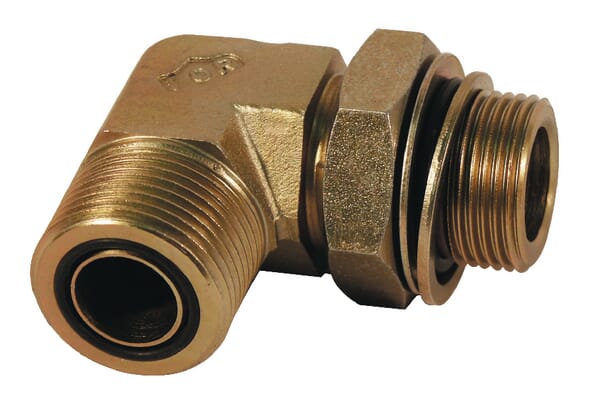

BPA000299155
Alfagomma Elbow 1.3/16 ORFS x 3/4 BSP KIOB1912
£26.17 excl.
£31.40 incl.
In stock
Expected to ship on Tuesday 22 September

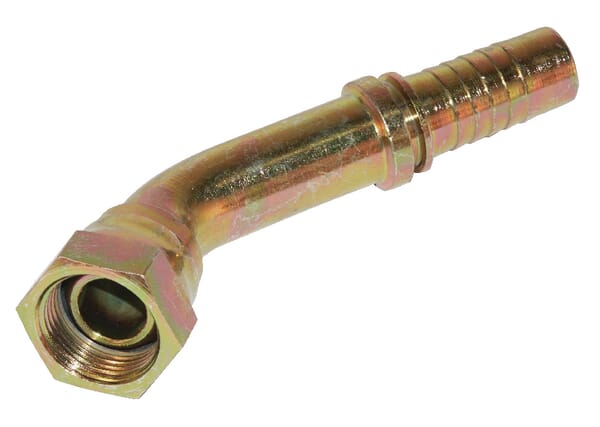

BPA000343915
