£85.37
excl. VAT
£102.44 incl. VAT
£102.44
incl. VAT
£85.37 excl. VAT
In stock
Expected to ship on Tuesday 22 September

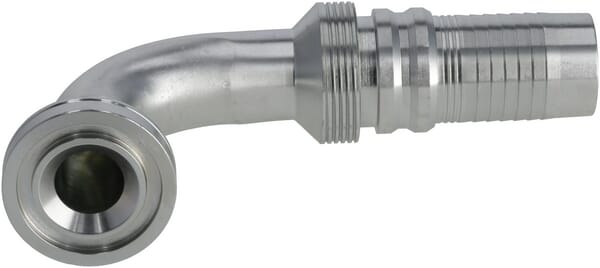

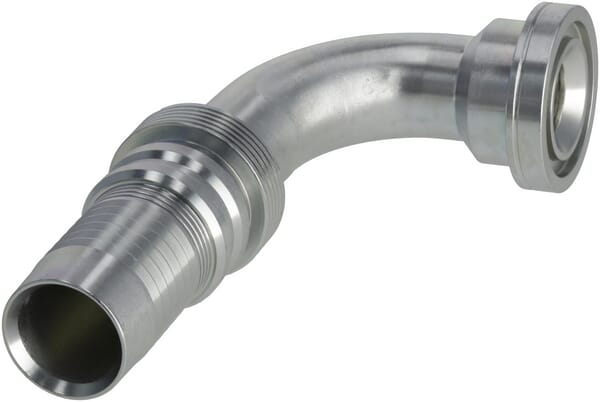

Product details
| Benefits | Press-fitting with heavy-duty anti-slip protection |
|---|---|
| CConnection centre to insert distance | 91 mm |
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 1 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 1-1/4 Inch |
| DFlange outside diameter | 47.6 mm |
| Flange standard pressure series | 6000 |
| Flange thickness | 9.53 mm |
| HConnection 2, centre to end distance | 88.2 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| LConnection no 1 center to end distance | 88 mm |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
AFH616

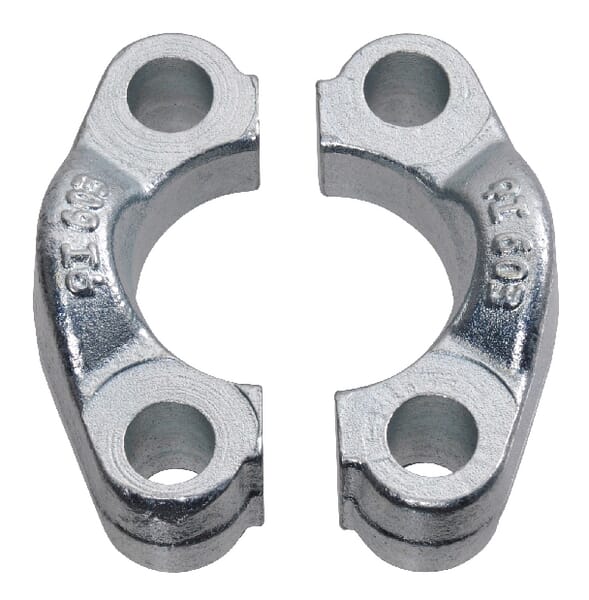

Oleo Tecnica SAE split flange 6000-1 AFH616
£7.93 excl.
£9.52 incl.
OR329235390P010
Kramp O-ring 32.92x3.53mm 90 shore 10x OR329235390P010
£2.38 excl.
£2.86 incl.
OVP3106
Hallite Seal ring SAE 1 OVP3106
£2.21 excl.
£2.65 incl.

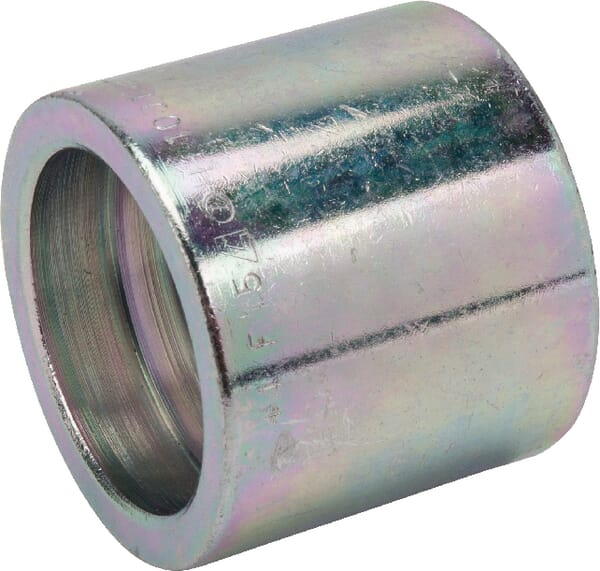

SFAH432
Alfagomma Ferrule DN32 Interlock SFAH432
£16.10 excl.
£19.32 incl.
SFAH4632

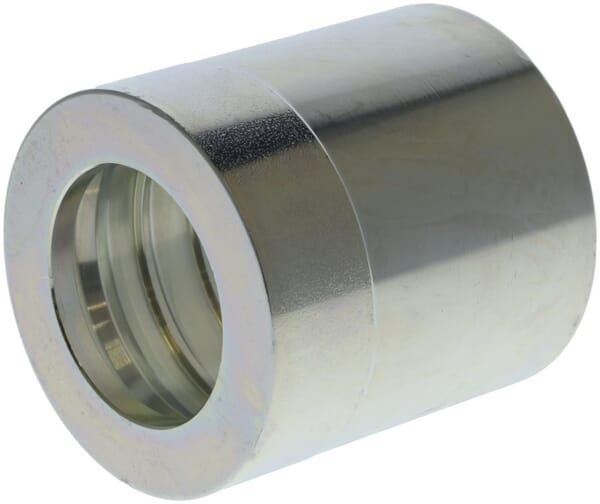

Alfagomma Ferrule DN32 Interlock SFAH4632
£26.13 excl.
£31.36 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 701 g |
| Dimensions | 175 × 95 × 50 mm |
| Dangerous goods | No |
You might also like

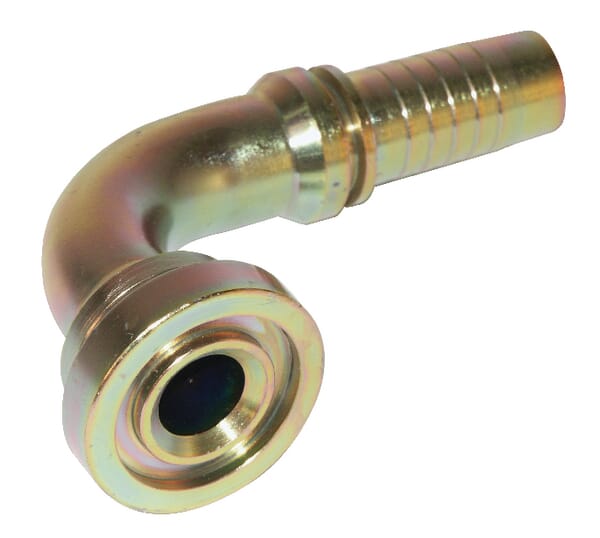

BPA000343831
Alfagomma Insert with flange DN20-diameter 47.6mm-90° PFS201690
£25.62 excl.
£30.74 incl.
In stock
Expected to ship on Tuesday 22 September

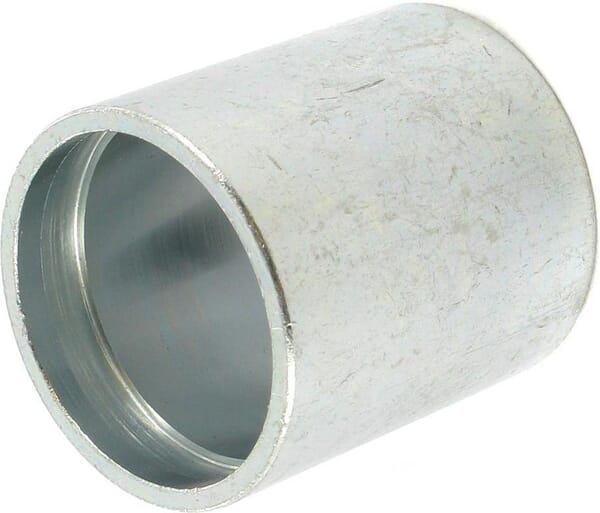

BPA000358439
Alfagomma Ferrule diameter 25x42mm DN25 chromium-plated SFA95C25
£10.76 excl.
£12.91 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000344093
Alfagomma Insert DN06-M12x1.5-6L-90° PGLO61290
£6.17 excl.
£7.40 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000251407
Alfagomma Insert F NS-DN25-1.7/16 ORFS 45 DAVNS252345G2
£27.58 excl.
£33.10 incl.
In stock
Expected to ship on Tuesday 22 September

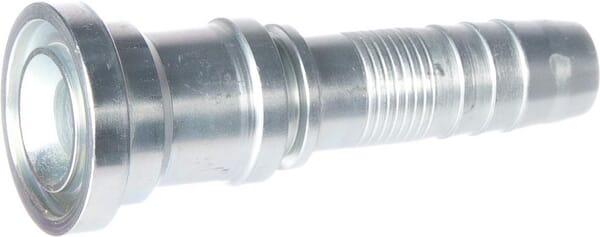

BPA000358611
Alfagomma Insert NS-DN25-flange diameter 50.8 SFLNS2520G2
£20.94 excl.
£25.13 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000349122

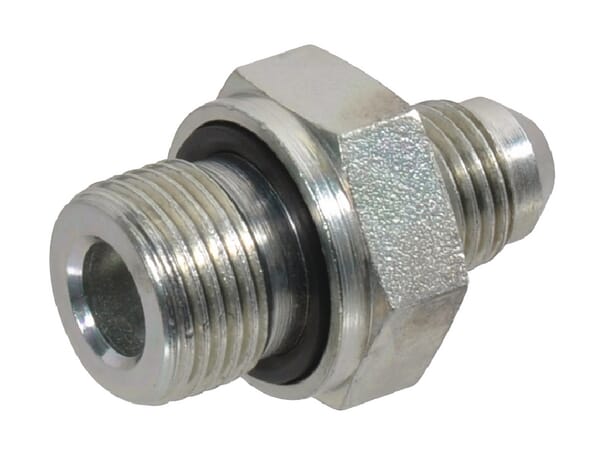

Alfagomma Male stud 7/16 JIC x 1/2 BSP RIB0708WD
£5.86 excl.
£7.03 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
Free shipping

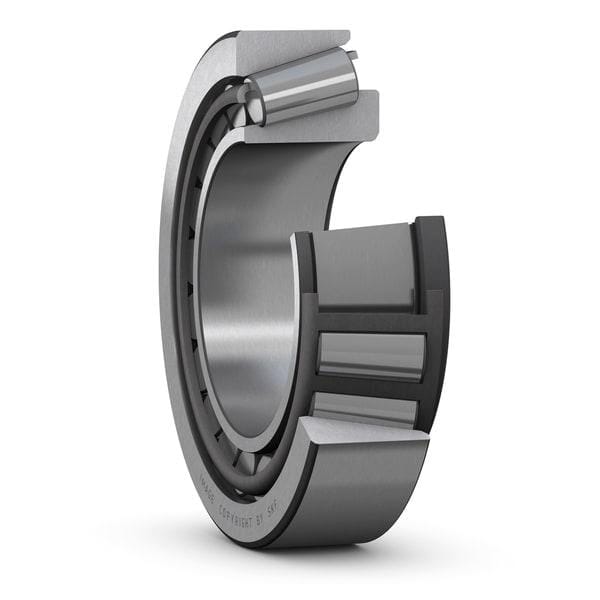

BPA000082463
SKF Tapered roller bearing 120x260x59.5mm 30324J2
£1,732.02 excl.
£2,078.42 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000358008
Kramp Sprocket Simplex 30 teeth 3/4" chain 12 B-1 for taperlock bush 2517 SE3430TL
£30.38 excl.
£36.46 incl.
In stock
Expected to ship on Tuesday 22 September

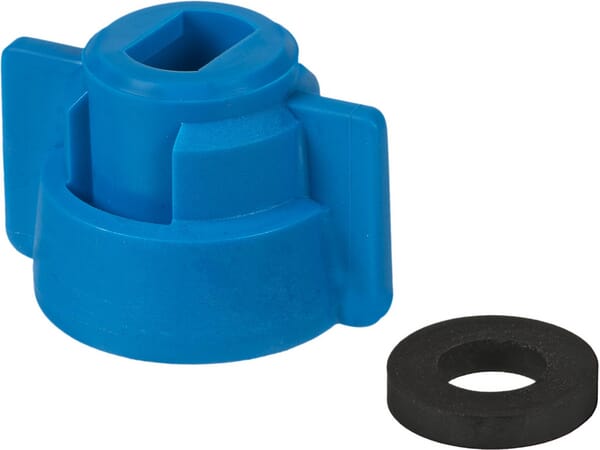

BPA000188584
GEOline Nozzle cap, bayonet, SW11, blue, with gasket, 8253027P025
£0.63 excl.
£0.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000084220
Corteco Seal TB 46x65x13 NBR 3058107R92N
£2.80 excl.
£3.36 incl.
In stock
Expected to ship on Tuesday 22 September

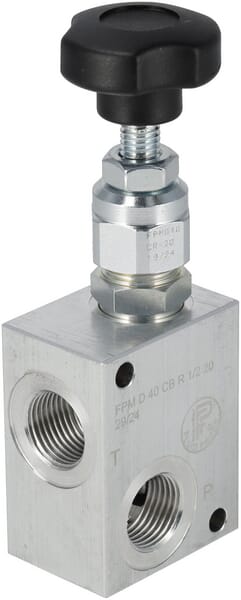

BPA000279486
FluidPress Relief Valve FPM D 40 CB R 1/2 20 FPMD40CBR1220
£80.33 excl.
£96.40 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000355359
Kramp Loader tine, straight, double T section 36x1100mm, pointed tip with M22x1.5mm nut, black RT1KR
£25.40 excl.
£30.48 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000211321
Kverneland Wheel 320/60-12Tt T421 Cpl W A133316030
£1,506.35 excl.
£1,807.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000309731
Kramp 9" carbon steel crimp pliers, with 5 crimp dies LAT2000ASS3KR
£175.30 excl.
£210.36 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000077317
Aspöck Rear light LH rectangular, 24V, red/transparent/amber, bolt on, Bayonet 7-pin, Europoint by 255000507
£104.00 excl.
£124.80 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000273039

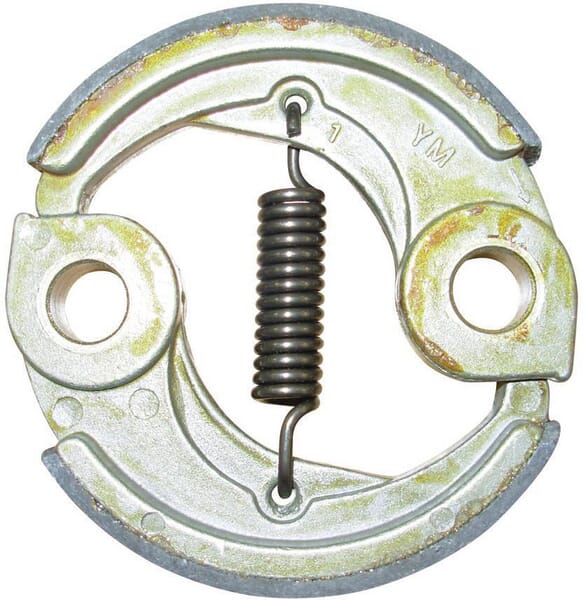

Kramp Centrifugal clutch Kawasaki FGP456761
£11.75 excl.
£14.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000271224

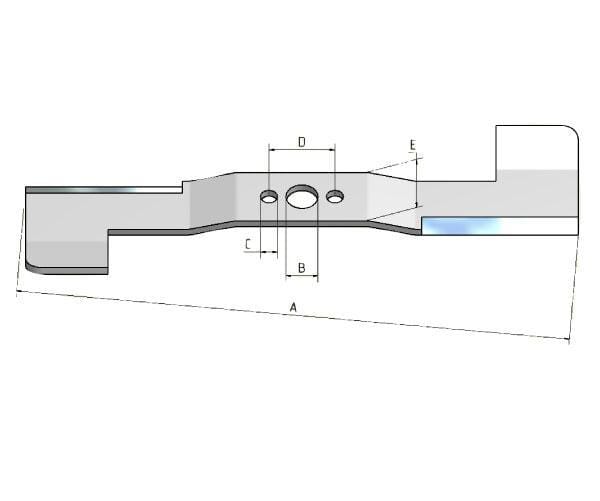

Non Original Blade L: 620mm/24", round hole: diameter 16 suitable for Exmark FGP013012
