£53.23
excl. VAT
£63.88 incl. VAT
£63.88
incl. VAT
£53.23 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Benefits | Press-fitting with heavy-duty anti-slip protection |
|---|---|
| CConnection centre to insert distance | 88.2 mm |
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 1-1/4 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 1-1/4 Inch |
| DFlange outside diameter | 54 mm |
| Flange standard pressure series | 6 |
| Flange thickness | 10.29 mm |
| HConnection 2, centre to end distance | 185 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1571 g |
| Dimensions | 215 × 190 × 60 mm |
| Dangerous goods | No |
You might also like

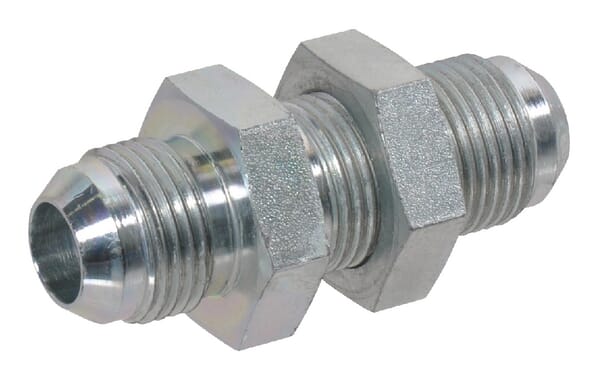

BPA000350202
Alfagomma Bulkhead adaptor 7/16 JIC RS07
£5.66 excl.
£6.79 incl.
In stock
Expected to ship on Friday 18 September
BPA000344017
Alfagomma Insert DN13-M22x1.5-15L PGLO1322
£2.93 excl.
£3.52 incl.
In stock
Expected to ship on Friday 18 September

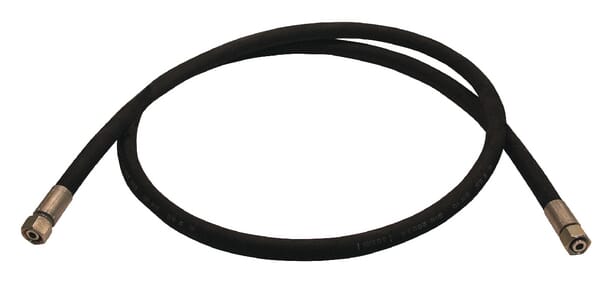

BPA000252894
Alfagomma Hydraulic hose DN10 2800mm DKLO102800
£42.69 excl.
£51.23 incl.
In stock
Expected to ship on Friday 18 September
BPA000252988
Alfagomma Hydraulic hose DN06 2200mm DKLO62200
£23.76 excl.
£28.51 incl.
Backorder available
Usually ships within 3–8 weeks

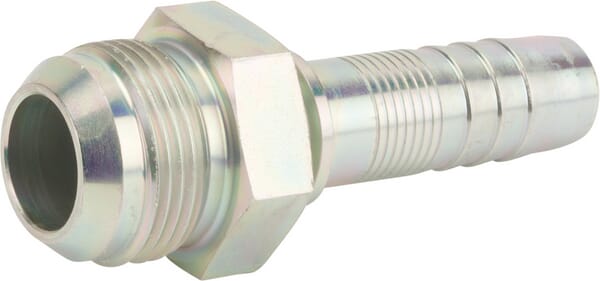

BPA000226178
Alfagomma Insert M NS DN40-1.7/8 UNF AGJNS4030G2
£35.77 excl.
£42.92 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000252994
Alfagomma Hydraulic hose DN06 2800mm DKLO62800
£27.48 excl.
£32.98 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed

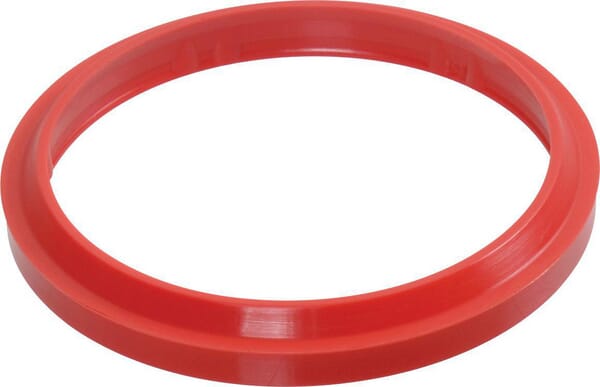

BPA000232642
